The below item has been discontinued. See above for similar products that we offer instead. We apologize for this inconvenience.

Chief FWPVB or FWPVS Small Pitch or Pivot Wall Mount (10-32")

Be the first to review this product
Product ID: 16793
Recommended Accessories
List Price: $102.00
Our Price: $64.80
Shipping: $5.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Chief FWPVB or FWPVS Small (10-32") Flat Panel Pitch or Pivot Wall Mount



General Information



Image of Warranty and Returns

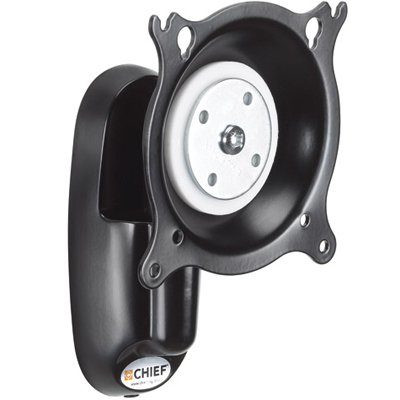

Chief FWPV Small (10-32") Flat Panel Pitch or Pivot Wall Mount



Chief FWPV Small (10-32") Flat Panel Pitch or Pivot Wall Mount









Features of Chief FWPVS:



  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions and self-adjusts to securely hold different display weights.

  • Teardrop hole pattern makes mounting the screen quick and easy.

  • Independently adjustable tension at pivot points for customized control.

  • Portrait/landscape rotation 360°.

  • Quick, easy cable management.

  • Sleek, attractive design hides all hardware.

  • Ships assembled.

  • VESA 75 x 75mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays).







Technical Drawing of Chief FWPVB Small Pitch/Pivot Wall Mount



Technical Drawing of Chief FWPVB Small Pitch/Pivot Wall Mount









Description of Chief FWPVS or FWPVB:



Easily attaches flat panel monitors and TVs to the wall. Also provides smooth pivot and tilt adjustments for different viewing angles and ergonomic needs.

  • Ergonomic solution for the home or office providing excellent adjustability.

  • Folds in close to the wall for a low-profile appearance.







Specifications of Chief FWPVB:



Certifications:

UL Listed

Color:

Black, Silver

Minimum Depth:

2.95" (74.9mm)

Mounting Pattern (Universal Versions):

75 x 75mm,100 x 100mm, 200 x 100mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

7.3" x 4.7" x 2.9" (184 x 119 x 75mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15°, - 15°

Typical Screen Sizes:

10 - 32"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

40 lbs (18.1kg)







Literature (Please open the following documents for more technical information)




Chief FWPVB Small (10-32") Flat Panel Pitch/Pivot Wall Mount - Installation Assembly

- pdf

Chief FWPVS Small (10-32") Flat Panel Pitch/Pivot Wall Mount - Technical Drawing

- pdf







Chief Logo



Hyperlink of all Chief products



Model FWPVB, FWPVS
Manufacturer Chief Mounts
Part Number FWPVB, FWPVS
Color Black, Silver
Minimum Depth 2.95" (74.9 mm)
Mounting Pattern 75 x 75 mm ,100 x 100 mm, 200 x 100 mm
Overall Dimensions (H x W x D) 7.3" x 4.7" x 2.9" (184 x 119 x 75 mm)
Tilt + 15 degree, - 15 degree
Screen Size 10 - 32 in
Weight Capacity 40 lbs (18.1 kg)
