Chief PDC2000B Large Dual Ceiling Mount (without interface)

Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately.
Be the first to review this product
Product ID: 16799
Options
List Price: $621.00
Our Price: $453.60
You Save: $167.40
Shipping: $31.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart

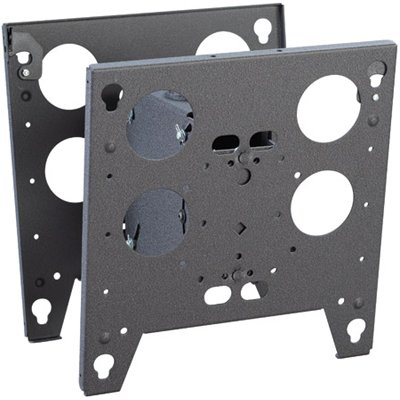

Chief PDC2000B Large (42"-71") Flat Panel Dual Ceiling Mount (without interface)

Description

Securely hold flat panel TVs back-to back in either portrait or landscape mode.

  • Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements



Technical Drawing

Technical Drawing of Chief PDC2000B Large Dual Ceiling Mount



Specifications

Certifications

TV Certified, UL Listed

Color

Black

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

17.1" x 16.3" x 11.8" (434 x 413 x 300mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

39.25 lbs

Tilt

+ 5°, - 25°

Overall Dimensions (H x W x D)

42 - 71"

Weight Capacity

200 lbs (90.7kg)



Features

  • Gravity-centered axis point; tilt locks at preferred angle
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Cables can be routed through the mount for a clean appearance
Model PDC2000B
Manufacturer Chief Mounts
Part Number PDC2000B
Color Black
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions (H x W x D) 17.1" x 16.3" x 11.8" (434 x 413 x 300mm)
Tilt + 5 degree, - 25 degree
Weight Capacity 200 lbs (90.7kg)
Screen Size 42 - 71 in
Shipping Weight 39.25 lbs
