$313.00

Chief TPS2000B Large Fixed Truss & Pole Mount- without interface

Clamps TPK for different size poles and truss work are required and must be ordered separately.
Product ID 16803
Chief TPS2000B Large Fixed Truss & Pole Mount- without interface
Chief TPS2000B Large Fixed Truss & Pole Mount- without interface

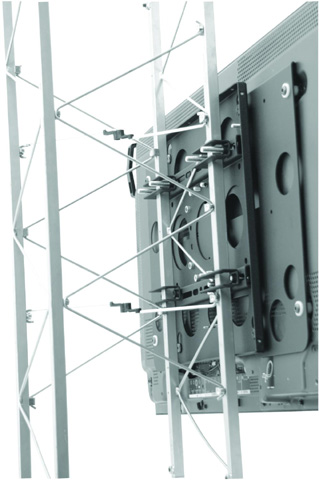

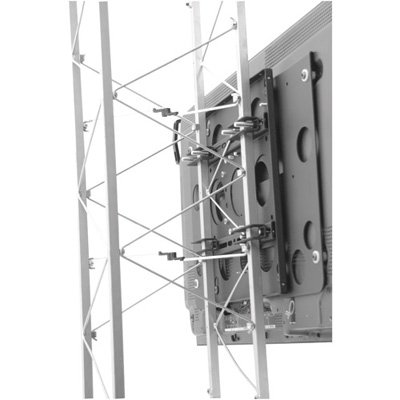

Chief TPS-2000B Large (42"-71") Fixed Truss and Pole Mount (without interface)

Description

Quick, easy and versatile, the Truss/Pole Static Mounts, Pole Tilt-Adjustable Mounts and Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.

  • Clamps for different size poles and truss work are required and must be ordered separately



Technical Drawing

Technical Drawing of Chief TPS2000B Large Fixed truss and Pole Mount



Specifications

Color

Black

Minimum Depth

1.08" (27.4mm)

Mounting Pattern Compatibility (Universal Versions)

200 x 200mm - 862 x 517mm

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

16.2" x 17.1" x 1.1" (412 x 433 x 27mm)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

15.00 lbs

Typical Screen Sizes

42 - 71"

Weight Capacity

150 lbs (68.kg)



Features

  • Install on vertical or horizontal truss
  • Attach displays in portrait or landscape orientation
  • TPS/TPP span most truss systems up to 14" (OD)
  • Truss/Pole clamps fit a wide variety of truss and pole dimensions
  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
  • Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
  • Integrated security allows display to be locked to mount by adding a padlock
  • Compatible with TPK clamp accessories. See Accessory list below
  • TPSU universal version available which includes universal PSBUB interface. TPS2000B is available but must order TPS2000B and PSBXXXX custom or universal interface separately
Model TPS2000B
Manufacturer Chief Mounts
Part Number TPS2000B
UPC 841872044958
Color Black
Minimum Depth 1.08" (27.4mm)
Mounting Pattern 200 x 200mm - 862 x 517mm
Overall Dimensions 16.2" x 17.1" x 1.1" (412 x 433 x 27mm)
Screen Size 42 - 71 in
Weight Capacity 150 lbs (68.kg)
Shipping Weight 15.00 lbs
