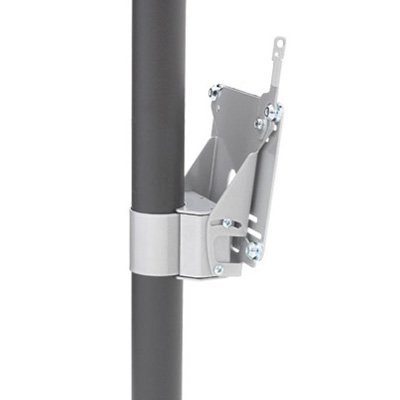

Chief FSP4101B or FSP4101S Small (10" - 30") Single Display Pole Mount - Pole not included

Pole Diameter Range: 1.5 - 2" (38 - 51mm).
Chief FSP4101B or FSP4101S Small (10" - 30") Single Display Pole Mount - Pole not included
click image to enlarge
This product has the following options available:
List Price: $219.00
Our Price: $156.00
You Save: $63.00
Shipping: $0.00 *  - Free Ground Shipping
* applies to Contiguous United States

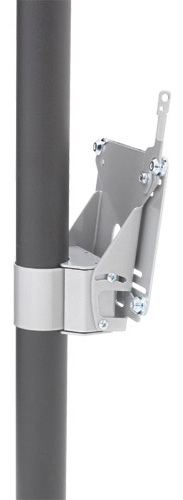

Chief FSP4101B or FSP4101S Small (10"-30") Single Display Pole Mount (Pole not included)



Chief FSP4101B or FDP4101S Small (10"-30") Single Display Pole Mount









Features of Chief FSP 4101:



  • Quick installation.

  • Easy tilt and yaw adjustments for viewing flexibility.

  • Screen tilt can be set for touch screen use.

  • Display installs in portrait or landscape views..

  • Universal clamp attaches to any 1.5-2" (38-51mm) outer diameter pole.

  • Includes pole clamp and interface brackets.

  • Exclusive Q-Latch Mounting System secures display with a lockable latch.

  • VESA 75 x 75 mm and 100 x 100 mm compliant.

  • Note: Pole not included.






Technical Drawing of Chief FSB4101 VESA 200x100 mm or 100x100 mm Interface Bracket



Technical Drawing of Chief FSB4101 VESA 200x100 mm or 100x100 mm Interface Bracket









Description of Chief FSP-4101:



An innovative alternative to wall mounting, allowing you to attach a small flat panel TV, LCD or monitor to a pole.

  • Pole (not included) can be installed vertically or horizontally.







Specifications of Chief FSP4101:



Certifications:

 UL Listed

Color:

Black, Silver

Minimum Depth:

1.88" (47.8mm)

Mounting Pattern (Universal Versions):

100 x 100mm, 200 x 100mm

Number of Monitors:

1

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

6.9" x 5.6" x 3.8" (175 x 143 x 95mm)

Pole Diameter Range:

1.5 - 2" (38 - 51mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 10° , - 25°

Typical Screen Sizes:

10 - 30"

Weight Capacity:

45 lbs (20.4kg)







Literature (Please open the following documents for more technical information)




Chief FSP4101B or FSP4101S Small Single Display Pole Mount - Installation Assembly

- pdf
Chief FSB4101S or FSB4101B Small Flat Panel Interface Bracket - Technical Drawing

- pdf
Chief FSB4101B or FSB4101S Small Flat Panel Interface Bracket - Installation Assembly

- pdf
