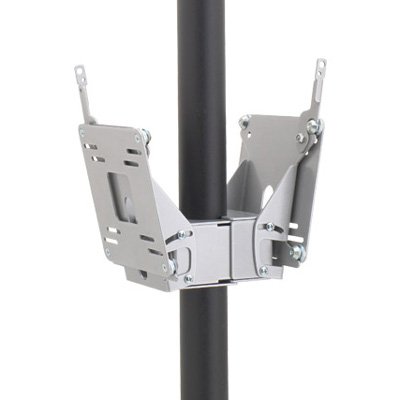

Chief FDP4101B or FDP4101S Small Dual Display Pole Mount

Pole Diameter Range: 1.5" - 2" (38 - 51mm). Pole not included.
Chief FDP4101B or FDP4101S Small Dual Display Pole Mount click image to enlarge
This product has the following options available:
List Price: 269.00
Our Price: 197.60
You Save: $71.40
Shipping: 0.00 *  - Free Ground Shipping
* applies to Contiguous United States

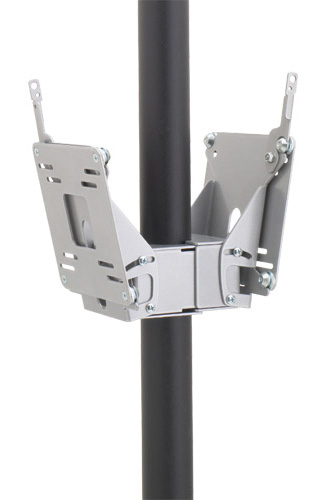

Chief FDP4101B or FDP4101S Small (10"-30") Dual Display Pole Mount (Pole not included)


Chief FDP4101B or FDP4101S Small (10"-30") Dual Display Pole Mount









Features of Chief FDP 4101:



  • Quick installation.

  • Pole can be vertical or horizontal. Pole not included.

  • Easy tilt and yaw adjustments for viewing flexibility.

  • Screen tilt can be set for touch screen use.

  • Display installs in portrait or landscape views..

  • Universal clamp attaches to any 1.5-2" (38-51mm) outer diameter pole.

  • Includes pole clamp and interface brackets.

  • Exclusive Q-Latch Mounting System secures display with a lockable latch.

  • VESA 75 x 75 mm and 100 x 100 mm compliant.







Technical Drawing of Chief FSB4101 VESA 200x100 mm or 100x100 mm Interface Bracket



Technical Drawing of Chief FSB4101 VESA 200x100 mm or 100x100 mm Interface Bracket









Description of Chief FDP-4101:



This pole mount installs 2 displays back-to-back and attaches to any 1.5-2" (38 - 51mm) outer diameter pole.

  • Displays can be installed in portrait or landscape orientation.

  • A great solution for viewing two small flat panel TVs, LCDs or monitors from opposing angles.

  • Ideal for digital display or retail signage.









Specifications of Chief FDP4101:



Certifications:

UL Listed

Color:

Black, Silver

Minimum Depth:

1.88" (47.8mm)

Mounting Pattern (Universal Versions):

100 x 100mm, 200 x 100mm

Number of Monitors:

2

Orientation:

Landscape

Overall Dimensions (H x W x D):

6.9" x 5.6" x 3.8" (175 x 143 x 95mm)

Pole Diameter Range:

1.5 - 2" (38 - 51mm)

Post-Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 10° , - 25°

Typical Screen Sizes:

10 - 30"

Weight Capacity:

45 lbs (20.4kg)







Literature (Please open the following documents for more technical information)




Chief FDP4101B or FDP4101S Small Dual Display Pole Mount - Installation Assembly

- pdf

Chief FSB4101S or FSB4101B Small Flat Panel Interface Bracket - Technical Drawing

- pdf

Chief FSB4101B or FSB4101S Small Flat Panel Interface Bracket - Installation Assembly

- pdf
