We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

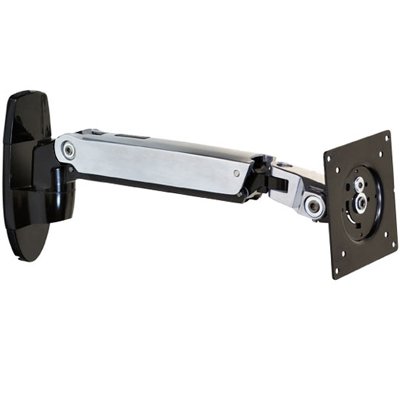

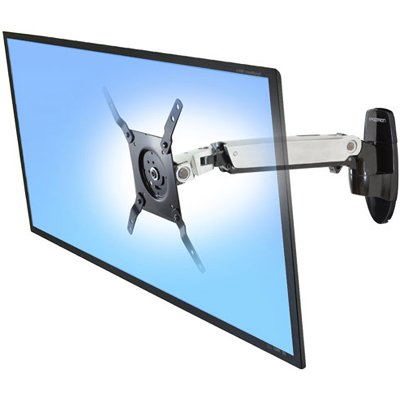

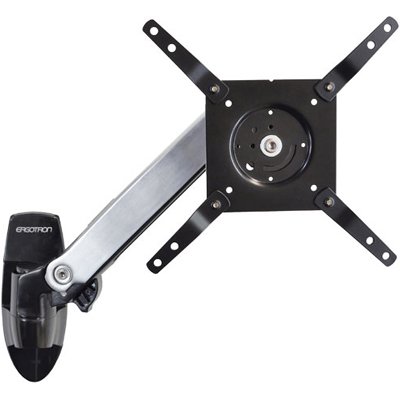

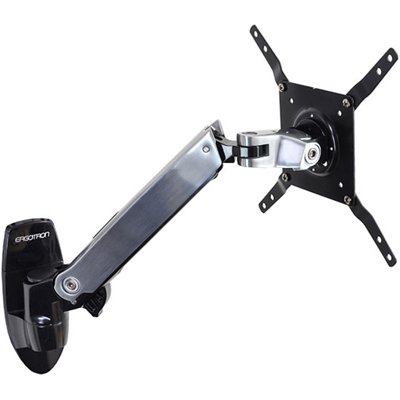

Ergotron 45-299-026 Interactive Arm, LD

**Special order item, Minimum Qty order of 500 required**

LCD Size: 19" - 32". Weight Capacity: 7-20 lbs (3.2–9.1 kg).
Be the first to review this product
Product ID: 16878
Recommended Accessories
Our Price: $149.00  Minimum Qty of 500 required
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Don’t just sit and watch your TV - get up and interact with it. Ergotron 45-299-026 is a affordable interactive TV mount that is designed to accommodate most active TV positioning needs of today and tomorrow.

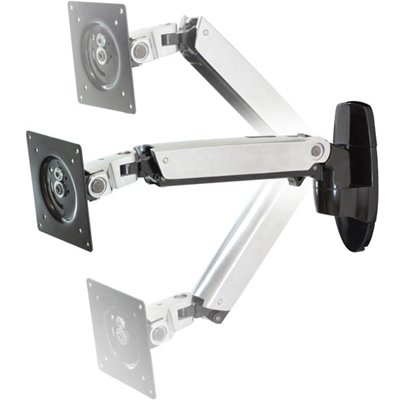

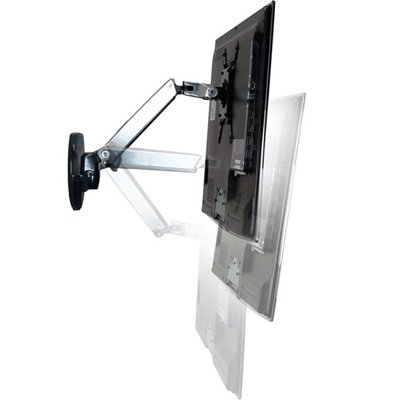

Lift, swing or turn your TV/display. Position the screen to relieve eye, neck and back strain. Equipped with patented Constant Force Technology, the arm provides fluid, light-touch adjustments for effortless TV/display movement.



Technical Drawing

Technical drawing for Ergotron Interactive TV Arm, LD



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

19"-32" 7-20 lbs

3.2-9.1 kg

13"

33 cm

75° 180° 360° P/L MIS-D/E/F



Product Information

Part Number:

45-299-026

Description:

Interactive Arm, LD (polished aluminum)

Includes:
  • Arm
  • Wall mount bracket
  • VESA adapter brackets
  • Complete hardware kit

Tilt:

Tilts forward 5°, tilts back 70°.

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm)

Shipping Dimensions:

17.5" x 7.75" x 6.5" (445 x 193 x 165 mm)

Shipping Weight:

6 lbs (2.7 kg)

Warranty:

Five (5) years



Benefits

  • Patented Constant Force technology enables light-touch adjustments without knobs or levers.
  • Extends 16.6" (42 cm) from wall when in use and can be fully retracted to 3.9" (10 cm) when not in use.

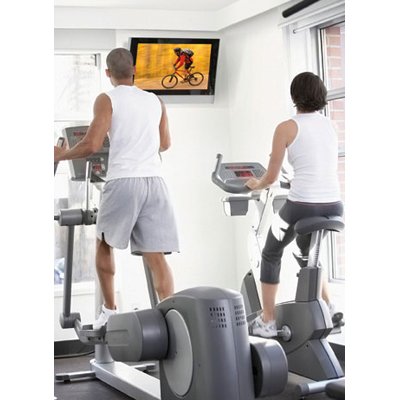

  • The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more.
  • Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions.
  • Improves ergonomic viewing for TVs/displays mounted high on the wall.
  • Constructed from polished aluminum and black trim for maximum strength and bold aesthetics.
  • Tilt and pan for maximum viewing flexibility.
  • Screen can be rotated 360º for portrait or landscape viewing.
  • Cable management clips on the underside of the arm route and hide wires.
  • Easy to use: simple installation and effortless operation.
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment.
Model 45-299-026
Manufacturer Ergotron
Part Number 45-299-026
Screen Size 19 - 32 in
Weight Capacity 7-20 lbs (3.2-9.1 kg)
Lift (33 cm) 13 in
Tilt Forward 5 degree, back 70 degree
Pan 180 degree
Rotation (P/L) 360 degree
Shipping Dimensions 17.5" x 7.75" x 6.5" (445 x 193 x 165 mm)
Shipping Weight 6 lbs (2.7 kg)
Warranty Five (5) years
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm)
Color Polished aluminum
Extend/Retract Range Extends 16.6" (42 cm) from wall when in use and can be fully retracted to 3.9" (10 cm) when not in use

Be the first to review this product

Ergotron 45-299-026 Interactive Arm, LD
