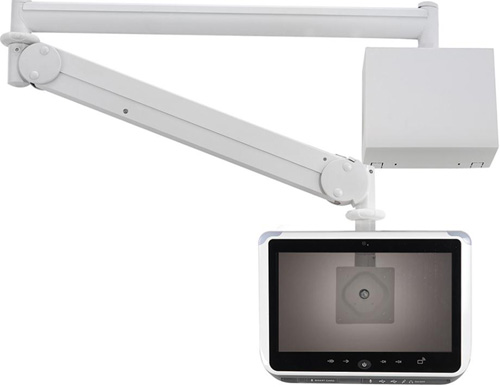

Cotytech MW-M13WB Long Reach Wall Mount LCD Arm (up to 13.2 lbs)

Be the first to review this product
Product ID: 16882
List Price: $912.59
Our Price: $825.54
You Save: $87.05
Shipping: $58.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

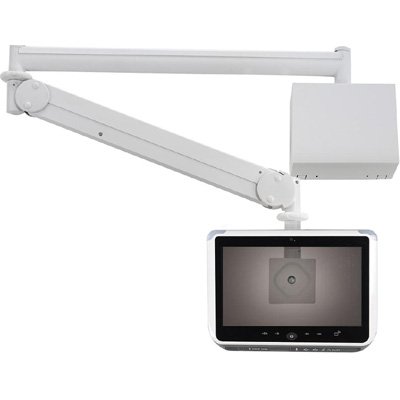

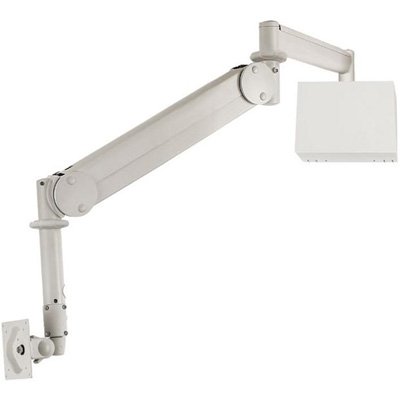

Cotytech MW M13WB Long Reach (up to 73" Extension) Wall Mount Medical LED Arm with Wall Box



Cotytech MW M13WB Long Reach (up to 73" Extension) Wall Mount Medical LED Arm with Wall Box









Description of Cotytech MW-M13WB:



Our new Long Reach LCD Monitor Arm MW-M13WB features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD wall mount provides maximum of 73” (185.7cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line etc.

The wall mount solution can be rotated 370° at arm, 270° at monitor end and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. It's ergonomic, space saving attributes and contemporary look make the LCD wall mount a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories.

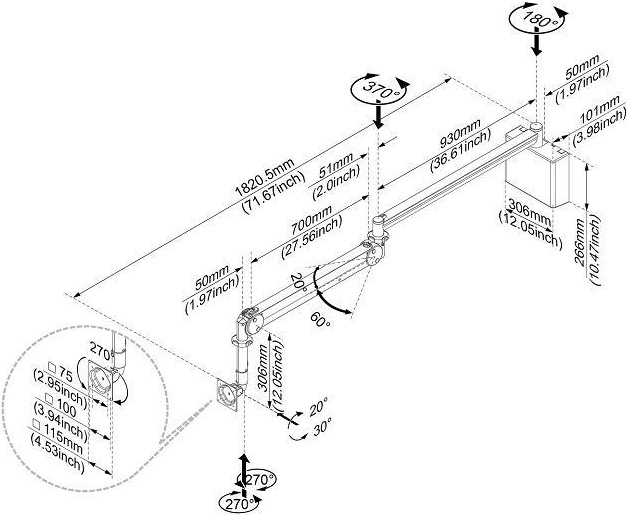

Technical Drawing for Cotytech MW M13WB Long Reach LCD Monitor Arm with Wall Box



Technical Drawing for Cotytech MW M13WB Long Reach LCD Monitor Arm With Wall Box









Product Specifications:



Weight Capacity:

Supports 2.2 - 13.2 lb (1 - 6 kg)

Tilt:

20°/- 35° (display) and 20°/- 60° (arm)

Maximum Extension:

73" (185.7cm)

Rotation:

370° (arm), 270° (display), 180° (wall)

Mounting Pattern:

VESA compliant: 75x75 to 100x100









Features of Cotytech MW-M13WB:



  • Long reach arm extends up to 73" with ease and smoothness.

  • Wall mount type for flat panel ranges 2.2 lb to 13.2 lb.

  • Built-in gas pneumatic spring design for extreme ease of operation and movements.

  • Instantly and effortlessly float flat screen from position to position.

  • Maximum adjustment rendered by tilting, swiveling and rotation.

  • The arm comes with two cables: Cat 5 (Ethernet) and a Power cable (does not seem to be standard) which are pre-installed in the arm. They cannot be removed, and different cables cannot be integrated inside of the arm.

  • Comes with Wall Box.

  • Sturdy construction made of aluminum alloy with outside plastic covers.

  • Easy installation and dis-installation.







Comparison Chart:



Model

Ceiling

Wall

Weight Capacity

Keyboard Holder

Monitor Back Cable Cover

Wall Box

MW-M13P

-

Yes

13.2 lbs

Optional

-

-

MW-M23P

-

Yes

13.2 lbs

Optional

Yes

-

MW-M13WB

-

Yes

13.2 lbs

Optional

-

Yes

MW-M15P

-

Yes

26.4 lbs

Optional

-

-

MW-M25P

-

Yes

26.4 lbs

Optional

Yes

-

MW-M15WB

-

Yes

26.4 lbs

Optional

-

Yes

MW-M23PK

-

Yes

13.2 lbs

Yes

Yes

-

MW-M23WB

-

Yes

13.2 lbs

Optional

Yes

Yes

MW-M23WBK

-

Yes

13.2 lbs

Yes

Yes

Yes

MW-M25PK

-

Yes

26.4 lbs

Yes

Yes

-

MW-M25WB

-

Yes

26.4 lbs

Optional

Yes

Yes

MW-M25WBK

-

Yes

26.4 lbs

Yes

Yes

Yes

CM-M13

Yes

-

13.2 lbs

Optional

-

N/A

CM-M23

Yes

-

13.2 lbs

Optional

Yes

N/A

CM-M23K

Yes

-

13.2 lbs

Yes

Yes

N/A

CM-M15

Yes

-

26.4 lbs

Optional

-

N/A

CM-M25

Yes

-

26.4 lbs

Optional

Yes

N/A

CM-M25K

Yes

-

26.4 lbs

Yes

Yes

N/A









Mounting Pattern of Cotytech MW-M13WB:



You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters.



VESA Mounting Pattern







Literature (Please open the following documents for more technical information)




Cotytech MW-M13WB Long Reach (up to 73") LCD Wall Mount Arm with Wall Box - Dimensions

- pdf

Cotytech MW-M13WB Long Reach LED Monitor Medical Arm with Wall Box - Installation Manual

- pdf

Cotytech Logo

Hyperlink of all Cotytech Products

Model MW-M13WB
Manufacturer Cotytech
Part Number MW-M13WB
Weight Capacity 2.2 - 13.2 lbs (1 - 6 kg)
Tilt (display) 20/-35 degree & (arm) 20/-60 degree
Maximum Extension 73" (185.7cm)
Rotation (arm) 370 degree; (display) 270 degree; (wall) 180 degree
Mounting Pattern VESA compliant: 75x75 to 100x100
