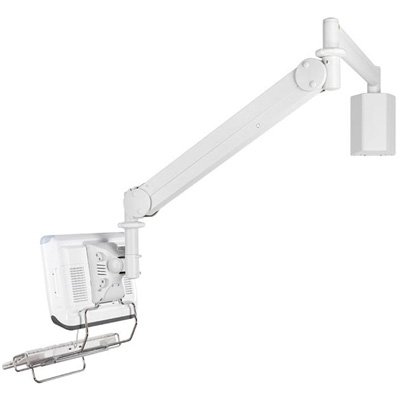

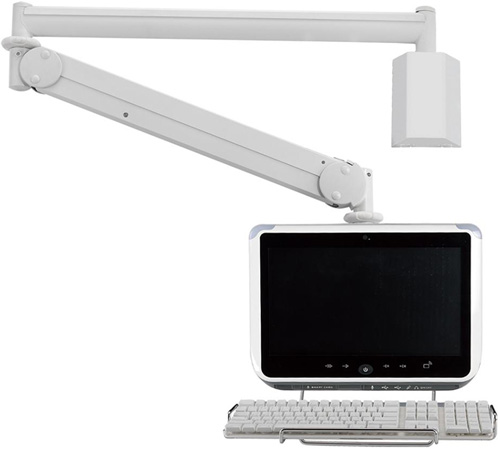

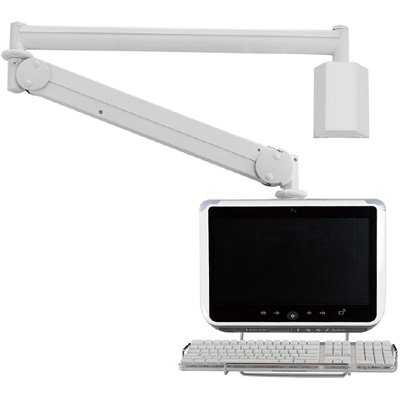

Cotytech MW M25PK Long Reach (up to 73" Extension) Wall Mount LED Medical Arm

|
|
|
Description of Cotytech MW-M25PK:
|
Our new Long Reach LCD Monitor Arm MW-M25PK features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD wall mount provides maximum of 73” (185.7cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line etc.
The wall mount solution can be rotated 370° at arm, 270° at monitor end and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. Handle design facilitates easy operation and movement. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. It's ergonomic, space saving attributes and contemporary look make the LCD wall mount a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories.
Please note that monitor is not included.
|
|
|

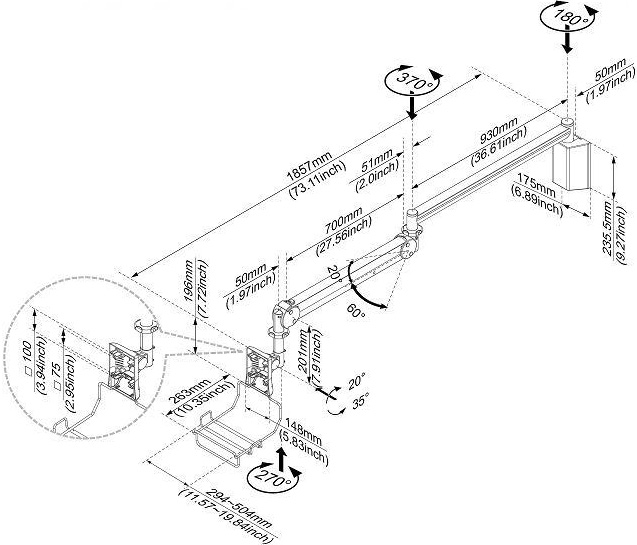

Technical Drawing for Cotytech MW M25PK Long Reach LCD Monitor Arm Wall Mount

|
|
|
Product Specifications:
Weight Capacity:
|
Supports 13.2 - 26.4 lb (6 - 12 kg)
|
Tilt:
|
20°/- 35° (display) and 20°/- 60° (arm)
|
Maximum Extension:
|
73" (185.7cm)
|
Rotation:
|
370° (arm), 270° (display), 180° (wall)
|
Mounting Pattern:
|
VESA compliant: 75x75 to 100x100
|
|
|
|
Features of Cotytech MW-M25PK:
|
|
|
|
|
|
|
|
|
|
|
|
|
Comparison Chart:
Model
|
Ceiling
|
Wall
|
Weight Capacity
|
Keyboard Holder
|
Monitor Back Cable Cover
|
Wall Box
|
MW-M13P
|
-
|
Yes
|
13.2 lbs
|
Optional
|
-
|
-
|
MW-M23P
|
-
|
Yes
|
13.2 lbs
|
Optional
|
Yes
|
-
|
MW-M13WB
|
-
|
Yes
|
13.2 lbs
|
Optional
|
-
|
Yes
|
MW-M15P
|
-
|
Yes
|
26.4 lbs
|
Optional
|
-
|
-
|
MW-M25P
|
-
|
Yes
|
26.4 lbs
|
Optional
|
Yes
|
-
|
MW-M15WB
|
-
|
Yes
|
26.4 lbs
|
Optional
|
-
|
Yes
|
MW-M23PK
|
-
|
Yes
|
13.2 lbs
|
Yes
|
Yes
|
-
|
MW-M23WB
|
-
|
Yes
|
13.2 lbs
|
Optional
|
Yes
|
Yes
|
MW-M23WBK
|
-
|
Yes
|
13.2 lbs
|
Yes
|
Yes
|
Yes
|
MW-M25PK
|
-
|
Yes
|
26.4 lbs
|
Yes
|
Yes
|
-
|
MW-M25WB
|
-
|
Yes
|
26.4 lbs
|
Optional
|
Yes
|
Yes
|
MW-M25WBK
|
-
|
Yes
|
26.4 lbs
|
Yes
|
Yes
|
Yes
|
CM-M13
|
Yes
|
-
|
13.2 lbs
|
Optional
|
-
|
N/A
|
CM-M23
|
Yes
|
-
|
13.2 lbs
|
Optional
|
Yes
|
N/A
|
CM-M23K
|
Yes
|
-
|
13.2 lbs
|
Yes
|
Yes
|
N/A
|
CM-M15
|
Yes
|
-
|
26.4 lbs
|
Optional
|
-
|
N/A
|
CM-M25
|
Yes
|
-
|
26.4 lbs
|
Optional
|
Yes
|
N/A
|
CM-M25K
|
Yes
|
-
|
26.4 lbs
|
Yes
|
Yes
|
N/A
|
|
|
|
Mounting Pattern of Cotytech MW-M25PK:
|
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters.

|
|
