Ergotron 24-260-026 WorkFit-A Single HD Monitor Sit-Stand Workstation

Be the first to review this product
Product ID: 16963
Recommended Accessories
Our Price: $379.00
Shipping: $56.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Animation of Ergotron WorkFit-A Single HD Workstation





Description

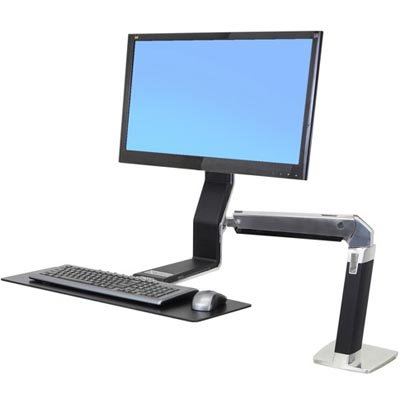

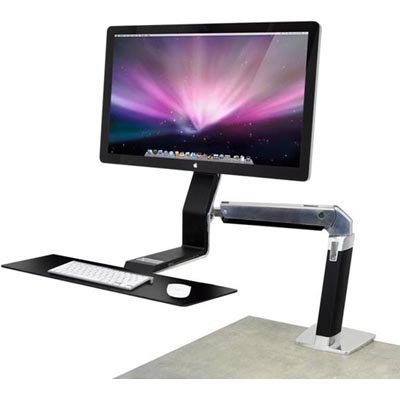

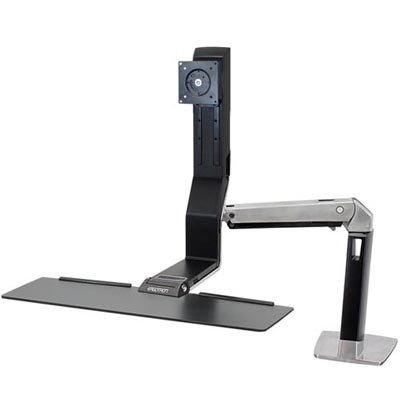

Ergotron 24260026 is ideal for corner workstations, the WorkFit-A clamps to the rear or side of most surfaces and enables an effortless sit-and-stand work style. Fold the keyboard up and swing the arm out of the way when you need your desk surface.

Change from a sitting to a standing position whenever you want. This height-adjustable workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.



Technical Drawing

Technical drawing for Ergotron 24-260-026 Single HD Sit-Stand Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 30" Up to 25 lbs

11.3 kg

20"

51 cm

30° 180° 360° P/L MIS-D



Product Information

Part Number:

24-260-026

Description:

WorkFit-A, Single HD LCD Monitor Sit-Stand Workstation (polished aluminum/black)

Weight Capacity:

Maximum total load on height-adjustment assembly ≤ 20 lbs (9.1 kg). LCD weight range = 5–15 lbs (2.3–6.8 kg), keyboard tray accessories ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg).

Desk Thickness:

Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick.

Arm Extend/ Retract Range:

Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted.

Cable Management:

  • Integrated cable management hides wires.
  • Cable management clips on the under side of the mount arm routes and hides wires.

Constant Force Technology:

Patented Constant Force (CF) lift-and-pivot motion technology

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm). To attach displays with a larger hole pattern, order the VESA Adaptor Bracket Kit (pt # 97-474), which will accommodate the following patterns: VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm & 400 x 200 mm).

Hardware Kit:

Includes complete hardware kit

Note:

  • Computer systems mounted on a WorkFit-A may require extra long power and video cables in order to span between standing and sitting heights.
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.

Shipping Dimensions:

37" x 21" x 11.5" (940 x 533 x 292 mm)

Shipping Weight:

46 lbs (20.9 kg)

Warranty:

Five (5) years



Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism.
  • Safe, easy-to-use - simple installation and effortless operation.
  • Easily and simultaneously lift keyboard and screen to proper height for unsurpassed ergonomic comfort.
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface.

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment.
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers.
  • Safe and neat routing of cables.
  • For HR/Risk Management and Company Cost Savings.

Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-260-026 Single HD LCD Monitor Workstation

 - pdf

Installation Manual - Ergotron 24260026 WorkFit-A Sit-Stand Workstation

 - pdf

Dimensional Illustrations - WorkFit-A Single HD Monitor Sit-Stand Desk Mount

 - pdf

WorkFit Flyer - Single LED Display Height Adjustable Workstation, HD

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-260-026
Manufacturer Ergotron
Part Number 24-260-026
Screen Size Up to 30 in
Weight Capacity Maxi total load on height-adjustment assembly ≤ 25 lbs. LCD weight range = 10–20 lbs, keyboard tray ≤ 2 lbs. For proper operation the total maxi weight when added together should not exceed 25 lbs. The mini total weight should not be less than 11 lbs.
Lift (51 cm) 20 in
Tilt 30 degree
Pan 180 degree
Rotation (P/L) 360 degree
Shipping Dimensions 37" x 21" x 11.5" (940 x 533 x 292 mm)
Shipping Weight 46 lbs (20.9 kg)
Warranty Five (5) years
Color Polished aluminum/Black
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (100 x 100 mm & 75 x 75 mm). To attach displays with a larger hole pattern, order the VESA Adaptor Bracket Kit (pt # 97-474), which will accommodate the following patterns: VESA FDMI, MIS-E, C (200 x 100 mm); VESA FDMI, MIS-F,
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick
Extend/Retract Range Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted
