Ergotron 24-257-026 WorkFit-A Dual Monitor Sit-Stand Workstation

Be the first to review this product
Product ID: 16964
Recommended Accessories
Our Price: $399.00
Shipping: $60.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

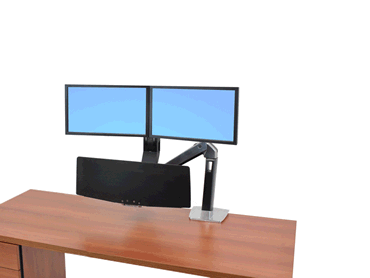

Animation of Ergotron Dual Monitor Workstation





Description

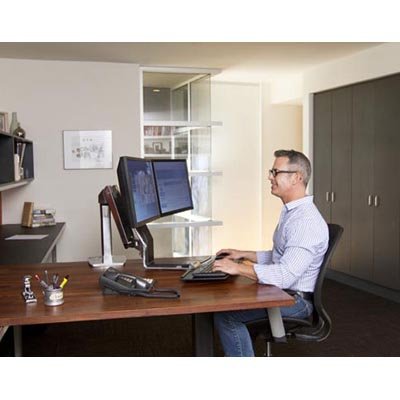

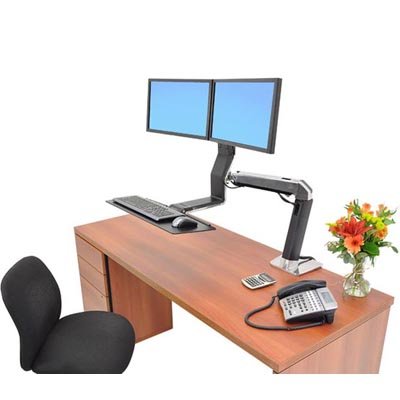

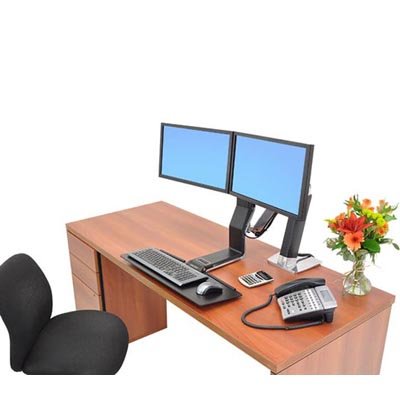

Ergotron 24257026 is ideal for corner workstations, the WorkFit-A clamps to the rear or side of most surfaces and enables an effortless sit-and-stand work style. Fold the keyboard up and swing the arm out of the way when you need your desk surface.

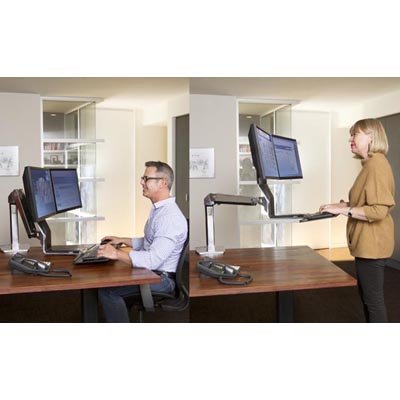

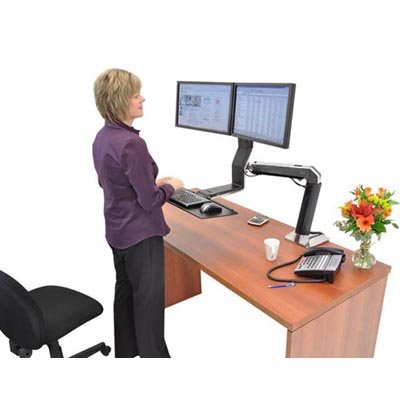

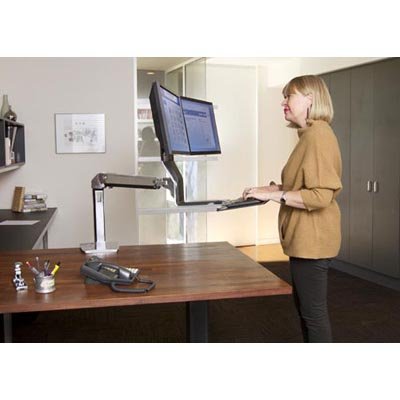

Change from a sitting to a standing position whenever you want. This height-adjustable workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

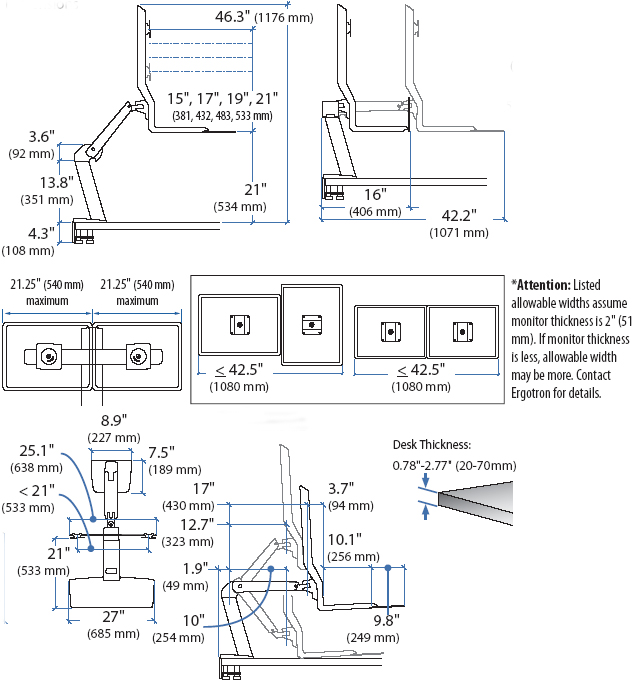

Technical Drawing

Technical drawing for Ergotron 24-257-026 WorkFit-A Sit-Stand Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22" Up to 25 lbs

11.3 kg

20"

51 cm

- 180° 360° P/L MIS-D



Product Information

Part Number:

24-257-026

Description:

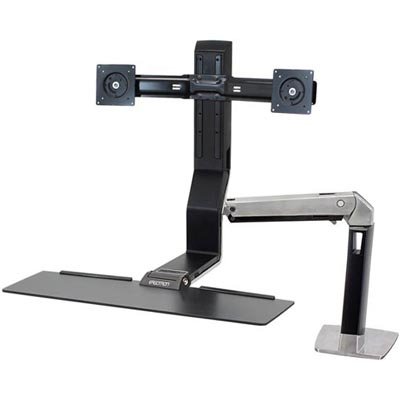

WorkFit-A, Dual Monitor Sit-Stand Workstation (polished aluminum/black)

Display Size:

Maximum outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness.

Weight Capacity:

Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCDs = 6–14 lbs (2.7–6.35 kg) each, LCDs combined = 9–20 lbs ( 4.1–9.1 kg), keyboard tray accessories ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg). The minimum total weight should not be less than 10 lbs (4.5 kg)

Desk Thickness:

Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick.

Arm Extend/ Retract Range:

Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted.

Cable Management:

  • Integrated cable management hides wires.
  • Cable management clips on the under side of the mount arm routes and hides wires.

Constant Force Technology:

Patented Constant Force (CF) lift-and-pivot motion technology

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)

Hardware Kit:

Includes complete hardware kit

Note:

  • Computer systems mounted on a WorkFit-A may require extra long power and video cables in order to span between standing and sitting heights.
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.

Shipping Dimensions:

37" x 21" x 11.5" (940 x 533 x 292 mm)

Shipping Weight:

48.5 lbs (22 kg)

Warranty:

Five (5) years



Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism.
  • Safe, easy-to-use - simple installation and effortless operation.
  • Easily and simultaneously lift keyboard and screens to proper height for unsurpassed ergonomic comfort.
  • Double your view and move it too! With two monitors you can save time by using multiple applications at once - eliminate toggling back and forth between documents and programs
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.

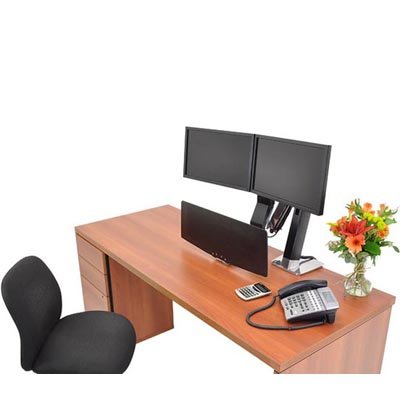

  • Fold keyboard up and swing arm and monitors out of the way when you need your desk surface.

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment.
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers.
  • Safe and neat routing of cables.
  • For HR/Risk Management and Company Cost Savings.

Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-257-026 Dual LCD Monitor Workstation

 - pdf

Installation Manual - Ergotron 24257026 WorkFit-A Sit-Stand Workstation

 - pdf

Dimensional Illustrations - WorkFit-A Dual Monitor Sit-Stand Desk Mount

 - pdf

WorkFit Flyer - Dual LED Display Height Adjustable Workstation

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-257-026
Manufacturer Ergotron
Part Number 24-257-026
Weight Capacity Maxi total load on height-adjustment assembly ≤ 25 lbs. LCDs=6–14 lbs each, LCDs combined=9–20 lbs, keyboard tray ≤ 2 lbs. For proper operation the total maxi wt when added together should not exceed 25 lb. The mini total wt should not be less than 10 lbs
Lift (51 cm) 20 in
Pan 180 degree
Rotation (P/L) 360 degree
Shipping Dimensions 37" x 21" x 11.5" (940 x 533 x 292 mm)
Shipping Weight 48.5 lbs (22 kg)
Warranty Five (5) years
Color Polished aluminum/Black
Monitor Size Maxi outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness.
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Extend/Retract Range Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick
