We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 24-274-026 WorkFit-A Single LD Monitor Sit-Stand Workstation with Worksurface

Be the first to review this product
Product ID: 16971
Recommended Accessories
Our Price: $479.00
Shipping: $57.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Animation of Ergotron WorkFit-A Single LD Workstation with Worksurface





Description

Ergotron 24274026 is ideal for corner workstations, the WorkFit-A clamps to the rear or side of most surfaces and enables an effortless sit-and-stand work style. Fold the keyboard up and swing the arm out of the way when you need your desk surface.

Change from a sitting to a standing position whenever you want. This height-adjustable workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

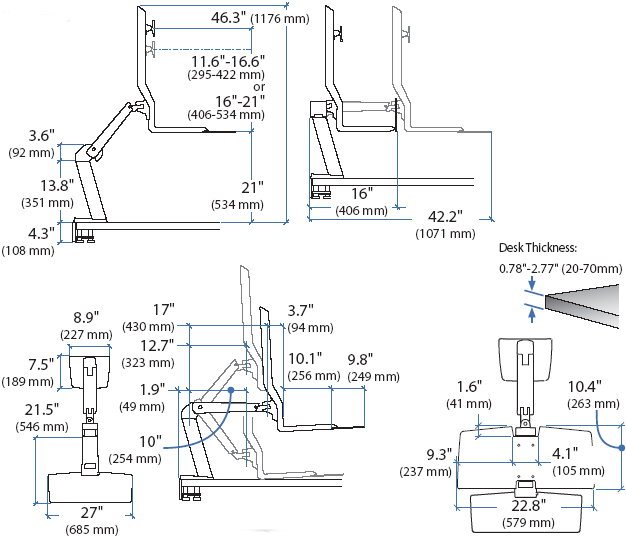

Technical Drawing

Technical drawing for Ergotron 24-274-026 Single LD Workstation with Worksurface



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24" Up to 20 lbs

9.1 kg

25"

64 cm

30° 180° 360° P/L MIS-D



Product Information

Part Number:

24-274-026

Description:

WorkFit-A, Single LD LCD Monitor Sit-Stand Workstation, with Worksurface (polished aluminum/black)

Weight Capacity:

Maximum total load on height-adjustment assembly ≤ 20 lbs (9.1 kg). LCD weight range = 5–15 lbs (2.3–6.8 kg), work surface (external weight) ≤ 5 lbs (2.3 kg), keyboard tray accessories ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg).

Lift Range:

LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently.

Desk Thickness:

Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick.

Worksurface Dimensions:

Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)

Arm Extend/ Retract Range:

Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted.

Cable Management:

  • Integrated cable management hides wires.
  • Cable management clips on the under side of the mount arm routes and hides wires.

Constant Force Technology:

Patented Constant Force (CF) lift-and-pivot motion technology

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)

Hardware Kit:

Includes complete hardware kit

Note:

  • Computer systems mounted on a WorkFit-A may require extra long power and video cables in order to span between standing and sitting heights.
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.

Shipping Dimensions:

37" x 21" x 11.5" (940 x 533 x 292 mm)

Shipping Weight:

47 lbs (21.4 kg)

Warranty:

Five (5) years



Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism .
  • Safe, easy-to-use - simple installation and effortless operation.
  • Easily and simultaneously lift keyboard and screen to proper height for unsurpassed ergonomic comfort.
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface.
  • Included worksurface provides ample space and quick access to a tablet computer, phone, cup of java or task-related items.

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment.
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers.
  • Safe and neat routing of cables.
  • For HR/Risk Management and Company Cost Savings.

Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-274-026 Single LD Workstation with Worksurface

 - pdf

Installation Manual - Ergotron 24274026 WorkFit-A Sit-Stand Workstation with Worksurface

 - pdf

Dimensional Illustrations - WorkFit-A Single LD Monitor Sit-Stand Worksurface Desk Mount

 - pdf

WorkFit Flyer - Single LCD Display Height Adjustable Worksurface Workstation, LD

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-274-026
Manufacturer Ergotron
Part Number 24-274-026
Screen Size Up to 24 in
Weight Capacity Maxi total load on height-adjustment assembly ≤20 lb. LCD wt range=5–15 lb, work surface (external wt)≤5 lb, keyboard tray≤2 lb. For proper operation the total maxi wt when added together should not exceed 20 lb. Mini total wt should not be less than 6 lb
Lift (64 cm) 25 in
Tilt 30 degree
Pan 180 degree
Rotation (P/L) 360 degree
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Shipping Dimensions 37" x 21" x 11.5" (940 x 533 x 292 mm)
Shipping Weight 47 lbs (21.4 kg)
Warranty Five (5) years
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick
Extend/Retract Range Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted
Color Polished aluminum/Black
