Ergotron 24-272-026 WorkFit-A Dual Monitor Sit-Stand Workstation with Worksurface

Be the first to review this product
Product ID: 16973
Recommended Accessories
Our Price: $499.00
Shipping: $72.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

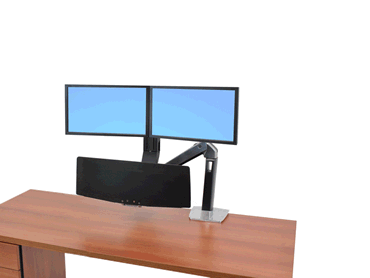

Animation of Ergotron Dual Monitor Workstation with Worksurface





Description

Ergotron 24272026 is ideal for corner workstations, the WorkFit-A clamps to the rear or side of most surfaces and enables an effortless sit-and-stand work style. Fold the keyboard up and swing the arm out of the way when you need your desk surface.

Change from a sitting to a standing position whenever you want. This height-adjustable workstation moves your keyboard and display in one simple motion, making computing comfortable for prolonged periods.

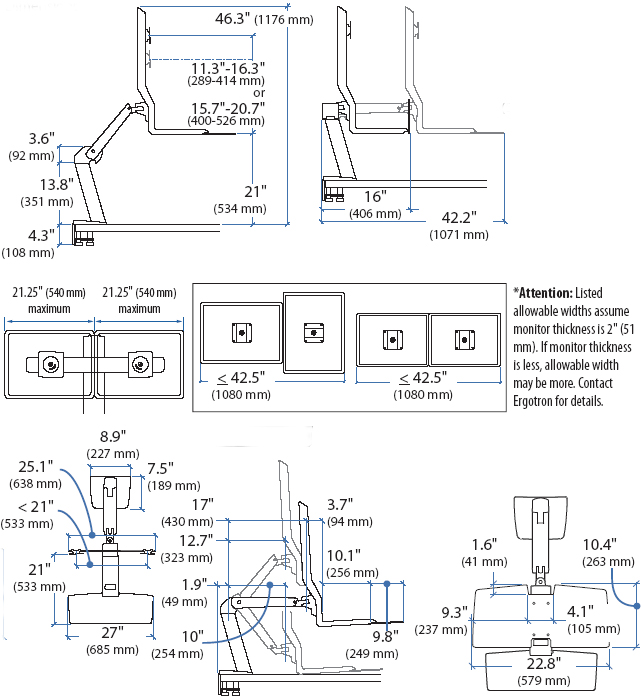

Technical Drawing

Technical drawing for Ergotron 24-272-026 WorkFit-A Dual LCD Worksurface Workstation



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22" Up to 25 lbs

11.3 kg

25"

64 cm

- 180° 360° P/L MIS-D



Product Information

Part Number:

24-272-026

Description:

WorkFit-A, Dual Monitor Sit-Stand Workstation, with Worksurface (polished aluminum/black)

Display Size:

Maximum outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness.

Weight Capacity:

Maximum total load on height-adjustment assembly ≤ 25 lbs (11.3 kg). LCD weight range = 10–20 lbs (4.5–9.1 kg), work surface (external weight) ≤ 5 lbs (2.3 kg), keyboard tray accessories ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 25 lbs (11.3 kg). The minimum total weight should not be less than 11 lbs (5 kg).

Lift Range:

LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently.

Desk Thickness:

Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick.

Worksurface Dimensions:

Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)

Arm Extend/ Retract Range:

Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted.

Cable Management:

  • Integrated cable management hides wires.
  • Cable management clips on the under side of the mount arm routes and hides wires.

Constant Force Technology:

Patented Constant Force (CF) lift-and-pivot motion technology

Mounting Standards:

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)

Hardware Kit:

Includes complete hardware kit

Note:

  • Computer systems mounted on a WorkFit-A may require extra long power and video cables in order to span between standing and sitting heights.
  • Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment.

Shipping Dimensions:

37" x 21" x 11.5" (940 x 533 x 292 mm)

Shipping Weight:

51 lbs (23.2 kg)

Warranty:

Five (5) years



Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. Standing a little more each day burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism.
  • Safe, easy-to-use - simple installation and effortless operation.
  • Easily and simultaneously lift keyboard and screen to proper height for unsurpassed ergonomic comfort.
  • Double your view and move it too! With two monitors you can save time by using multiple applications at once - eliminate toggling back and forth between documents and programs.
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing.
  • Fold keyboard up and swing arm and monitors out of the way when you need your desk surface.
  • Included worksurface provides ample space and quick access to a tablet computer, phone, cup of java or task-related items.

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment.
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers.
  • Safe and neat routing of cables.
  • For HR/Risk Management and Company Cost Savings.

Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs.
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases.
  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees.
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron 24-272-026 Dual Display Workstation with Worksurface

 - pdf

Installation Manual - Ergotron 24272026 WorkFit-A Sit-Stand Workstation with Worksurface

 - pdf

Dimensional Illustrations - WorkFit-A Dual LCD Sit-Stand Worksurface Desk Mount

 - pdf

WorkFit Flyer - WorkFit-A Dual LED Monitor Height Adjustable Worksurface Workstation

 - pdf





Ergotron Logo

Hyperlink of all Ergotron products

Model 24-272-026
Manufacturer Ergotron
Part Number 24-272-026
Weight Capacity Maxi total load ≤25 lbs. LCDs =6–14 lbs each, LCDs combined =9–20 lbs, work surface (external wt) ≤5 lbs, KB tray ≤2 lbs. For proper operation, total maxi wt when added together should not exceed 25 lbs. Mini total wt should not be less than 10 lbs
Lift (64 cm ) 25 in
Pan 180 degree
Rotation (P/L) 360 degree
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Shipping Dimensions 37" x 21" x 11.5" (940 x 533 x 292 mm)
Shipping Weight 51 lbs (23.2 kg)
Warranty Five (5) years
Monitor Size Maximum outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness.
Color Polished aluminum/Black
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Extend/Retract Range Arm fully extends up to 42" (1066 mm) from wall and pushes back to 18 1/4" (464 mm) when fully retracted.
Desktop Thickness Range Desk Clamp attaches to surface edge 0.78" to 2.7" (20 to 70 mm) thick
