We are sorry but item below has been discontinued.

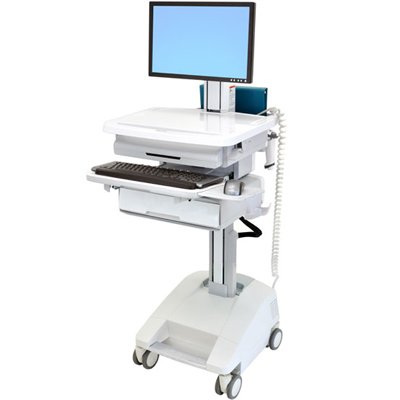

Ergotron SV32-6312-1 StyleView PHD Healthcare LCD Cart with 1 Drawer, LiFe Powered

Previously sold as SV32-51211.
Be the first to review this product
Product ID: 17074
Recommended Accessories
Our Price: $4,999.00
Shipping: $159.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Description

Ergotron is increasing customer choice with the addition of Lithium Iron (LiFe) battery technology to our point-of-care patient healthcare delivery portfolio

Patient Healthcare Delivery (PHD): Ergotron SV32-6312-1 has Auto-locking drawer system that enables simple and efficient non-controlled medication management at the point-of-care.



Technical Drawing

Technical Drawing of Ergotron SV32-6312-1 StyleView PHD LCD Cart with 1 Drawer, LiFe Powered



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

Up to 39 lbs

17.7 kg

25"

63 cm

25°

24°

90° P/L

MIS-D



Product Information

Part Number:

SV32-6312-1

Description:

StyleView PHD LCD Cart, 1 Drawer, Life Powered (white/grey)

Includes:

  • Auto-locking drawer system (ADS)
  • One large drawer
  • Cassette insert with six compartments
  • Single-battery 40 Ah power system
  • 10-foot (3-m) coiled cord
  • Hospital-grade AC outlets
  • Power system user interface
  • StyleLink software
  • Worksurface
  • Secure CPU compartment
  • LCD pivot
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Front and rear handles
  • Storage basket
  • Cable storage
  • Four casters (two locking)

Weight Capacity:

Total maximum load of height-adjustment assembly = 39 lbs (17.7 kg). This is the sum of the following components: Capacity of LCD pivot = 6–16 lbs (2.7–7.3 kg); capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg). Note: Locking the height of the LCD pivot changes the weight capacity to ≤ 20 lbs (9.1 kg) - contact Ergotron for details.

LCD and Worksurface:

Adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)

Portrait Orientation:

May be incompatible with > 19" widescreen LCDs

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.

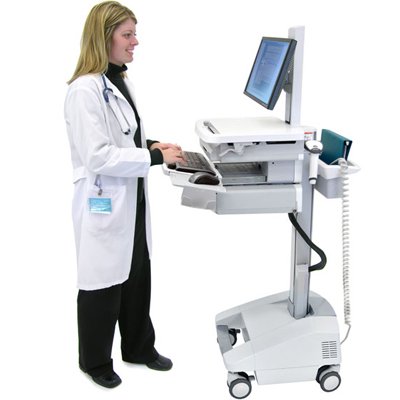

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position.
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment, keyboard placement, LCD tilt and pan all require just a touch.
  • Independent LCD screen positioning - 5" (13 cm) of lift with tilt and pan adjustment - for personalized viewing.
  • Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Safe:

  • Auto-locking drawer system (ADS): Each drawer is individually controlled with 5-digit master or user PIN; manual key-lock option included; drawer auto-locks after 4 seconds; programmable alarm sounds after 20 seconds; securely stores PINs for up to 100 users.
  • StyleLink Software enables drawer access PINs to be programmed remotely or directly; two points of possible console access for PIN updates/adds include Unit Clerk or IT; full cart open/close event log and reporting capabilities.
  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A.

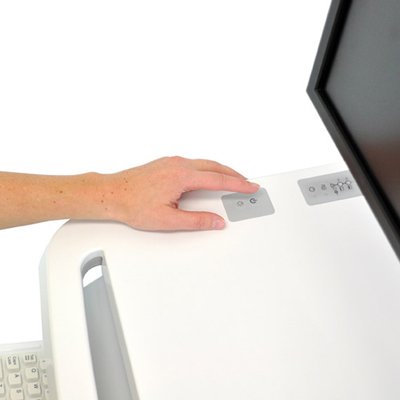

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator).
  • Surfaces are treated with antimicrobial for product protection; worksurface and handles are smooth and continuous for improved clean ability.
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.
  • Front-locking casters.
  • Auto locking drawer system securely stores PINs for up to 100 users.
  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems and drawers from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country, or the world.
  • Covered by Global Service Program - 24/7 coverage.
All the Details Covered:
  • Four amber LEDs provide light over keyboard tray or drawers and includes 15 minute auto shut-off.
  • Button for LED lights is now located conveniently on worksurface.
  • Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time.
  • Pre-routed cables provide quicker integration with equipment.
  • TAA (Trade Agreements Act) compliant.
  • Universal mounting slot for accessories and equipment.
  • A unique cable management system conceals and organizes cords, making cleaning easy.
  • Ships fully assembled and is easily accessible from container.
  • One-piece worksurface, no seams, easy to clean design promotes infection control.
  • Four-port USB hub.
  • Rear basket keeps task-related items where they can be quickly accessed.

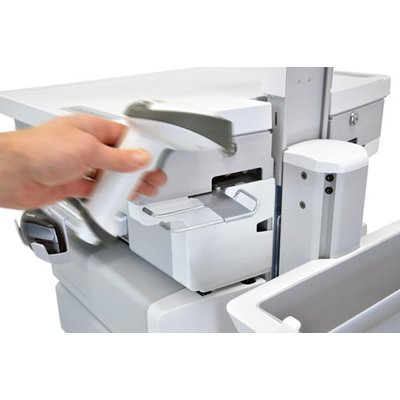

  • Barcode scanner holder provides easy access to hand-held scanner.

Compatibility and Dimensions:

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades.
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

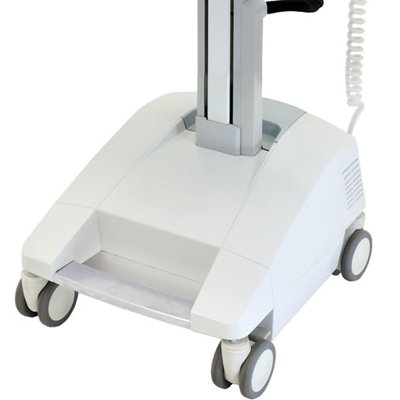

  • Compact wheel-to-wheel base dimensions: 15.5" x 18.7" (39 x 48 cm)
  • Worksurface Dimensions: 20.9"W x 16.4"D (53 x 42 cm)
  • Locked, ventilated CPU enclosure internal dimensions: 17"W x 12.5"D x 3.75"H (43 x 31.75 x 9.5 cm)
  • Larger CPUs attach safely to rear of cart with Universal CPU Holder accessory (purchased separately): Adjusts from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm).
  • VAC: 120V/60 Hz
  • Grounded Plug & Outlet = NEMA 5-15P Hospital Grade (4 outlets)
  • 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery.

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

151 lbs (68.6 kg); actual cart weight = 118 lbs (53.6 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components; five (5) years on LiFe battery, including two-year capacity guarantee.



Benefits

  • LiFe makes the cart extremely lightweight and easy to move.
  • Ultrafast recharge ensures caregiver and cart uptime: A full recharge from full discharge can be completed in about two hours.
  • Long battery ‘LiFe’ minimizes time and cost for maintenance and replacement.
  • For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A.
  • Auto-locking drawer system: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 100 users.
  • Large drawer includes cassette insert with six storage compartments to support six patients.
  • Truly ergonomic design accommodates the largest range of caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels across crowded carpeted or hard floors with ease - perfect for space constrained areas.
  • Surfaces are treated with antimicrobial for product protection.
  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades.
  • Enterprise Management: FREE StyleLink Software secures access to drawers and allows remote monitoring/configuration with established Microsoft tools.
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.



Literature (Please open the following documents for more technical information)

Product Sheet - Ergotron SV32-6312-1 StyleView Patient Healthcare Delivery LCD Monitor Cart

 - pdf

Dimensional Illustrations - Ergotron SV3263121 PHD LED Display Cart, 1 Drawer, LiFe Powered

 - pdf

StyleView Accessories

 - pdf



Model SV32-6312-1
Manufacturer Ergotron
Part Number SV32-6312-1
Color White/Grey
Screen Size Up to 22 in
Weight Capacity 39 lbs (17.7 kg). This is the sum of the following components: Capacity of LCD pivot = 6–16 lbs (2.7–7.3 kg); capacity of worksurface, keyboard tray and autolock drawer ≤ 10 lbs (4.5 kg); capacity of CPU compartment ≤ 13 lbs (5.9 kg).
Lift (63 cm) 25 in
Tilt 25 degree
Pan 24 degree
Rotation (P/L) 90 degree
VESA VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Compact Wheel to Wheel Base Dimensions 15.5" x 18.7" (39 x 48 cm)
Worksurface Dimensions 20.9"W x 16.4"D (53 x 42 cm)
CPU Dimension 17"W x 12.5"D x 3.75"H (43 x 31.75 x 9.5 cm)
Shipping Dimensions 23" x 30" x 55" (58 x 76 x 140 cm)
Shipping Weight 151 lbs (68.6 kg); actual cart weight = 118 lbs (53.6 kg)
Warranty Five (5) years for cart, two (2) years on all power supply components; five (5) years on LiFe battery, including two-year capacity guarantee.
