Innovtaive 9130-S-12 Long Reach 16" Double LCD Monitor Arm 12" Pole Mount

Pole Height: 12". Horizontal Range: 16".
Be the first to review this product
Product ID: 17084
Recommended Accessories
Our Price: $181.30
Shipping: $19.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States



Click on the functions (Height Adjustment, Fold the Arm, Tilt Flat Screen, Swing Arm, Move the Arm around and Swing Flat Screen) to the right side of the image below to see the arm movements

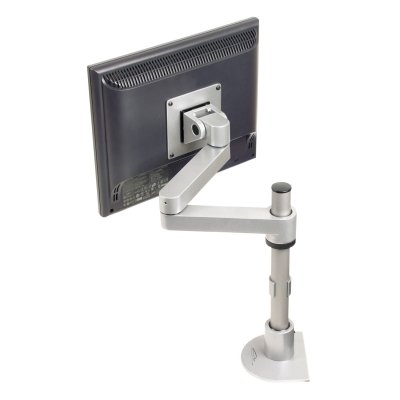

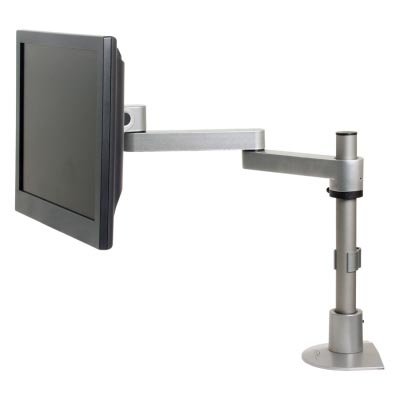

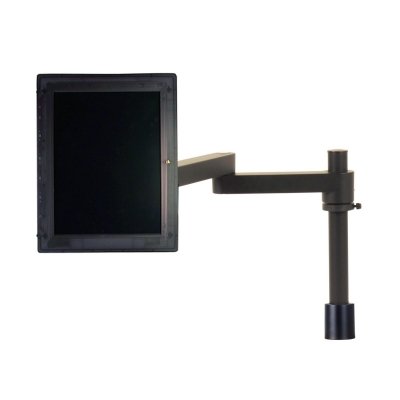

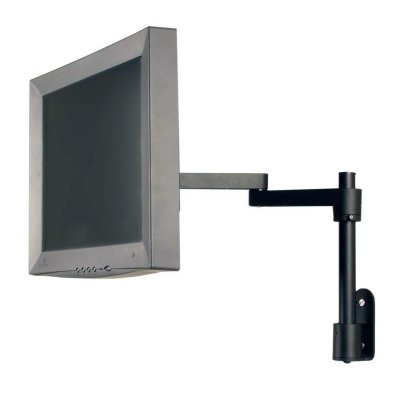

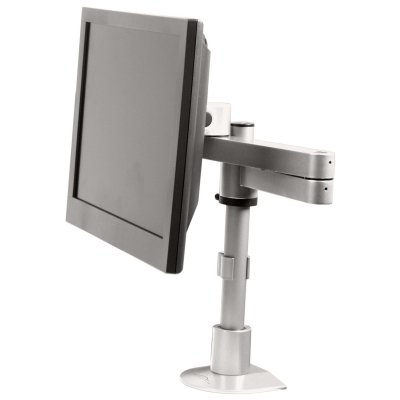

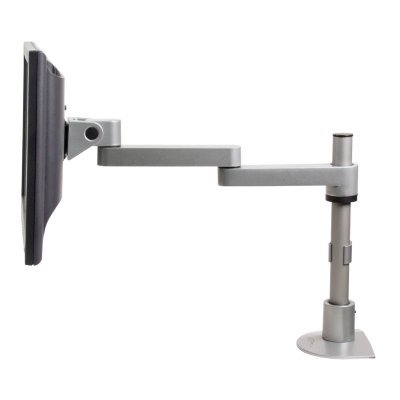

Innovative 9130-S-12 Long Reach 16" Double LCD Monitor Arm with 12" Pole



General Information



Image of Warranty and Returns









Innovative 9130-S-12-NM Long Reach 16" LCD Monitor Arm with 12" Pole



Innovative 9130-S-12-NM Long Reach 16" LCD Monitor Arm with 12" Pole









Description of Innovative 9130-S-12:



The Model 9130 Double LCD arm has foldable arms and adjusts vertically up and down along the 12" pole. The arm can fold up to fit about 3" of space and extend out 16".

Various pole lengths are available or can be designed to fit any application you may be looking for. Call for information. Unique cable management allows cables to tucked under the forearm extensions. You will receive a 75MM VESA Bracket and a 100MM VESA Bracket with your set-up.

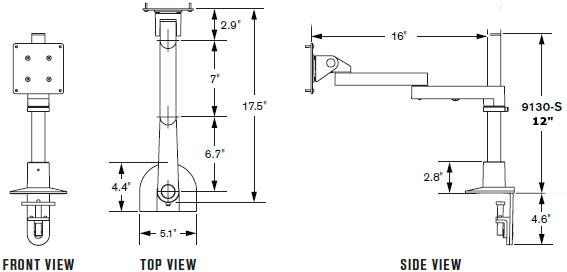

Technical Drawing for Innovative 9130-S-12 Long Reach LCD Arm with 12" Pole



Technical Drawing for Innovative 9130-S-12 Long Reach LCD Arm with 12" Pole









Features of Innovative 9130-S:



  • Standard 12" pole included. Call for custom size options.

  • Foldable arms are adjustable vertically up and down along the pole.

  • Users can position the LCD arm with the touch of a finger.

  • Arm joints rotate 360° and the monitor can tilt over 200°.

  • Accessory products are available for holding keyboards or notebook computers.

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.

  • Can be combined with all Innovative mount options (sold separately).

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.







Technical Specifications of Innovative 9130-S-12:



Horizontal Range:

16"

Pole Height:

12"

Rotation:

360 degrees

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to Portrait

Monitor Compatibility:

VESA 75 mm and 100 mm

Mounting Options:

FLEXmount, Slatwall, Wall, Thru-Desk

Monitor Weight:

Up to 40 lbs per monitor







Literature (Please open the following documents for more technical information)




Innovative 9130-S-12 Long Reach Flat Panel LCD Monitor Arm with 12" Pole - Brochure

- pdf

Innovative 9130-S-12-NM Long Reach (16") LCD Monitor Arm with 12" Pole - Capabilities

- pdf

Innovative 9130-S-12 Long Reach (16") LCD Monitor Pole Mount Arm - Installation Instructions

- pdf



Innovative LCD Arms Logo

Hyperlink of All Innovative Products

Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 9130-S-12
Manufacturer Innovative LCD Arms
Part Number 9130-S-12
Color 104: Vista Black, 124: Silver
Horizontal Range 16"
Pole Length 12"
Tilt 200 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm and 100mm
Mounting Options FLEXmount, Slatwall, Wall, Thru-Desk
Monitor Weight Up to 40 lbs per monitor
Rotation 360 degree
