We are sorry but item below has been discontinued.

Innovtaive 9124-S-12 EURO Series Dual Side By Side 12" Pole Mount LCD Monitor Arm

Pole Height: 12". Horizontal Range: 14" (from back of pole).
Be the first to review this product
Product ID: 17085
Recommended Accessories
Our Price: $297.50
Shipping: $29.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States



Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at LCD, Fold the Arm) to the left side of the image below to see the arm movements

Innovative 9124-S-12 EURO Series Dual Side By Side LCD Monitor Arm with 12" Pole



General Information



Image of Warranty and Returns

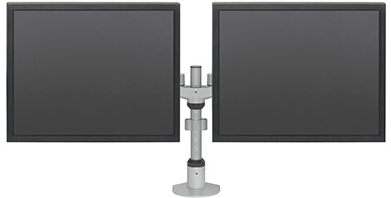

Innovative 9124-S-12-NM EURO Series Dual Side By Side LCD Arm with 12" Pole



Innovative 9124-S-12-NM EURO Series Dual Side By Side LCD Arm with 12" Pole









Description of Innovative 9124-S-12:



NEW in our EURO Series of stylish mounts. Mount 2 flat panels side by side with this space-saving mount. Position each monitor independent of the other, and quickly adjust pivot and placement as your needs change. Adjust height in 1" increments along the included 12" pole.

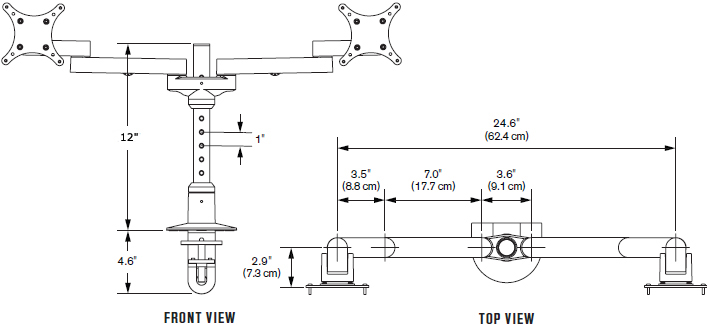

Technical Drawing for Innovative 9124-S-12 EURO Series Dual Side By Side LCD Arm with 12" Pole



Technical Drawing for Innovative 9124-S-12 EURO Series Dual Side By Side LCD Arm with 12" Pole









Features of Innovative 9124-S:



  • Standard 12" pole included. Call for custom size options.

  • Provides 200 degrees of rotation at two pivot points.

  • Space saving design allows approximately 3"of space behind the monitor.

  • Friction control system provides smooth adjustment while adjusting the position of the arm.

  • Adjust each monitor independently.

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.

  • Can be combined with all Innovative mount options (sold separately).

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.







Technical Specifications of Innovative 9124-S-12:



Horizontal Range:

14" from back of pole

Pole Height:

12"

Monitor Tilt:

200 degrees

Monitor Pivot:

90 degrees for Landscape to Portrait

Monitor Compatibility:

VESA 75 mm and 100 mm

Mounting Options:

FLEXmount, Slatwall, Wall, Thru-Desk

Monitor Weight:

Up to 40 lbs per monitor







Literature (Please open the following documents for more technical information)




Innovative 9124-S-12 EURO Series Dual Side By Side LCD Arm with 12" Pole - Brochure

- pdf

Innovative 9124-S-12-NM Dual Side By Side LCD Monitor Arm with 12" Pole - Capabilities

- pdf

Innovative 9124-S-12 EURO Series Dual LCD Monitor Pole Mount Arm - Installation Instructions

- pdf



Innovative LCD Arms Logo

Hyperlink of All Innovative Products

Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 9124-S-12
Manufacturer Innovative LCD Arms
Part Number 9124-S-12
Color 104: Vista Black, 124: Silver
Horizontal Range 14" (from back of pole)
Pole Length 12"
Tilt 200 degree
Pivot 90 Degree for portrait to Landscape
Mounting Pattern VESA 75mm and 100mm
Mounting Options FLEXmount, Slatwall, Wall, Thru-Desk
Monitor Weight Up to 40 lbs per monitor
