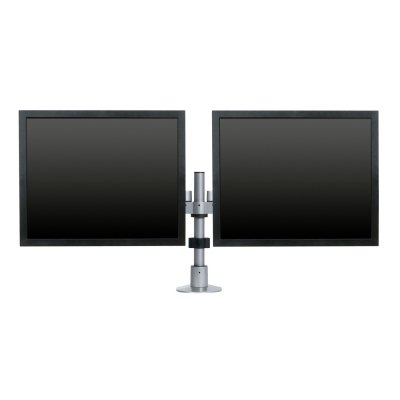

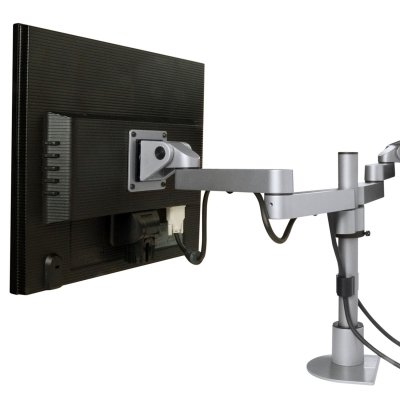

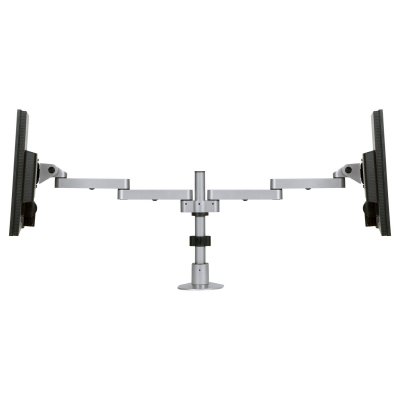

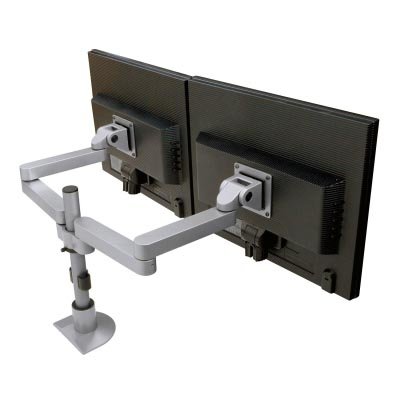

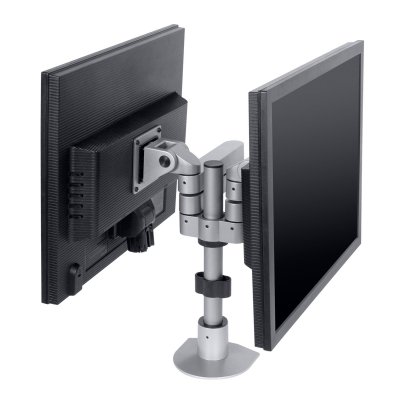

Innovative 9163-S-12 Dual Side By Side 12" Pole Mount Arm for Large and Widescreen LCDs (20"+)

Pole Height: 12". Horizontal Range: 17.5".
Be the first to review this product
Product ID: 17087
Recommended Accessories
Our Price: $303.80
Shipping: $30.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States



Innovative 9163-S-12 Dual Side By Side Arm with 12" Pole for Oversize LCD (20" +)



General Information



Image of Warranty and Returns

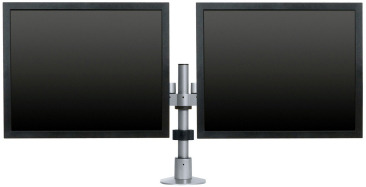

Innovative 9163-S-12 Dual Large Monitor Side By Side LCD Arm with 12" Pole



Innovative 9163-S-12 Dual Large Monitor Side By Side LCD Arm with 12" Pole









Description of Innovative 9163-S-12:



Position 2 large flat panels side by side with this space-saving mount. Extra-long arms make this mount ideal for large (20"+) monitors. Each monitor can be positioned independently. Quickly adjust pivot and placement. Set height at any desired position along the included 12" pole.

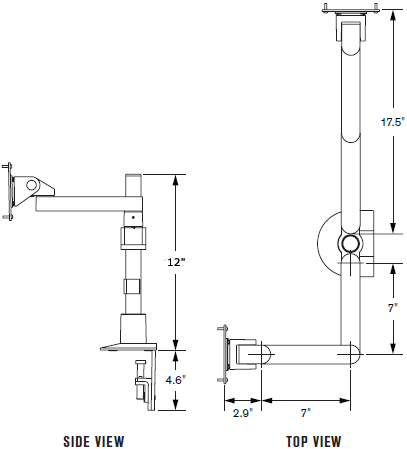

Technical Drawing for Innovative 9163-S-12 Dual Large LCD Monitor Side By Side Arm with 12" Pole



Technical Drawing for Innovative 9163-S-12 Dual Large LCD Monitor Side By Side Arm with 12" Pole









Features of Innovative 9163-S-12:



  • Extra-long arms enable proper positioning of large and widescreen LCD's (20"+).

  • Standard 12" pole included. Call for custom size options.

  • Provides 200 degrees of rotation at two pivot points.

  • Space saving design allows approximately 3"of space behind the monitor.

  • Friction control system provides smooth adjustment while adjusting the position of the arm.

  • Adjust each monitor independently.

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.

  • Can be combined with all Innovative mount options (sold separately).

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.







Technical Specifications of Innovative 9163-S-12:



Horizontal Range:

17.5"

Pole Height:

12"

Monitor Tilt:

200 degrees

Monitor Rotation:

360 degrees

Monitor Pivot:

Landscape to Portrait

Monitor Compatibility:

VESA 75 mm and 100 mm

Mounting Options:

FLEXmount, Slatwall, Wall, Thru-Desk

Monitor Weight:

Up to 40 lbs per monitor







Literature (Please open the following documents for more technical information)




Innovative 9163-S-12-NM Dual Large LCD Monitor Side By Side Arm w/ 12" Pole - Brochure

- pdf

Innovative 9163-S-12 Dual Large Monitor Side By Side Arm with 12" Pole - Capabilities

- pdf

Innovative 9163-S-12 Dual Oversize LCD Monitor Side By Side Arm - Installation Instructions

- pdf



Innovative LCD Arms Logo

Hyperlink of All Innovative Products

Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 9163-S-12
Manufacturer Innovative LCD Arms
Part Number 9163-S-12
Color 104: Vista Black, 124: Silver
Horizontal Range 17.5"
Pole Length 12"
Tilt 200 degree
Rotation 360 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm and 100mm
Mounting Options FLEXmount, Slatwall, Wall, Thru-Desk
Monitor Weight Up to 40 lbs per monitor
