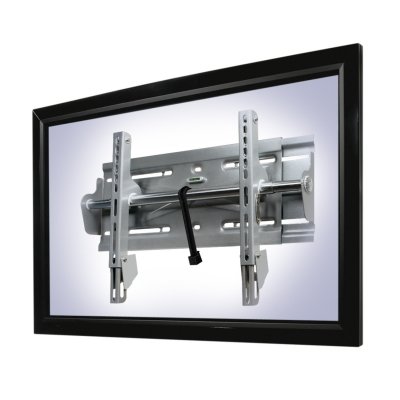

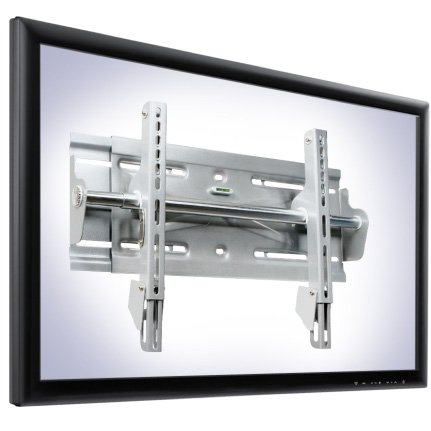

Innovative 9194 Universal Expanding Large Display Wall Mount

Weight capacity: up to 198 lbs. Tools (purchase separately from Home Depot or Lowe's Type Store) required to install: 1. Phillips Head Screw Driver 2, Stud finder for Dry Wall Installation, 3. Electric Drill with 5/16" Masonry Bit for Concrete Installation.

Be the first to review this product
Product ID: 17091
Options
Our Price: Call for price
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

Description of Innovative 9194:

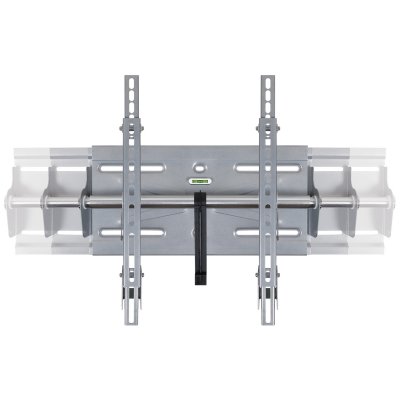

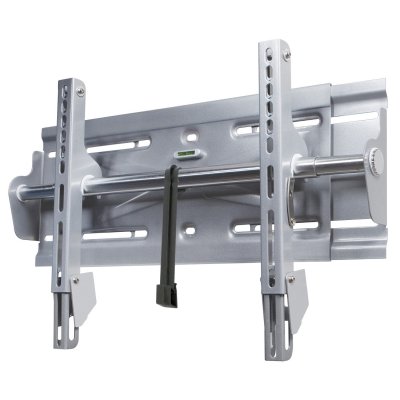

Innovative 9194 Expandable Large LCD Display Wall Mount up to 198 lbs. The wall mount allows the monitor to be tilted downwards up to -15 degrees for an improved viewing angle. An integrated level is included for fast and easy setup. The display may optionally be secured with a small padlock (not included).

Ideal for homes, conference rooms, stores, public areas, restaurants and more. Anywhere you need to mount a large-screen LCD or plasma monitor.





Technical Drawing for Innovative 9194 Large LCD Display Wall Mount



Technical Drawing for Innovative 9194 Large LCD Display Wall Mount





Features of Innovative 9194:



  • Expandable - accommodates flat panel displays up to 198 lbs.

  • Adjust screen tilt by -15 degrees.

  • Low profile - mount concealed behind display.

  • Includes integrated level to ensure correct setup.

  • Security option - accommodates padlock to secure display.

  • Includes cable manager.

  • Mounts to drywall (studs) or concrete surfaces.





Technical Specifications of Innovative 9194:



Monitor Tilt:

-15 degrees

Mounting Surfaces:

Drywall (studs) or Concrete surfaces

Monitor Weight:

Up to 198 lbs


Model 9194
Manufacturer Innovative LCD Arms
Part Number 9194
Color Silver
Tilt -15 degree
Weight Capacity Up to 198 lbs
Mounting Surfaces Drywall (studs) or concrete surfaces
Mounting Options Wall
Number of Monitors 1 Monitor
