We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

DISCONTINUED - Innovative 9114-S-12 Euro Series Articulating LCD Pole Mount Arm with 12" Pole and 14" Extended Reach

Pole Height: 12". Horizontal Range: 14".
Be the first to review this product
Product ID: 17092
Recommended Accessories
Our Price: $180.60
Shipping: $19.95 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States



Click on the functions (Height Adjustment, Tilt LCD, Rotate at Forearm, Rotate at LCD, Rotate at Mount, Fold the Arm) to the left side of the image below to see the arm movements.

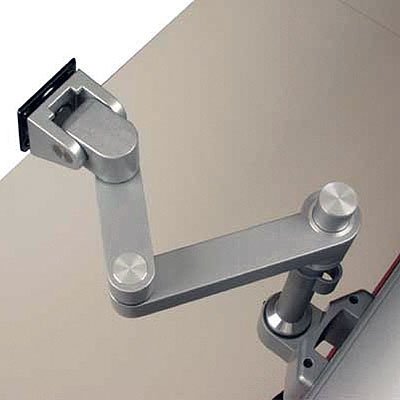

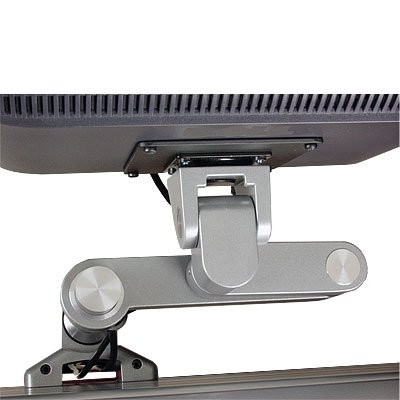

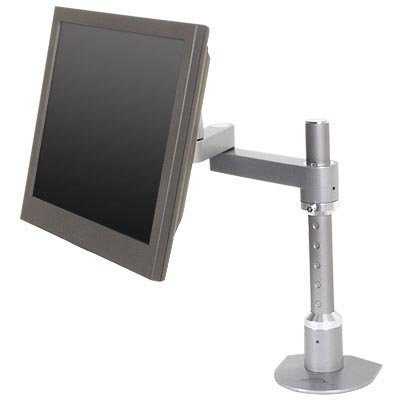

Innovative 9114-S-12 Euro Series Articulating LCD Arm with 12" Pole



General Information



Image of Warranty and Returns









Innovative 9114-S-12 Euro Series Articulating LCD Arm Mount with 12" Pole



Innovative 9114-S-12 Euro Series Articulating LCD Arm Mount with 12" Pole









Description of Innovative 9114-S-12:



Part of our EURO Series of stylish mounts. Model 9114 features foldable arms which adjust vertically up and down a 12" pole. The arms can fold up to fit in about 3" of space and extend out 14". Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to be tucked under the forearm extensions.









Features of Innovative 9114-S-12:



  • 12" standard pole; custom pole lengths are available.

  • Rotates 360 degrees at three joints.

  • Monitor tilter mechanism can tilt over 200 degrees.

  • Adjustable tension at joints - ideal for touch-screen applications.

  • Ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately).

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.

  • Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.







Technical Specifications of Innovative 9114-S-12:



Pole Height:

12"

Horizontal Range:

14"

Monitor Tilt:

200 degrees

Monitor Rotation:

360 degrees

Monitor Compatibility:

VESA 75 mm and 100 mm

Mounting Options:

FLXEmount, Slatwall, Wall, Through-Desk

Monitor Weight:

Up to 40 lbs per monitor







Literature (Please open the following documents for more technical information)




Innovative 9114-S-12 Euro Series Articulating LCD Arm Mount with 12" Pole - Installation Instructions

- pdf



Innovative LCD Arms Logo

Hyperlink of All Innovative Products

Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model DISCONTINUED - 9114-S-12
Manufacturer Innovative LCD Arms
Part Number 9114-S-12
Color 104: Vista Black, 124: Silver
Horizontal Range 14"
Pole Length 12"
Tilt 200 degree
Rotation 360 degree
Mounting Pattern VESA 75mm and 100mm
Mounting Options FLXEmount, Slatwall, Wall, Through-Desk
Monitor Weight Up to 40 lbs per monitor

Be the first to review this product

DISCONTINUED - Innovative 9114-S-12 Euro Series Articulating LCD Pole Mount Arm with 12" Pole and 14" Extended Reach
