Innovative 9450 Long Reach (65") Heavy Duty Wall Mounted Point of Care Monitor Arm

Horizontal Range: 65.7". Monitor Weight: 2-22 lbs.
Innovative 9450 Long Reach (65") Heavy Duty Wall Mounted Point of Care Monitor Arm
click image to enlarge
This product has the following options available:
List Price: $1,370.00
Our Price: $959.00
You Save: $411.00
Shipping: $50.95 *
* applies to Contiguous United States



Innovative 9450 Long Reach (65") Heavy Duty Point of Care Wall Mount Monitor Arm



General Information



Image of Warranty and Returns








Innovative 9450 Long Reach (65") Point of Care Wall Mount Arm



Innovative 9450 Long Reach (65") Point of Care Wall Mount Arm









Description of Innovative 9450:



The 9450 Point of Care Arm allows you to maximize the versatility and flexibility of healthcare environments. This huge arm is mounted high on the wall, extending down into the area of use. This approach saves valuable counter and floor space.

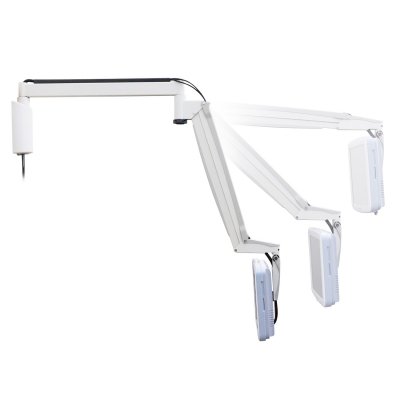

The dual arms fold back, minimizing the consumption of valuable horizontal space. Special features include internal cable management, durable, heavy-duty construction, and remarkably smooth motion.

The arm includes a heavy-duty wall-mount with cable management. The 9450 Point-of-Care Arm is an ideal solution for patient rooms, clinics, dental offices... anywhere a monitor is needed.

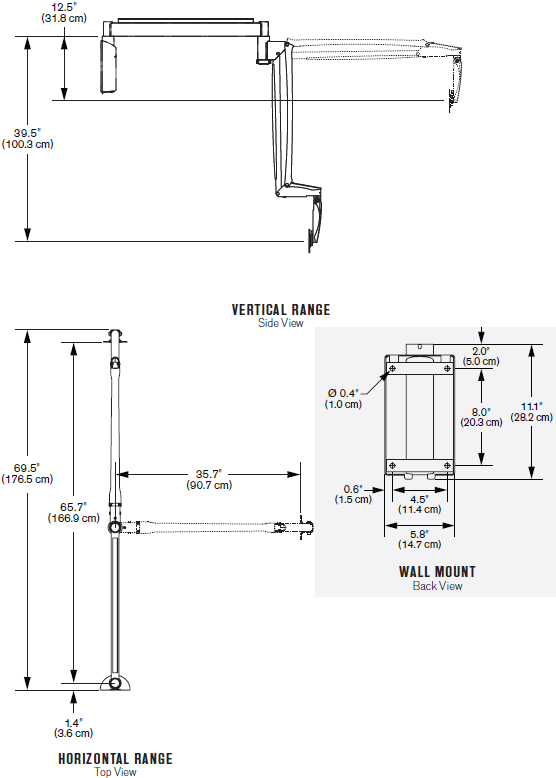

Technical Drawing for Innovative 9450 Long Reach Point of Care Wall Mount Arm



Technical Drawing for Innovative 9450 Long Reach Point of Care Wall Mount Arm









Features of Innovative 9450:



  • Maximum extension of 65".

  • Supports monitors up to 22 lbs.

  • Mount high on wall to save space.

  • Internal cable management.

  • Versatile dual arms enable effortless positioning of monitor.

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.







Technical Specifications of Innovative 9450:



Vertical Range:

27" (68.6 cm)

Horizontal Range:

65.7" (166.9 cm)

Monitor Tilt:

Up to 60 degrees

Monitor Rotation:

340 degrees

Monitor Compatibility:

VESA 75 mm and 100 mm

Cable Management:

Cables are concealed in arm

Mounting Options:

Wall

Monitor Weight:

2 - 22 lbs (0.9 - 10 kg)







Literature (Please open the following documents for more technical information)




Innovative 9450 Long Reach (65") Point of Care Wall Mount Arm - Brochure

- pdf
Innovative 9450 Long Reach (65") Wall Mounted Point of Care Arm - Specification

- pdf
Innovative 9450 Long Reach Wall Mounted Point of Care Monitor Arm - Installation

- pdf



Innovative LCD Arms Logo

Hyperlink of All Innovative Products

Innovative Returns Policy:

All returns must be labeled with a valid Return Authorization (R/A) number, which can be obtained by contacting Ergodirect.com, on the outside of packaging. Restocking fee of 20% will be applied on all returns. Products must be in brand new, saleable condition, and never installed. Defective items may be returned within limits of the Warranty. Non-defective Custom-configured Items are not returnable. All return must be made within 30 days of receipt.

Model 9450
Manufacturer Innovative LCD Arms
Part Number 9450
Color 104: Vista Black, 124: Silver, 232: Linen White
Vertical Range 27" (68.6 cm)
Horizontal Range 65.7" (166.9 cm)
Tilt Up to 60 degree
Rotation 340 degree
Mounting Pattern VESA 75mm and 100mm
Monitor Weight 2 - 22 lbs (0.9 - 10.0 kg)
Mounting Options Wall Mount
