We are sorry but item below has been discontinued.

Peerless DS-VWC560 Digital Signage Portable Video Wall Cart 2x2 or 2x1 Configurations upto 500 lb

COMPATIBILITY FORMULA: Height: Screen Height + Height of Mounting Hole Pattern must be > 850mm and < 1206mm. Width: Screen Width + Width of Mounting Hole Pattern must be > 1109mm and < 1733mm.
Be the first to review this product
Product ID: 17145
Recommended Accessories
List Price: $3,479.01
Our Price: $3,180.81
You Save: $298.20
Shipping: $220.00 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

Description

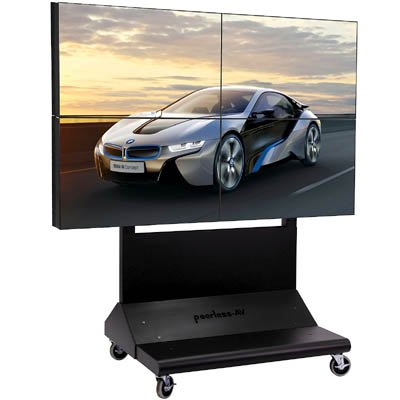

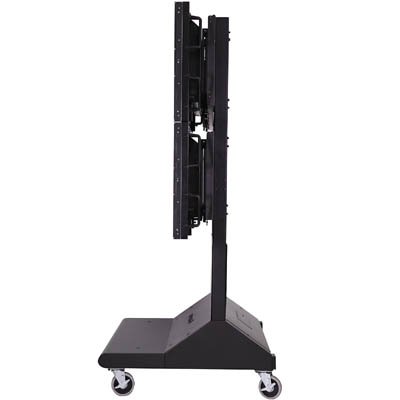

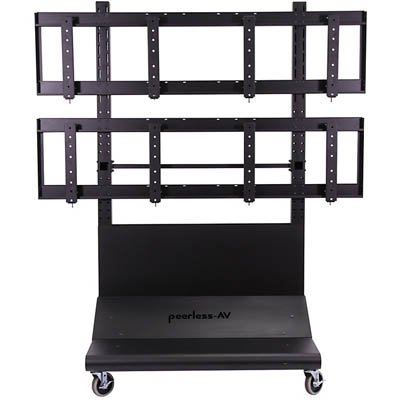

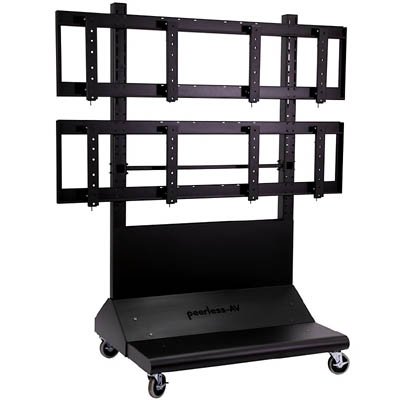

Peerless DS-VWC560 Digital Signage Portable Video Wall Cart provides tool-less micro adjustment for precise display alignment along with the strength to hold up to 4 displays measuring 40"-60". A security screw locking mechanism ensures that the displays stay in the location intended for perfect viewing positioning. With strong legs paired with horizontal supports, the wall cart holds a maximum load of 500lb (226.7kg). The 8-point adjustment offers seamless alignment. With 360° swivel, the durable swivel casters roll smoothly offering easy maneuverability. The DS-VWC560 Digital Signage Portable Video Wall Cart is compatible with VESA patterns - 200 x 200, 400 x 200, 400 x 400, 600 x 400mm and PLP.

Technical Drawing

Technical Drawing for Peerless DS-VWC560 Digital Signage Portable Video Wall Cart 2x2 or 2x1 Configurations



Technical Specifications

Screen Size

40" to 60"

Mounting Pattern

VESA patterns - 200 x 200, 400 x 200, 400 x 400, 600 x 400mm and PLP

Weight Capacity

500lb (227kg)

Finish

Powder Coat

Security Features

Security Hardware

Product Dimensions

71.54" x 81.16" x 39.22" (1817 x 2061 x 996mm)

Weight

215lb (97.7kg)

Shipping Dimensions

85" x 37.5" x 12.5" (2159 x 952.5 x 317.5mm)

Shipping Weight

230lb (105kg)

UPC Code

735029277590

Features

  • Lockable 5" casters enable safe and easy maneuverability over various flooring surfaces
  • Displays are height adjustable
  • Tool-less micro adjustment allow for precise alignment
  • Free standing video wall solution for 2x2 or 2x1 display configurations
  • Cable management through the stand uprights
  • Mounting hole patterns of 200 x 200 up to 600 x 400mm. Additional patterns supported with adapter plates
  • Base cover with internal media player shelf, hides wires for a clean appearance

Literature (Please open the following documents for more technical information)

Product Sheet - Peerless DSVWC560 Digital Signage Portable Video Wall Cart

 - pdf

Installation Instructions - Peerless DS VWC560 Digital Signage Portable Video Wall Cart

 - pdf

Model DS-VWC560
Manufacturer Peerless Mounts
Part Number DS-VWC560
UPC 735029277590
Color Black
Dimensions (W x H x D) 71.54" x 81.16" x 39.22" (1817 x 2061 x 996mm)
Weight 215lb (97.7kg)
Weight Capacity 500lb (227kg)
Shipping Dimensions 85" x 37.5" x 12.5" (2159 x 952.5 x 317.5mm)
Shipping Weight 230lb (105kg)
Monitor Size 40" to 60"
Mounting Pattern VESA patterns - 200 x 200, 400 x 200, 400 x 400, 600 x 400mm and PLP
Swivel 360 degree
Warranty Limited 5 year
Mounting Options Cart

Be the first to review this product

Peerless DS-VWC560 Digital Signage Portable Video Wall Cart 2x2 or 2x1 Configurations upto 500 lb
