Peerless DS-VWC655-3x3 Digital Signage Video Wall Cart for 3x3 Configuration

COMPATIBILITY FORMULA: Each screen must be at least 39.75” wide. Screen height must be no more than 27.68”. Two screen widths + the hole pattern width must be less than 114.65”
Be the first to review this product
Product ID: 17146
Recommended Accessories
Our Price: $6,394.07
Shipping: $602.14 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart



Description

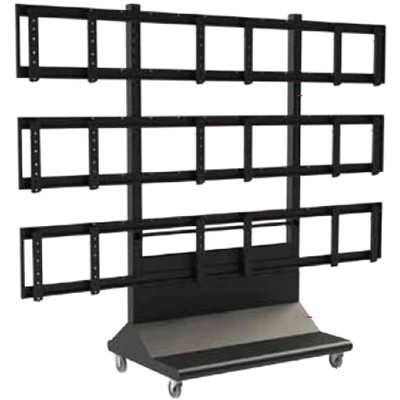

Peerless DS-VWC655-3X3 Portable Digital Signage Video Wall Cart provides a free standing portable 3 x 3 video wall solution for any environment. Durable swivel casters provide easy 360° smooth swivel and roll maneuverability. Tool-less 8-point adjustment offers seamless display alignment along with the strength to hold up to 9 displays measuring 46" to 55". In addition, a secure locking mechanism ensures that the displays stay safe while providing the ability to provide perfect viewing positioning. With strong legs paired with horizontal supports, the video wall cart holds a maximum load of 1000lb (454kg)

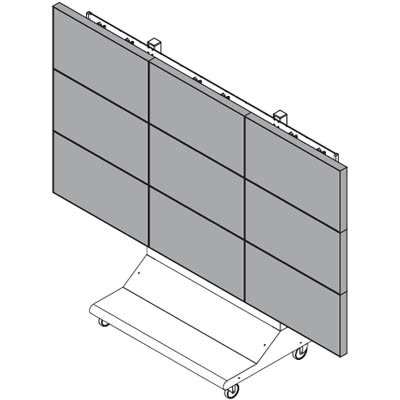

Technical Drawing

Technical Drawing for Peerless DS-VWC655-3x3 Digital Signage Video Wall Cart



Technical Specifications

Screen Size

46" to 55"

Mounting Pattern

VESA patterns 200 x 200 up to 600 x 400 mm

Weight Capacity

1000lb (454kg)

Finish

Powder Coat

Security Features

Non-Security Hardware

Product Dimensions

119.21" x 99.52" x 39.28" (3028 x 2528 x 998mm)

Weight

370lb (168kg)

Shipping Dimensions

  • Box 1: 101" x 37.5" x 12.5" (2565 x 952 x 317mm)
  • Box 2: 121" x 4" x 4" (3073 x 102 x 102mm)
  • Box 3: 121" x 4" x 4" (3073 x 102 x 102mm)

Shipping Weight

385lb (175kg)

UPC Code

735029282648



Features

  • Free standing video wall solution for a 3 x 3 display configuration
  • Lockable 5" casters enable safe and easy maneuverability over various flooring surfaces
  • Displays are height adjustable
  • Tool-less micro adjustment allow for precise alignment
  • Cable management through the stand uprights
  • Mounting hole patterns of up to 400mm vertically. Additional patterns supported with adapter plates
  • Base cover with internal media player shelf, hides wires for a clean appearance
  • Converts from a cart to a stand with additional Peerless-AV leg accessory leveler, ACC310



Literature (Please open the following documents for more technical information)

Product Sheet - Peerless DSVWC6553x3 Digital Signage Portable Video Wall Cart

 - pdf

Installation Instructions - Peerless DS VWC655 3x3 Universal 3x3 Video Wall Cart

 - pdf



Model DS-VWC655-3x3
Manufacturer Peerless Mounts
Part Number DS-VWC655-3x3
UPC 735029282648
Color Black
Overall Dimensions (H x W x D) 119.21" x 99.52" x 39.28" (3028 x 2528 x 998mm)
Weight 370lb (168kg)
Weight Capacity 1000lb (454kg)
Shipping Dimensions Box 1: 101" x 37.5" x 12.5" (2565 x 952 x 317mm) Box 2: 121" x 4" x 4" (3073 x 102 x 102mm) Box 3: 121" x 4" x 4" (3073 x 102 x 102mm)
Shipping Weight 385lb (175kg)
Monitor Size 46" to 55"
Swivel 360°
Mounting Pattern 200 X 200 up to 600 X 400 mm
Mounting Options Cart
