Workrite WA1000-C-S or WA1000-G-S Willow Monitor Arm (1-14 lbs)

Includes both VESA Quick Release and Secure Screw monitor mounting options.

Be the first to review this product
Product ID: 17152
Recommended Accessories
List Price: $282.00
Our Price: $169.20
Shipping: $9.95 *
Usually ships in 3 to 5 business days
* applies to Contiguous United States





Related Products:



Part Number

Description

WA1000-C-S

Silver Willow LCD Monitor Arm C-Clamp Mount for Lighter Monitors (1 to 14 lbs)

WA1000-G-S

Silver Willow Grommet Mount LCD Monitor Arm for Lighter Screens (1 to 14 lbs)

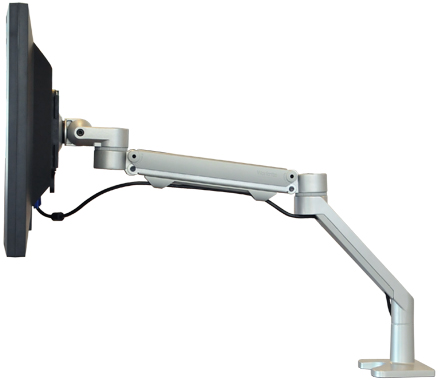

Workrite WA1000-C-S or WA1000-G-S Willow LCD Monitor Arm for 1 to 14 lbs Displays



Workrite Willow C-Clamp or Grommet LCD Monitor Arm for Lighter Monitors









Description of Workrite Willow Monitor Arm:



Willow is specifically developed to support newer monitors which are becoming ever lighter. Whether you have a one pound ultra light display or a 14 pound LCD monitor, the Willow monitor arm will provide the support you need.

Willow leads the category in its height and reach adjustment. Users of all ages and levels of visual acuity will be able to position their monitor to maximize their viewing comfort.

Perfect for benching configurations, Willow is designed to fold back completely, maximizing the usefulness of your worksurface. To bring your work into focus, the spring and friction balance arm gracefully extends a full 22" from the worksurface edge.









Technical Drawing for Workrite Willow LCD Monitor Arm for Lighter Monitor



Technical Drawing for Workrite Willow LCD Monitor Arm for Lighter Monitor









User Friendly Features Include:



  • Four lengths: 12", 17", 21", 39".

  • Parallel linkage design keeps monitor perfectly parallel when adjusting vertically.

  • 135° tilt range (+45°/- 90°), 360° pivot at base and arm connections, 180° pivot at monitor mounting.

  • 22½" reach, 13" height range. 4¼" stored depth.

  • Supports monitors from 1 lb. up to 14 lbs.

  • Coil spring and adjustable friction balance.

  • Specify two-piece C-Clamp or grommet mount, each fits surfaces ½"-2¾" thick.

  • For customized control, including touch-screen use, tension is adjustable at all pivot points. Integral cable management neatly stores cables.

  • VESA 75mm and 100mm compliant. Includes both VESA Quick Release and Secure Screw monitor mounting options.

  • 10 year warranty.









Environmental Considerations:



  • 100% recyclable at end of life. 51% recycled content.

  • Non-metal components stamped with recycle symbol.

  • LEED credit eligibility. Materials & Resources, MR Credit 4.2. Recycled content: 20% (post-consumer + ½ pre-consumer) (2 points).

  • Innovation in design, credit 1.1-1.4 (1-4 points). Implementation of comprehensive ergonomic program.











Option 1 : Color



S Silver

S - Silver











Option 2 : Mounting Options



  • Two Piece C Clamp (fits surfaces 1/2" - 2-3/4" thick)

  • Grommet Mount (fits surfaces 1/2" - 2-3/4" thick)





Literature (Please open the following documents for more technical information)




Workrite WA1000-C or WA1000-G Willow LCD Monitor Arm for Lighter Screen - Product Sheet

reader-14.jpg - pdf

Workrite WA1000 C or Wa1000 G Willow LED Arm (1-14 lbs Display) - Installation Instruction
reader-14.jpg - pdf
Workrite Willow/Poise Laptop Holder Installation Instructions
reader-14.jpg - pdf

Workrite Logo



Model WA1000-C-S, WA1000-G-S
Manufacturer Workrite Ergonomics
Part Number WA1000-C-S, WA1000-G-S
Color Silver
Weight Capacity Lighter Monitors (1 to 14 lbs)
Extension 22" from the worksurface edge
Tilt (+45/- 90 degree) 135 degree
Pivot 360 degree pivot at base and arm connections, 180 degree pivot at monitor mounting
Height Range 13"
Depth Stored Depth 4¼ in
Thickness Each mount fits surfaces ½"-2¾" thick
Mounting Pattern VESA 75mm and 100mm
Warranty 10 years
Weight WA1000-C-S: 9 lbs. WA1000-G-S: 8 lbs
