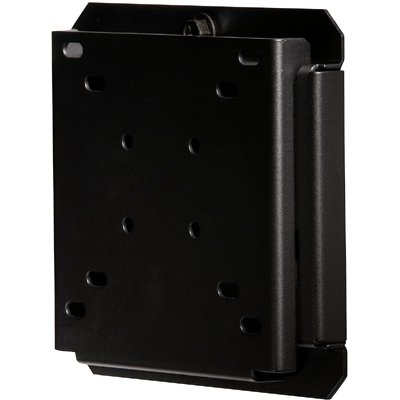

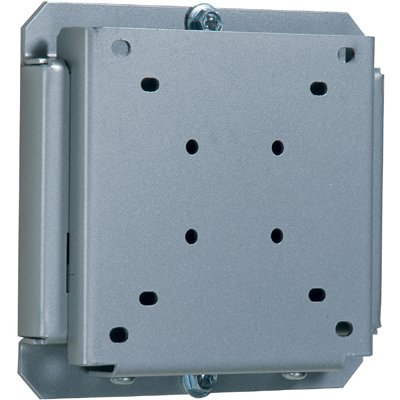

Peerless SF630-AB or SF630-AW Antimicrobial Flat Wall Mount for 10" to 24" LCD Displays up to 80 lbs

Be the first to review this product
Product ID: 17161
Recommended Accessories
List Price: $43.75
Our Price: $24.03
You Save: $19.72
Shipping: $9.75 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart



Description

Peerless SF630 Universal Flat Wall Mount supports virtually any 10" to 24" flat panel screen. The ultra-slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for digital signage, POS stations, or office applications. For a quick and easy installation it may be mounted to a single wood stud, concrete or cinder block. Mounts to metal stud using accessory metal stud fasteners. Compatible with VESA 75mm and 100mm mounting hole patterns

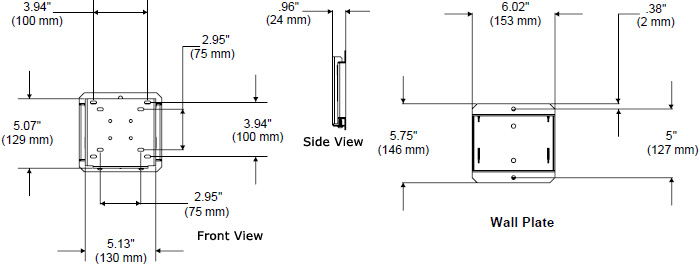

Technical Drawing

Technical Drawing fro Peerless SF630-A Antimicrobial Flat Wall Mount



Technical Specifications

Color

Black, White

Screen Size

10" to 24"

Weight Capacity

80lb (36kg)

Distance From Wall

0.96" (24mm)

Mounting Pattern

VESA 75 and 100mm

Product Dimensions

6.02" x 5.75" x .96" (153 x 146 x 24 mm)

Weight

1.7lb (0.8kg)

Shipping Dimensions

L = 12.75 in (323.9 mm), W = 9.50 in (241.3 mm), H = 2.50 in (63.5mm)

Shipping Weight

2.5lb (1.13kg)

Mounting Surfaces

Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)



Features

  • Fits most 10" to 24" flat panel screens
  • VESA 75 and 100 compatible
  • Additional screen adapter plates also available
  • Ultra-slim design holds screen less than an inch away from the wall
  • Screen adapter plate simply hooks onto the wall plate for quick and easy installation
  • Includes hardware for installation to wood stud, concrete, cinder block and metal stud (accessory required)
  • UL listed
  • Treated with Agion brand antimicrobial to inhibit the growth of bacteria, mold and fungus on the surface of products



Literature (Please open the following documents for more technical information)

Product Sheet - Peerless SF630 Universal Flat Wall Mount

 - pdf

Technical Data - Peerless SF-630 Flat Wall Mount (10"-24")

 - pdf

Installation Instructions - Peerless SF630-AB or SF630-AW Antimicrobial Flat Wall Mount

 - pdf



Product Options/Accessories

Peerless ACC215 Metal Stud Fastener Kit ACC-215 ACC215 Metal Stud Fastener Kit $8.95
Model SF630-AB, SF630-AW
Manufacturer Peerless Mounts
Part Number SF630-AB, SF630-AW
Color Black, White
Distance From Wall 0.96" (24 mm)
Weight Capacity 80 lb (36 kg)
Dimensions (W x H x D) 6.02" x 5.75" x .96" (153 x 146 x 24 mm)
Shipping Weight 2.5 lb (1.13 kg)
Mounting Pattern VESA 75 and 100 mm
Monitor Size 10" to 24"
Shipping Dimensions L = 12.75" (323.9 mm), W = 9.50" (241.3 mm), H = 2.50" (63.5mm).
Weight 1.7 lb (0.8 kg)
Mounting Surfaces Wood stud, concrete, cinder block and metal stud (Metal stud accessory required).
