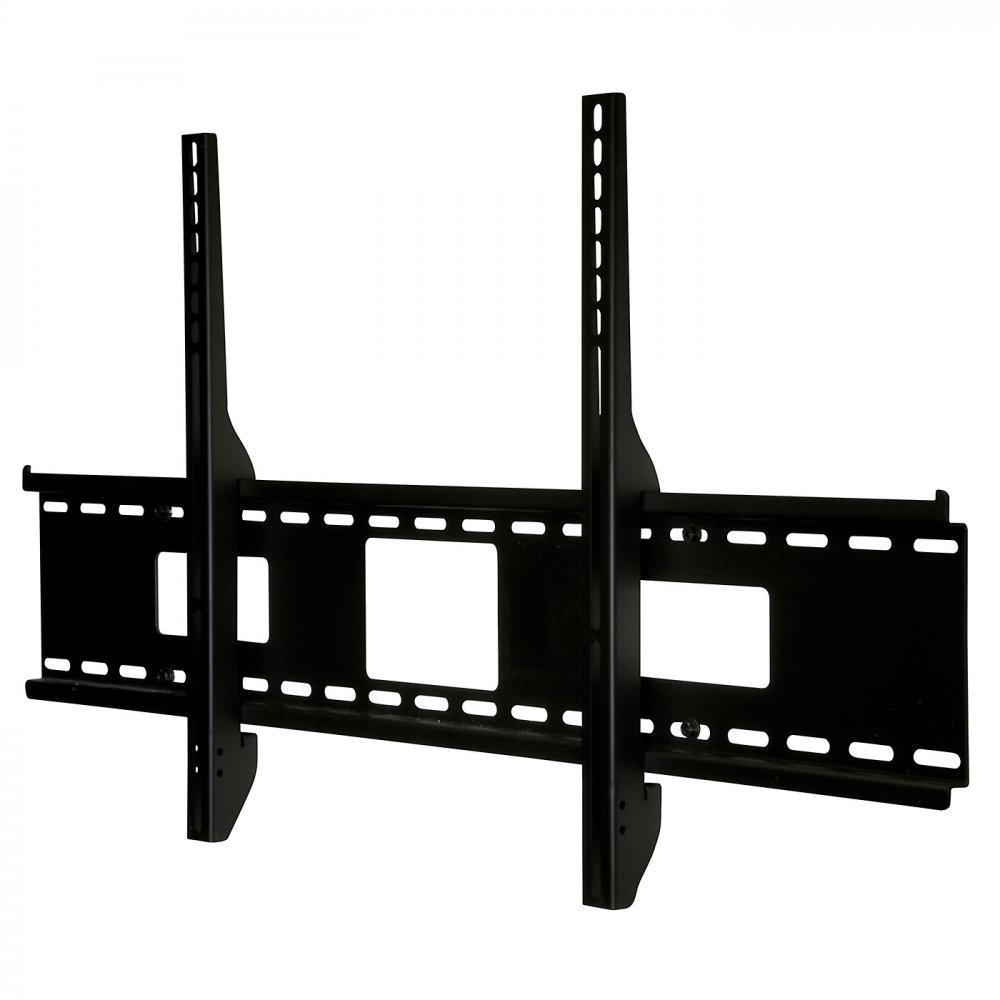

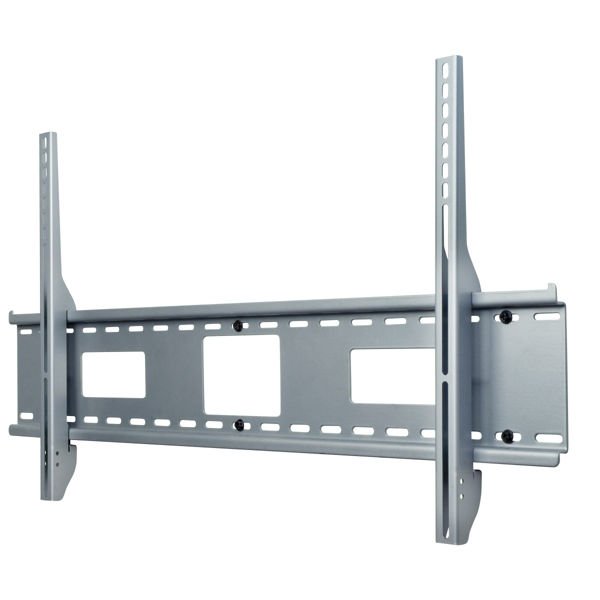

Peerless SF670-AB or SF670-AW Antimicrobial Flat Wall Mount for 42" to 71" LCD Displays up to 250 lbs

Be the first to review this product
Product ID: 17162
Recommended Accessories
List Price: $281.25
Our Price: $129.37
You Save: $151.88
Shipping: $13.95 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States
Add to Cart



Description

Peerless SF670-AB or SF670-AW sturdy wall plate holds screens weighing up to 250 lb while featuring junction box access ports and horizontal screen adjustment up to 8" for ideal screen positioning. Its easy-glide brackets enable quick screen-to-mount attachment with a simple hook-on design. Delivering an ultra-slim profile, this mount is the essential element for low-profile installations of extra-large screens



Technical Drawing

Technical Drawing for Peerless SF670-A Antimicrobial Flat Wall Mount



Technical Specifications

Color

Black, White

Screen Size

42" to 71"

Weight Capacity

250 lb (113 kg)

Distance From Wall

1.75" (44 mm)

Mounting Pattern

Up to 35.75" W x 19.79" H (908 x 503 mm)

Product Dimensions

37.75" x 20.63" x 1.75" (959 x 524 x 44 mm)

Weight

10.7 lb (4.9 kg)

Shipping Dimensions

L= 46.75 in (1187 mm), W= 8.63 in (219 mm), H= 3.88 in (99 mm)

Shipping Weight

13.1 lb (5.94 kg)

Mounting Surfaces

Wood stud, concrete, cinder block and metal stud (Metal stud accessory required)



Features

  • Fits screens with mounting hole patterns up to 35.75" W and 19.8" H
  • Ultra-slim design holds screen only 1.73" from the wall for a clean application
  • Easy-glide bracket design ensures screen is securely attached to wall plate
  • Horizontal screen adjustment up to 8"
  • Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
  • Includes Peerless' Sorted-For-You fastener pack with all necessary mounting and screen attachment hardware
  • UL listed
  • Treated with Agion brand antimicrobial to inhibit the growth of bacteria, mold and fungus on the surface of products



Literature (Please open the following documents for more technical information)

Catalog Page - Peerless SF670 Universal Flat Wall Mount

 - pdf

Technical Data - Peerless SF-670 Flat Wall Mount (42"-71")

 - pdf

Installation Instructions - Peerless SF670 AB or SF670 AW Antimicrobial Flat Wall Mount

 - pdf



Product Options/Accessories

Peerless ACC215 Metal Stud Fastener Kit ACC-215 ACC215 Metal Stud Fastener Kit $8.95
Model SF670-AB, SF670-AW
Manufacturer Peerless Mounts
Part Number SF670-AB, SF670-AW
Color Black, White
Mounting Pattern Up to 35.75" W x 19.79" H (908 x 503 mm)
Distance From Wall 1.75" (44 mm)
Weight Capacity 250 lb (113 kg)
Dimensions (W x H x D) 37.75" x 20.63" x 1.75" (959 x 524 x 44 mm)
Shipping Weight 13.1 lb (5.94 kg)
Weight 10.7 lb (4.9 kg)
Shipping Dimensions L= 46.75" (1187 mm), W= 8.63" (219 mm), H= 3.88" (99 mm).
Monitor Size 42" to 71"
Mounting Surfaces Wood stud, concrete, cinder block and metal stud (Metal stud accessory required).
