We are sorry but item below has been discontinued. Above are some similar products we can offer instead.

Ergotron 97-663 WorkFit-PD Dual Monitor Kit

Be the first to review this product
Product ID: 17211
Our Price: $153.09
Shipping: $12.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

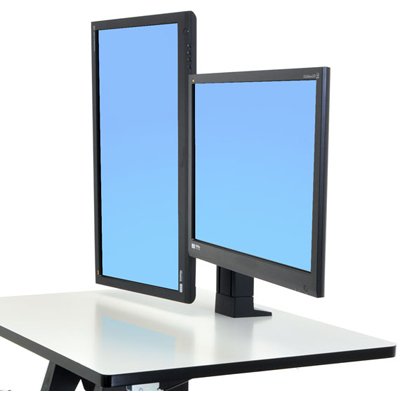

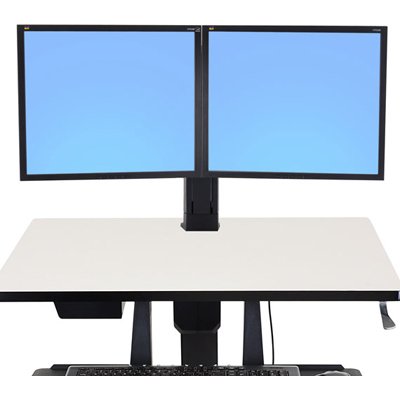

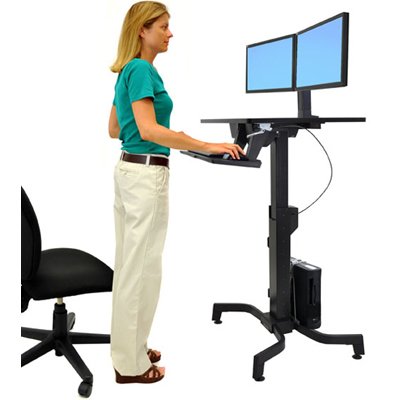

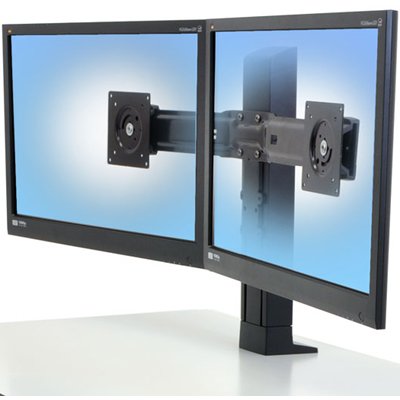

Upgrade your WorkFit-PD to hold two LCDs above the desktop. Ergotron 97-663 offers 5" (13 cm) of height adjustment. Easily lift LCD screens to proper height for ergonomic comfort.



Technical Drawing

Technical Drawing for Ergotron 97-663 WorkFit-PD Dual Monitor Kit



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

12-28 lbs

5.4-12.7 kg

5"

13 cm

- -

360°

MIS-D



Product Information

Part Number

97-663

Description

WorkFit-PD Dual Monitor Kit (black)

Includes

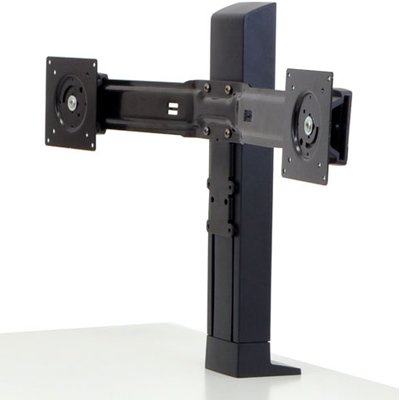

  • 5" lift engine
  • Two (2) monitor pivots
  • Dual bow
  • Cable management tube and ties
  • Attachment hardware

Display Width

Maximum outside width of each display = 21.25" (54 cm)

Weight Capacity

LCD mount capacity = 6-14 lbs (2.7-6.3 kg) each, 12–28 lbs (5.5-12.7 kg) total

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI

Note

33% fewer errors reported when using multi-screen configurations; 24% of workers feel more comfortable when using multiple monitors. Source: NEC Display Solutions, University of Utah, ATI Technologies 2003 study, “Productivity and Multi-Screen Displays

Product Weight

9.7 lbs (4.4 kg)

Shipping Dimensions

27.5" x 9.6" x 5.2" (70 x 24 x 13 cm)

Shipping Weight

11.4 lbs (5.2 kg)

Warranty

Five (5) years



Benefits

  • Holds displays above worksurface, freeing up space.
  • Cost-effective height-adjustable mounting solution.
  • Simple installation and effortless operation.
  • Patented CF motion technology provides premium ease-of-use display adjustment.
  • Increase viewing comfort by reducing eye, back and neck strain.
  • Increase productivity and reduce errors - conclusion of scientific study of multi-monitor workstations.
Model 97-663
Manufacturer Ergotron
Part Number 97-663
Color Black
Monitor Size Up to 22". Maximum outside width of each display = 21.25" (54 cm).
Weight Capacity LCD mount capacity = 6–14 lbs (2.7–6.3 kg) each, 12–28 lbs (5.5—12.7 kg) total
Lift (13 cm) 5 in
Rotation 360 degree
Weight 9.7 lbs (4.4 kg)
Shipping Dimensions 27.5" x 9.6" x 5.2" (70 x 24 x 13 cm)
Shipping Weight 11.4 lbs (5.2 kg)
Warranty Five (5) years
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
