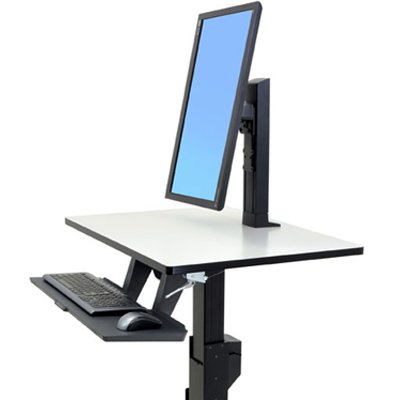

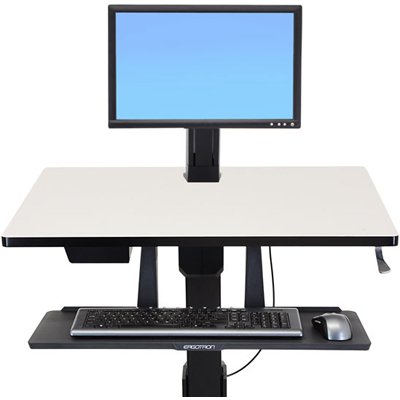

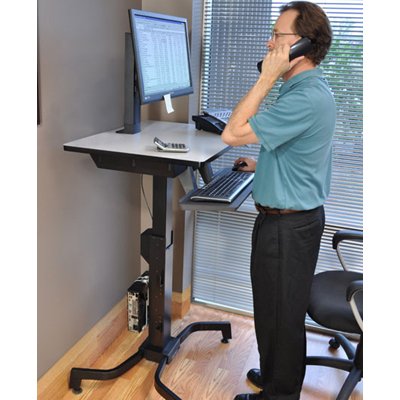

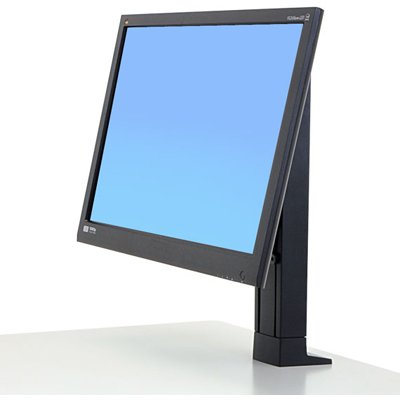

Ergotron 97-664 WorkFit-PD Single LD Monitor Kit

Be the first to review this product
Product ID: 17212
Our Price: $101.76
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Upgrade your WorkFit-PD to hold an LCD above the desktop. Ergotron 97-664 offers 5" (13 cm) of height adjustment and tilt. Easily lift and tilt the screen to proper height for unsurpassed ergonomic comfort.



Technical Drawing

Technical Drawing for ergotron 97-664 WorkFit-PD Single LD Monitor Kit



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

6-16 lbs

2.7-7.3 kg

5"

13 cm

30°

-

360°

MIS-D



Product Information

Part Number

97-664

Description

WorkFit-PD Single LD Monitor Kit (black)

Includes

  • 5" lift engine
  • One (1) LD monitor pivot
  • Cable management tube and ties
  • Attachment hardware

Mounting Standards

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)

Product Weight

6.6 lbs (3.6 kg)

Shipping Dimensions

25.2" x 5" x 6.9" (64 x 13 x 17 cm)

Shipping Weight

7.9 lbs (3.6 kg)

Warranty

Five (5) years



Benefits

  • Holds display above worksurface, freeing up space.
  • Cost-effective height-adjustable mounting solution.
  • Simple installation and effortless operation.
  • Patented CF motion technology provides premium ease-of-use display adjustment.
  • Increase viewing comfort by reducing eye, back and neck strain.
Model 97-664
Manufacturer Ergotron
Part Number 97-664
Color Black
Monitor Size Up to 24"
Weight Capacity 6–16 lbs (2.7–7.3 kg)
Lift (13 cm) 5 in
Tilt 30 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Weight 6.6 lbs (3.6 kg)
Shipping Dimensions 25.2" x 5" x 6.9" (64 x 13 x 17 cm)
Shipping Weight 7.9 lbs (3.6 kg)
Warranty Five (5) years
Rotation 360 degree
