Humanscale M4T Clamp or M4U Bolt Through Mount Dual Monitor Arm

Be the first to review this product
Product ID: 17288
Recommended Accessories
Our Price: $769.00
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

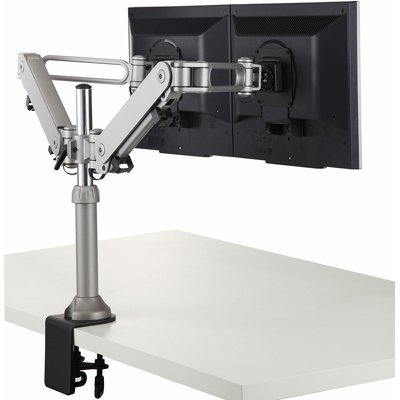

Humanscale M4T Clamp Mount Dual Monitor Arm



Description

M4T: B2 Bracket Mounted Arms, Two M4 Adjustable Double-Link Arms, Two-Piece Heavy-Duty Clamp Mount with Non-Adjustable Standard Post. Accommodates two monitors, 5 - 20 pounds each.

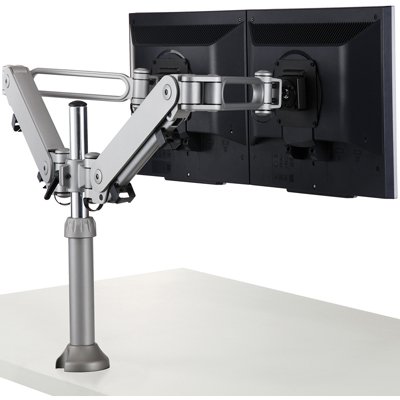

M4U: B2 Bracket-Mounted Arms, Two M4 Adjustable Double-Link Arms, Bolt-Through Mount with Non-Adjustable Standard Post. Accommodates two monitors, 5 - 20 pounds each.

Offering easy adjustment of the monitor's height and depth up to 12 inches, the M4 is an ideal monitor arm solution for the multiple-user workstation. When a new user sits down, he or she can reposition the monitor at an ergonomic height and distance in a matter of seconds. And when the computer is not being used, the monitor pushes away easily to create extra real estate on the work surface.



Features

Featuring effortless height and depth adjustability, Humanscale’s new M4 is perfect for desks that are used by more than one person.

  • Incredibly easy to use
  • Ideal ergonomic viewing for all users
  • 12" range of finger-tip height adjustment
  • 12" range of easy depth adjustment
  • 360º monitor rotation for portrait or landscape viewing
  • 60º range of lateral and vertical monitor tilt for additional viewing adjustability
  • Multiple mounting options: bolt-through mount, clamp mount
  • Can be used with all VESA- compliant monitors (which have a 3" or 4" square hole pattern on the back to which the monitor mount can be attached)
  • Made from 80% recycled and 95% recyclable material
  • Powder coat finish



Technical Specifications

Color

Black and Silver

Mounting Pattern
  • Comes standard with 75mm and 100mm VESA brackets
  • VESA compatible

Rotation

360°

Vertical Angle Range

160°

Lateral Angle Range

200°

Material

Steel and die-cast aluminum construction for strength and durability

Warranty

10-year, 24/7 warranty on gas cylinder; 15-year, 24/7 warranty on all other components



Sustainability

The M4 is a great example of Humanscale's environmental purpose

  • Made predominantly of aluminum, followed by steel and plastic
  • Contains 67% recycled content
  • 100% recyclable
  • Ships in 40% recycled packaging
  • Bulk shipping available for large orders

Earn LEED Credits

The M4 can help building projects achieve valuable LEED credits.

LEED for Commercial Interiors

Materials & Resources

  • Credit 3.3 - Resource Reuse, 30% Furniture & Furnishings
  • Credit 4.1 - Recycled Content, 10%
  • Credit 4.2 - Recycled Content, 20%
  • Credit 5.1 - Regional Materials, 20% Manufactured Regionally

Innovation & Design

Credit 1.1 - 1.4 Innovation in Design: Ergonomics Strategy

LEED for new Construction

Materials & Resources

  • Credit 3.1 - Materials Reuse, 5%
  • Credit 3.2 - Materials Reuse, 10%
  • Credit 4.1 - Recycled Content, 10%
  • Credit 4.2 - Recycled Content, 20%

Innovation & Design

Credit 1.1 - 1.4 Innovation in Design: Ergonomics Strategy

LEED for Existing Buildings: Operations and Maintenance

Innovation in Operations

Credit 1.1 - 1.4 - Innovation in Operations: Ergonomics Strategy



Literature (Please open the following documents for more technical information)

Humanscale M4 Installation Instructions

 - pdf

Humanscale Monitor Arm Position Guide

 - pdf



Model M4B2BAACMSP, M4B2BAABTSP
Manufacturer Humanscale
Part Number M4B2BAACMSP, M4B2BAABTSP
Color Black and Silver
Adjustments Depth and Height up to 12"
Weight Capacity 5 - 20 lbs each
Rotation 360 degree
Range 160° vertical angle range and 200° lateral angle range
Material Steel and die-cast aluminum construction for strength and durability
Mounting Pattern Comes standard with 75mm and 100mm VESA brackets. All VESA- compliant monitors (which have a 3" or 4" square hole pattern on the back to which the monitor mount can be attached)
Warranty 10-year, 24/7 warranty on gas cylinder; 15-year, 24/7 warranty on all other components
Tilt 60 degree
Mounting Options Desk
