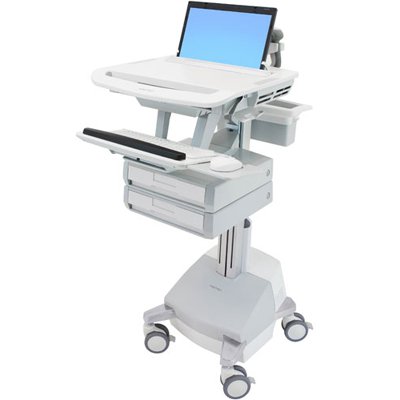

Ergotron SV42-3121-1 SV Laptop Cart, SLA Powered, 2 Drawers

Be the first to review this product
Product ID: 17558
Recommended Accessories
Our Price: $3,349.00
Shipping: $288.95 * Oversized box 185 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Ergotron SV42-3121-1 stays productive and on the go with our certified power system. This innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication



Technical Drawing

Technical Drawing for Ergotron SV42-3121-1 StyleView Medical Laptop Cart, SLA Powered, 2 Drawers



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3" Up to 22 lbs

10 kg

20"

51 cm

- - - -



Product Information

Part Number

  • North America = SV42-3121-1
  • Europe = SV42-3121-2
  • United Kingdom/Ireland = SV42-3121-3
  • Hong Kong/Malaysia = SV42-3121-3
  • Australia/New Zealand = SV42-3121-4
  • China = SV42-3121-5
  • Japan = SV42-3121-6
  • Saudi Arabia (UK standard) = SV42-3121-7
  • Saudi Arabia (EU standard) = SV42-3121-8

Description

StyleView Laptop Cart, SLA Powered, 2 Drawers (white, grey and polished aluminum)

Includes

  • Auto-locking drawer system (ADS)
  • Primary single drawer
  • Supplemental single drawer
  • Drawer dividers
  • Worksurface
  • Secure laptop compartment
  • Four-port USB hub

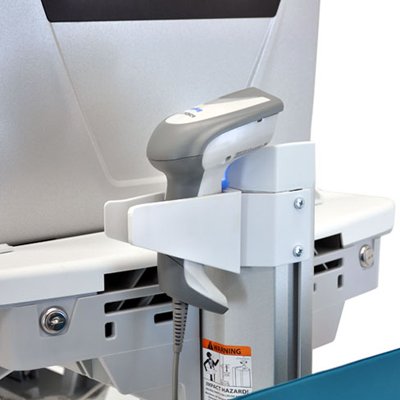

  • Scanner holder bracket
  • Mouse holder
  • Wrist rest

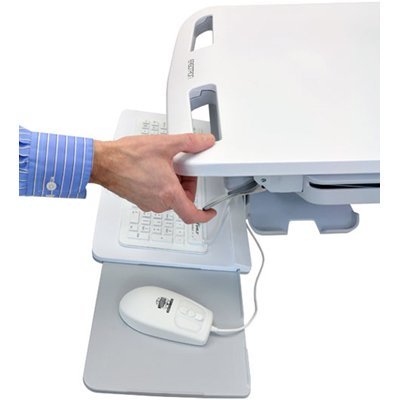

  • Back-tilt keyboard tray
  • Keyboard lights
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (lockable)
  • Two-battery 66 Ah power system
  • 10-foot (3 m) coiled cord
  • Three AC outlets
  • Power system user interface
  • StyleLink software

Maximum Laptop Size

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity

Total maximum load on height-adjustment assembly = 22 lbs (10 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg)

Laptop and Worksurface

Adjust 20" (51 cm) in tandem

True Ergonomics

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch

Safe

  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty
  • Front-locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country or the world
  • Covered by Global Service Program - 24/7 coverage
All the Details Covered

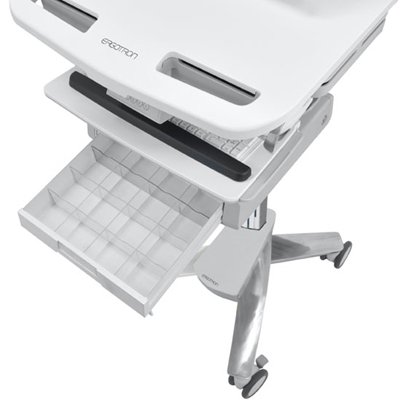

  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

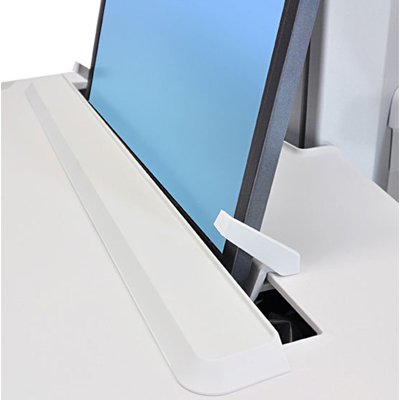

  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time
  • Pre-routed cables provide quicker integration with equipment
  • TAA (Trade Agreements Act) compliant
  • Universal mounting slot for accessories and equipment
  • A unique cable management system conceals and organizes cords, making cleaning easy
  • Ships fully assembled and is easily accessible from container
  • Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts)
  • Four-port USB hub
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
  • Laptop screen slot cover: Protection from large spills on the worksurface while retaining easy access to the laptop’s power button
Compatibility and Dimensions
  • Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
  • Worksurface Dimensions: 22"W x 19.6"D (562 x 498 mm)
  • VAC: SV42-3121-1 = 120V/60Hz; SV42-3121-2, SV42-3121-3, SV42-3121-4 = 230V/50Hz; SV42-3121-5 = 220V/50Hz SV42-3121-6 = 100V/50Hz
  • Grounded Plug: SV42-3121-1 = NEMA 5-15P Hospital Grade; SV42-3121-2 = European CEE 7; SV42-3121-3 = UK BS 1363 SV42-3121-4 = AS/NZS 3112 SV42-3121-5 = GB2009-1, GB1002-1; SV42-3121-6 = JIS 8303 Note: In Switzerland, a customer-supplied adaptor is required
  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics

Shipping Dimensions

24.5" x 34" x 56" (62 x 87 x 142 cm)

Shipping Weight

185 lbs (84 kg); actual cart weight = 151 lbs (68.5 kg)

Warranty

Five (5) years for cart’s mechanical components, two (2) years on power module



Benefits

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
  • Truly ergonomic design accommodates the largest range of caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
  • Surfaces are treated with antimicrobial for product protection
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades
  • Auto-locking drawer system: Simple and efficient non-controlled medication management at the point-of-care reduces opportunities for errors; security system stores PINs for up to 100 users
  • Drawers include position able dividers to create multiple compartments
  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A
  • Dependable fifth-generation power system with easy to replace batteries
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment
Model SV42-3121-1
Manufacturer Ergotron
Part Number SV42-3121-1
Color White, grey and polished aluminum
Maximum Laptop Size 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
Weight Capacity Total maximum load on height-adjustment assembly = 22 lbs (10 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg); large drawer ≤ 2 lbs (1 kg)
Lift (51 cm) 20 in
Dimensions Internal Dimensions: large drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; compartment for laptop = 18.3"W x 14.9"D x 2.5"H (466 x 378 x 64 mm)
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 185 lbs (84 kg); actual cart weight = 151 lbs (68.5 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module
