Ergotron 24-372-085 Tablet Management Desktop 16 for iPad

The Ergotron 24-372-085 charges and syncs upto 16 iPads, iPads Minis and iPod Touch devices. Please see Ergotron 24-373-085 if you want the ability to charge and sync more than 16 devices.

Be the first to review this product
Product ID: 17568
Recommended Accessories
Our Price: $668.99
Shipping: $49.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

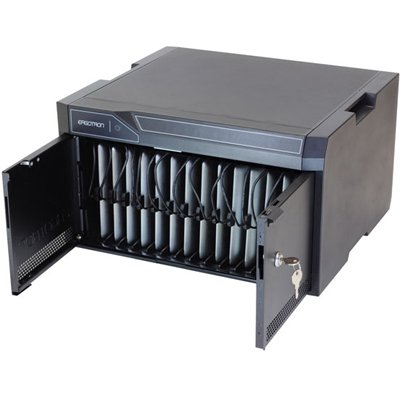

Ergotron 24-372-085 is ideal to sync, charge, secure and manage up to 16 devices. The universal design accommodates the Apple iPad, iPad mini and iPod touch. Durable steel doors with robust three-point lock and key assembly provide strong theft deterrence.



Technical Drawing

Technical Drawing for Ergotron 24-372-085 Tablet Management 16 Device Charging Module





Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 10" Up to 2.2 lbs

1.0 kg

- - - - -



Product Information

Part Number

  • North America (ISI) = 24-372-085
  • Europe = 24-378-085
  • United Kingdom/Ireland = 24-375-085

Description

Tablet Management Desktop Module, 16 device capacity (black)

Tablet Slot Size

7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm). Tablet, power cord, and any cover or case must fit within these dimensions

Weight Capacity

Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)

Certification

  • UL 60950-1 Information Technology Equipment - Safety, CAN/CSA C22.2 No. 60950; UL 1667 Tall Institutional Carts for use with Audio-, Video-, and Television-Type Equipment
  • IEC 60950-1 worldwide safety standard
  • For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024
  • Complies with USB 2.0 standard
  • Acoustic testing indicates very quiet operation at 41.4 dBA

Compatible Devices

  • iPad mini
  • iPad (4th generation)
  • iPad (3rd generation)
  • iPad 2
  • iPad
  • iPod touch (5th generation)
  • iPod touch (4th generation)
  • iPod touch (3rd generation)
  • iPhone 4S

Tablet Cases

The following iPad 2/iPad (3rd generation) cases are tested and confirmed to work with the Tablet Management Module: Apple iPad Smart Case, Belkin Protective Case with Stand, Belkin Tri-Fold Folio, Belkin Snap Shield, Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Intellicase, Gumdrop Drop Tech, Hard Candy Street Skin, Logiix Roadster II, Otterbox Defender Series (without separate top cover), Otterbox Reflex Series, STM Skinny 3, STM Grip, Targus Slim Case, Trident Aegis, Trident Kraken AMS. Other cases may fit if smaller than tablet slot size: 7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm)

Charging Capability
  • Provides full 2.1A charging capability to each device
  • All tablets charge at the same time using the power provided through one wall plug. Module does not need to cycle power
  • Tablets will not sync and charge at the same time. Master laptop must be unplugged from auxiliary USB outlet for tablets to charge
Syncing Capability

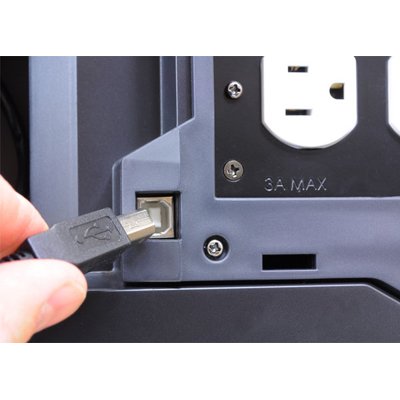

  • Syncs tablets using USB 2.0. External USB 2.0-Standard B receptacle provided to plug in laptop
  • Syncing can be done using a Macintosh or PC laptop. Module automatically switches from charging to syncing mode when the laptop is plugged into the USB outlet on the module. USB cable must be unplugged from cart to return to charging mode
  • Can be setup and configured using Apple Configuration software available from Apple. Can be synced using iTunes software (version 9.1 or later) available from Apple
  • Syncing time will vary by the number of devices and the amount of data being transferred. This chart shows expected syncing times using the Tablet Management Cart/Module with the designated number of iPad 2 devices and data. Data was collected us using a MacBook Pro with MacOS X v10.5 and iTunes 9.1. Your times may vary slightly

Designed

For use with cables included with your devices. Compatible with Apple 30-pin and Lightning connectors, and with the Ergotron 30-pin to USB Cable Kit (pt # 97-766). Cables are NOT included with the desktop

Numbered Storage Locations

Help keep carts organized

Auxiliary Electrical Outlet

Max current = 3A at 100-120V; max current = 1.5 at 230V

Power Cord

12.5' (3.8 m) long

Product Dimensions

18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm)

Product Weight (unloaded)

29 lbs (13.2 kg)

Shipping Dimensions

21.2" x 18.6" x 12.8" (53.8 x 47.3 x 32.5 cm)

Shipping Weight

35 lbs (15.8 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits

Universal Design

  • Sync and charge up to 16 Apple iPad, iPad mini and iPod touch devices. Compatible with both 30-pin and Lightning connector cables
  • Full 2.1A charging power for Apple devices
  • Universal design provides flexibility as technology changes

Solid, Durable Construction

  • Steel tube and aluminum extrusion framework; steel access doors
  • Durable, easy-to-clean exterior composed of high-grade fire-retardant ABS

Secure Storage

  • Durable steel doors with three-point lock assembly provide strong theft deterrence

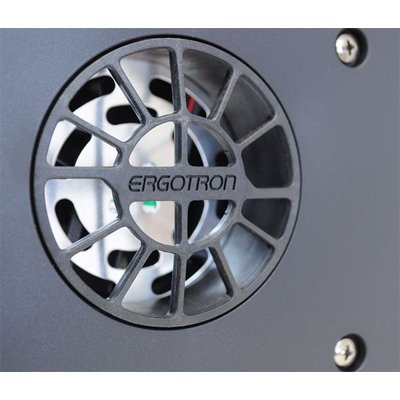

  • Ventilated enclosed storage area keeps tablets safe, secure and cool

Easy Setup

  • Quick one-time customer setup of cables. Choose our 30-pin to USB Cable Kit (pt # 97-766) for the perfect-size cables, or use the 30-pin or Lightning cables provided with your Apple devices (cables not included with Tablet Management Desktop)
  • Clean, neat cable management within dedicated drawer located on each module. Secure drawer is separate from tablet compartment, limiting unauthorized access to cables

Certified for Safety

  • Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare or enterprise setting
  • Tested and certified to UL 60950-1 and UL 1667 standards, FCC requirements and all applicable country-specific regulations
Model 24-372-085
Manufacturer Ergotron
Part Number 24-372-085
UPC 698833039351
Color Black
Tablet Size 7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm)
Weight Capacity Each tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)
Compatible iPad mini, iPad (4th generation), iPad (3rd generation), Pad 2, iPad, iPod touch (5th generation), iPod touch (4th generation), iPod touch (3rd generation), iPhone 4S
Auxiliary Electrical Outlet max current = 3A at 100-120V; max current = 1.5 at 230V
Power Cord 12.5' (3.8 m) long
Dimensions 18.3"W x 16.2"D x 10.4"H (46.5 x 41.1 x 26.4 cm)
Weight (unloaded) 29 lbs (13.2 kg)
Shipping Dimensions 21.2" x 18.6" x 12.8" (53.8 x 47.3 x 32.5 cm)
Shipping Weight 35 lbs (15.8 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
Display Type Tablet
