Ergotron 60-842-223 Neo-Flex Ceiling Mount

Be the first to review this product
Product ID: 17596
Our Price: $241.17
Shipping: $44.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Ergotron 60-842-223 is a sturdy single flat panel ceiling mount, with universal adapter, that is ideal for any ceiling application - whether TV viewing or digital signage.

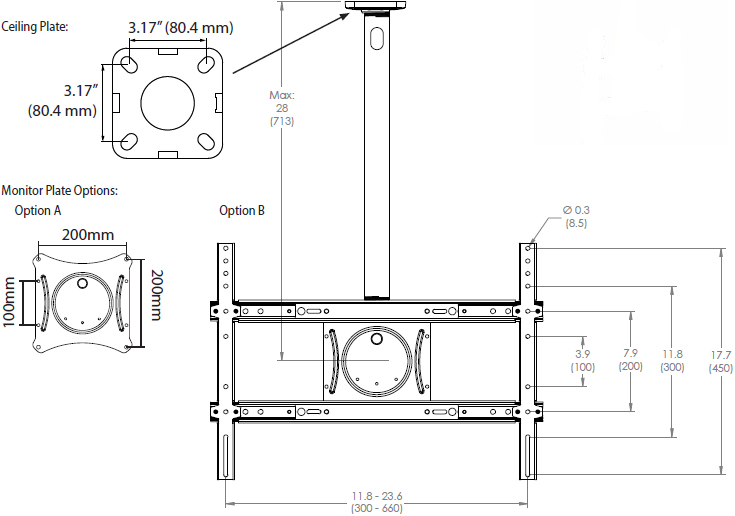

Technical Drawing

Technical Drawing for Ergotron 60-842-223 Neo-Flex Ceiling Mount



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

32"-65"

Up to 125 lbs

56.7 kg

- 25° - - MIS-E/F



Product Information

Part Number

60-842-223

Description

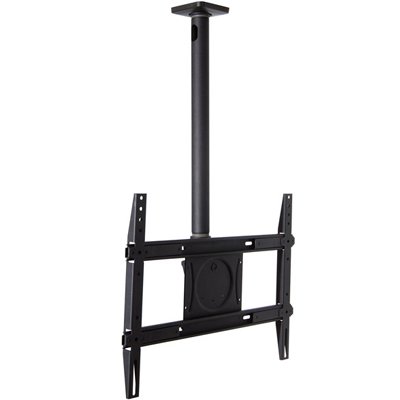

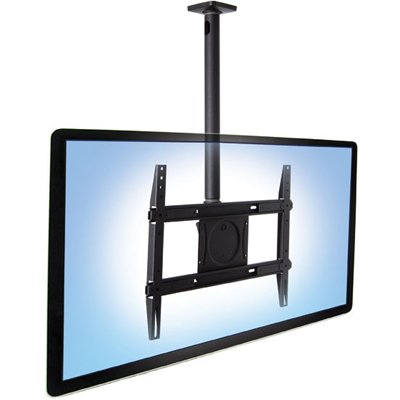

Neo-Flex Ceiling Mount for Single Large Display (black)

Includes

  • Ceiling plate
  • Tilt hanger
  • Adaptor plate

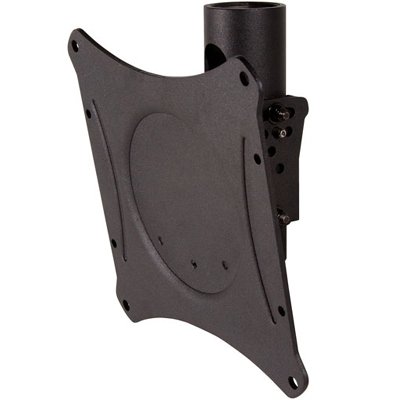

  • Universal adaptor
  • 24" 1.5"-diameter NPT pipe
  • Installation and Grade 5 hardware kits

Display

Can be installed in either a landscape or portrait orientation

Universal Monitor Attachment

Mounting holes must fit within spacing range below... Horizontal = 200 mm (min.) to 660 mm (max.). Vertical = 100 mm (min.) to 450 mm (max.)

Weight Capacity

Up to 125 lbs (56.7 kg). This product has been tested to hold four times its maximum load capacity per UL 1678 standard (do NOT exceed listed weight capacity in actual use).

Full Compliance

With RoHS directive

Shipping Dimensions

24.4" x 20.9" x 3.9" (62 x 53 x 10 cm)

Shipping Weight

24 lbs (10.9 kg)

Warranty

Five (5) years



Benefits

  • Install display in either portrait or landscape orientation

  • Includes universal adapter for greater panel compatibility

  • Tension adjustment for variable tilt or locking pin mechanism for precise positioning in 5º increments

  • Integrated cable management routes cables through NPT pipe and ceiling plate

  • Lift n’ Lock for quick installation

  • Post-install height adjustment and leveling

  • Anti-theft security feature





Model 60-842-223
Manufacturer Ergotron
Part Number 60-842-223
UPC 698833031805
Color Black
Monitor Size 32"-65"
Weight Capacity Up to 125 lbs (56.7 kg)
Tilt 25 degree
Mounting Pattern Mounting holes must fit within spacing range: Horizontal = 200 mm (min.) to 660 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.)
Shipping Dimensions 24.4" x 20.9" x 3.9" (62 x 53 x 10 cm)
Shipping Weight 24 lbs (10.9 kg)
Warranty Three (3) years
