Ergotron DM10-1001-1 Tablet Management Wall Mount 10

The Ergotron DM10-1001 is a wall mount unit that charges and syncs up 10 iPads, iPad Minis and iPod Touch devices.

Be the first to review this product
Product ID: 17699
Our Price: $923.29
Shipping: $54.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

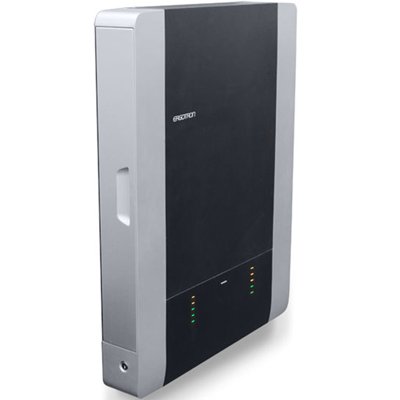

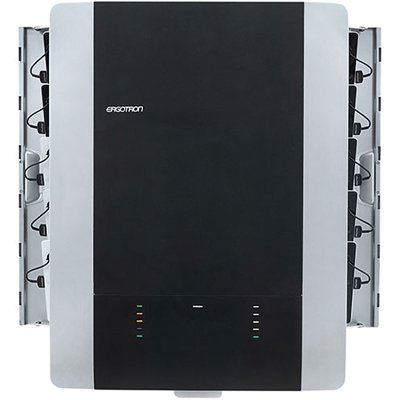

Ergotron DM10-1001-1 is a sleek, low-profile enclosure that accommodates the Apple iPad, iPad mini and iPod touch. It can sync, charge and store up to 10 devices. This includes pre-installed 30-pin cables. Durable steel doors with robust six-point lock and key assembly provide strong theft deterrence. Features full 2.1A charging capability. Tested and certified to UL 60950-1 standards.



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 10.1"

Up to 2.4 lbs

1.1 kg

- - - - -



Product Information

Part Number

  • North America = DM10-1001-1
  • Europe = DM10-1001-2
  • United Kindom/Ireland = DM10-1001-3
  • Hong Kong/Malaysia/Singapore = DM10-1001-3
  • Australia/New Zealand = DM10-1001-4
  • China = DM10-1001-5
  • Japan = DM10-1001-6

Description

Tablet Management Wall Mount, 10 device capacity, pre-installed 30-pin cables (black)

Includes
  • Wall-mount cabinet
  • 6-foot (1.5 m) power cord
  • 10 charging cables (30-pin)
  • External USB 2.0B port (for connecting laptop)

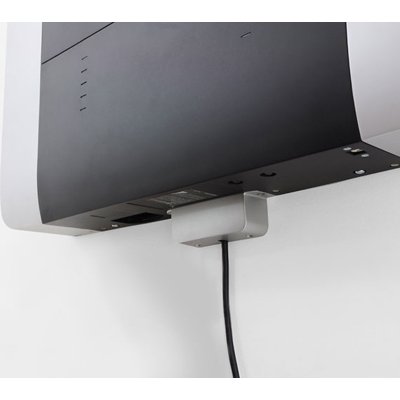

  • Power cord cover
  • 2 wall-mount brackets
  • Mounting hardware
  • Installation template
  • Security-screw driver
  • 90-degree Phillips driver

Maximum Tablet Size

7.9"H x 10.2"D x 0.9"W (20 x 25.9 x 2.2 cm)

Weight Capacity

Individual tablets up to 2.4 lbs (1.1 kg)

Easy Installation

1. Mount two brackets on the wall using installation template;

2. Hang wall mount unit;

3. Secure to wall with security screws;

4. Install power cord cover;

5. Plug iPad devices into unit;

6. Plug Tablet Management Wall Mount into the wall outlet

Certification

  • UL 60950-1 Information Technology Equipment - Safety CAN/CSA C22.2 No. 60950 IEC 60950-1 worldwide safety standard
  • For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024
  • Complies with USB 2.0 standard

Compatible Devices

  • iPad (3rd generation)
  • iPad 2
  • iPad
  • iPod touch (4th generation)
  • iPod touch (3rd generation)
  • iPhone 4S
  • iPhone 3GS

Tablet Cases

The following iPad 2/iPad (3rd generation)/iPad (4th generation) cases are tested and confirmed to work with the Tablet Management Wall Mount: Apple iPad Smart Case, Belkin Protective Case with Stand, Belkin Tri-Fold Folio, Belkin Snap Shield, Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Intellicase, Griffin Survivor, Gumdrop Drop Tech, Hard Candy Street Skin, Kensington BlackBelt, Logiix Roadster II, Otterbox Defender Series (without separate top cover), Otterbox Reflex Series, Speck FitFolio, STM Skinny 3, STM Grip, Targus SafePort Rugged and Rugged Max Pro, Targus Slim Case, Targus Versavu, Trident Aegis, Trident Kraken AMS. Maximum tablet size with case: 7.9"H x 10.2"D x 0.9"W (20 x 25.9 x 2.2 cm)

Cooling/Ventilation

One 5V DC continuous operation fan

Power System

Input: 100-240V~, 2.0A, 50/60 Hz

Temperature Range

Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F)

Relative humidity (maximum)

Operating 10%-90% (non-condensing); Storage 5%-95% (non-condensing)

Altitude (maximum)

2000 m (6,562 ft)

Environmentally Clean

RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

Power Cord

6' (1.8 m) long

Product Dimensions

23.2"W x 31.8"H x 4.0"D (59 x 80.9 x 10.2 cm)

Shipping Dimensions

36.5" x 26.4" x 7.0" (92.6 x 67 x 17.7 cm)

Shipping Weight

39.5 lbs (17.9 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits

Safe and Secure

  • Tested and certified to UL 60950-1 standards, FCC requirements and all applicable country-specific regulations

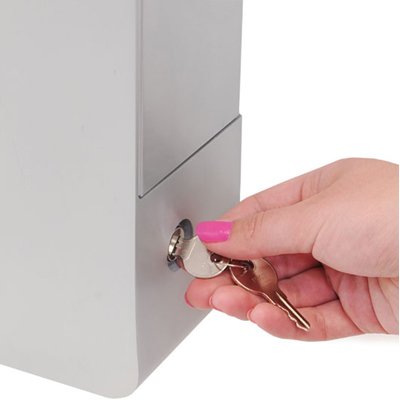

  • Six-point lock assembly provides strong theft deterrence; includes security screws to attach product to the wall
  • Fan and ventilation system maintains safe operating temperatures
  • Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare or enterprise setting

Top-Rated Sync & Charge

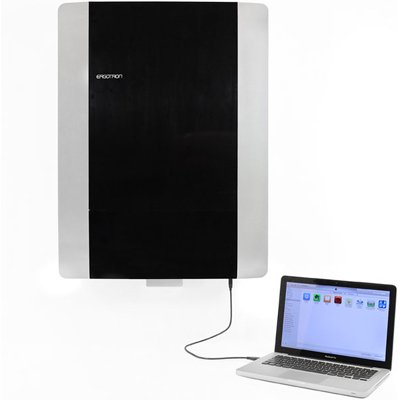

  • Built-in syncing capability; simultaneously sync up to 10 devices by connecting your laptop via the cabinet’s USB port
  • Full 2.1A charging capability

Slim and Open Design

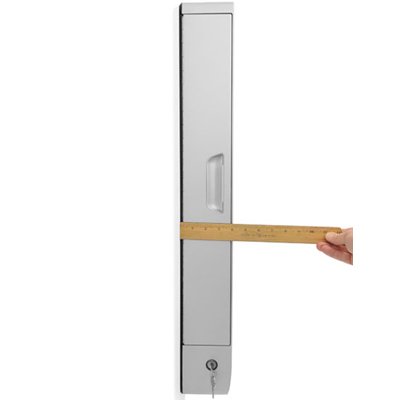

  • Fits most anywhere: very low profile - only 4 inches (10 cm) deep, even with access doors open
  • Accommodates most iPad cases, including the popular Otterbox Defender and Griffin Survivor

Easy Set-Up and Operation

  • Choose a pre-installed 30-pin or Lightning cable option
  • Quick, simple installation includes mounting template

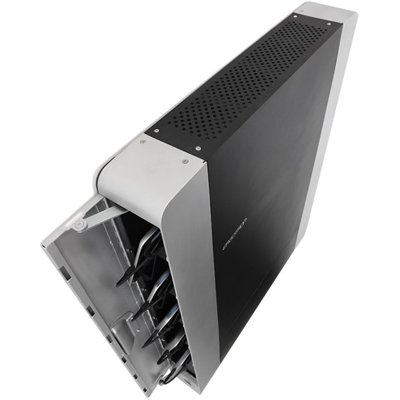

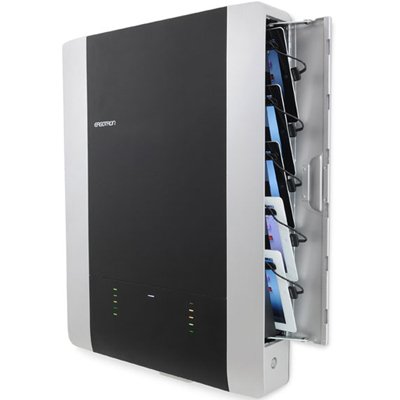

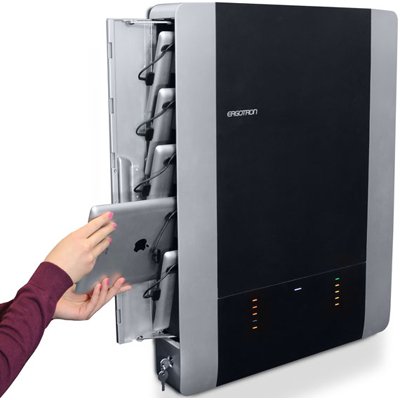

  • Patent-pending Show & Stow technology: extends iPad devices to the user when the door is opened for easy storage and removal
  • Easy to clean; sleek and smart design hides device and cord clutter
  • ISI (Individual Status Indicator) LEDs provide power and charging status of each individual device at a glance
Model DM10-1001-1
Manufacturer Ergotron
Part Number DM10-1001-1
UPC 698833037579
Color Black
Tablet Size 7.9"H x 10.2"D x 0.9"W (20 x 25.9 x 2.2 cm)
Weight Capacity Individual tablets up to 2.4 lbs (1.1 kg)
Compatible iPad (3rd generation), iPad 2, iPad, iPod touch (4th generation), iPod touch (3rd generation), iPhone 4S, iPhone 3GS
Power Input: 100-240V~, 2.0A, 50/60 Hz
Temperature Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F)
Humidity Maximum: Operating 10%-90% (non-condensing); Storage 5%-95% (non-condensing)
Altitude Maximum: 2000 m (6,562 ft)
Power Cord 6' (1.8 m) long
Dimensions 23.2"W x 31.8"H x 4.0"D (59 x 80.9 x 10.2 cm)
Shipping Dimensions 36.5" x 26.4" x 7.0" (25.9 x 20.1 x 2.3 cm)
Shipping Weight 39.5 lbs (17.9 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
