We are sorry but item below has been discontinued.

Workrite Sierra HXL Crank P Peninsula Sit-to-Stand Workcenter

Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less.
Be the first to review this product
Product ID: 17730
Options
List Price: $1,631.00
Our Price: $978.60
You Save: $652.40
Shipping: $0.00 * See delivery options below
Usually ships in 10 to 15 business days
* applies to Contiguous United States

Description

A great alternative for the healthy workforce. The Workrite Sierra HXL Crank is engineered to enable manual adjustability requiring minimal amounts of human force, making them a good alternative for the healthy workforce or for areas where frequent adjustments are not required.


The HXL Crank adjusts from 25.5"-43" and will accommodate the average male or female worker, making it a good solution for companies seeking limited height adjustability. It  adjusts at a rate of 5.6 turns per inch even with more than 125 pounds of equipment on the worksurface.


Sierra HXL Crank is available in 3 contemporary finishes with two foot design options that can be selected to build the best workcenter for each specific application.



Dimensions

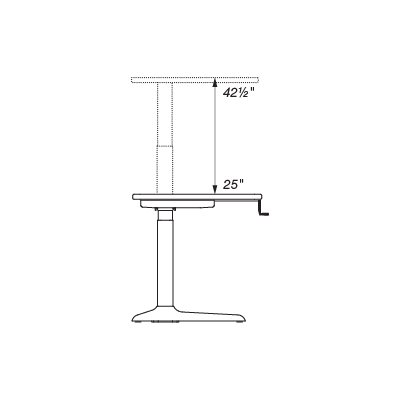

Dimension of Workrite Sierra HXL Crank Table



Features

  • Frame options: 2-leg frames
  • 24" or 30" depths
  • Widths from 36" to 72" depending on shape
  • Finish options: Silver, Charcoal, and White
  • Height Range: 25.5" to 43"
  • Payload Capacity: 125 pounds
  • Travel Speed: 1 inch = 5.6 turns





Option 1 and 2: Desk Top Position and Surface Dimensions

P Peninsula Left (Round P section is on the Left side, in the back)

P Peninsula Right (Round P section is on the Right side, in the back)

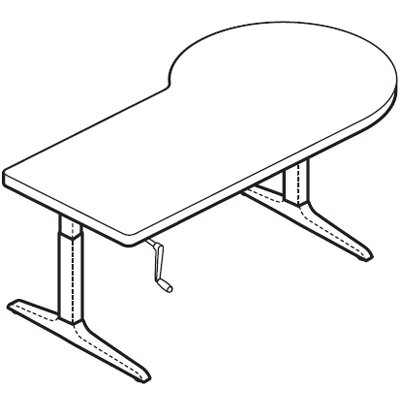

Workrite Sierra HXL Crank P Peninsula 2 Legs Left

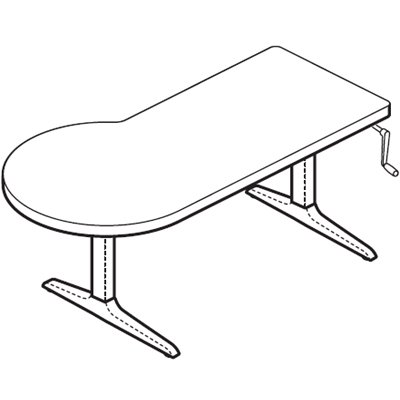

Workrite Sierra HXL Crank P Peninsula 2 Legs Right

Worksurface 58" x 35" x 29" T583529PL-B3 and Frame Set SCFHXL48

Worksurface 58" x 29" x 35" T582935PR-B3 and Frame Set SCFHXL48

Worksurface 70" x 35" x 29" T703529PL-B3 and Frame Set SCFHXL60

Worksurface 70" x 29" x 35" T702935PR-B3 and Frame Set SCFHXL60

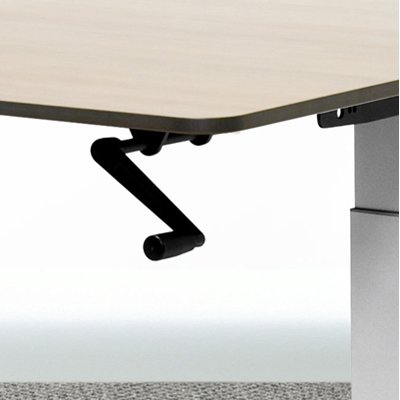

Option 3: Crank Handle

Sierra HXL Crank Handle Right Side

Left Side

Sierra HXL Crank Handle Left Side

Right Side



Option 4: Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Frame Base Color Silver

Silver (S)

Frame Base Color Charcoal

Charcoal (C)

Base Frame Color White

White (W)



Option 5: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Laminate Designer White 0D35460

Designer White

0D35460

Laminate Black 0159560

Black

0159560

Fashion Gray 0D38160

Fashion Gray

0D38160

Laminate Titanium EV 0481060

Titanium EV

0481060

Laminate Silicon EV 0481160

Silicon EV

0481160

Laminate Nickel EV 0481360

Nickel EV

 0481360



Laminate Tungsten EV 0481460

Tungsten EV

0481460

Laminate Canyon Zephyr 0484260

Canyon Zephyr

0484260

Laminate Misted Zephyr 0484360

Misted Zephyr

0484360

Laminate Morro Zephyr 0484660

Morro Zephyr

0484660

Laminate Shadow Zephyr 0485760

Shadow Zephyr

0485760

Laminate Wild Cherry 0705460

Wild Cherry

0705460



Laminate Beigewood 0785060

Beigewood

0785060

Laminate Monticello Maple 0792538

Monticello Maple

0792538

Laminate River Cherry 0793738

River Cherry

0793738

Laminate Skyline Walnut 7964K12

Skyline Walnut

7964K12

Laminate Kensington Maple 1077660

Kensington Maple

1077660

Laminate Black (Woodgrain) 1595K78

Black (Woodgrain)

1595K78



Laminate Windsor Mahogany 0703960

Windsor Mahogany

0703960





Option 6: Edge Treatments

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Edgeband Designer White 348

Designer White

348

Edgeband Black 300

Black

300

Edgeband Folkstone 004

Folkstone

004

Edgeband Shaker Gray 026

Shaker Gray

026

Edgeband Pepperdust 007

Pepperdust

007

Edgeband Brownstone 006

Brownstone

006



Edgeband Jute 395

Jute

395

Anchor Gray 048

Anchor Gray

048

Edgeband Kodiak Brown 089

Kodiak Brown

089

Edgeband French Roast 023

French Roast

023

Edgeband Rainier Cherry 152

Rainier Cherry

152

Edgeband Beigewood 250

Beigewood

250



Edgeband Candlelight Maple 206

Candlelight Maple

206

Edgeband River Cherry 249

River Cherry

249

Edgeband Graphite 008

Graphite

008

Edgeband Sugar Maple 153

Sugar Maple

153

Edgeband Windsor Mahogany 151

Windsor Mahogany

151





Option 7: Foot Set

Flat Foot Set

Flat Foot Set

Styled Foot Set

Styled Foot Set

Flat foot or the styled foot for use with any Workrite electric height adjustable workcenter. Both options are available in finishes that coordinate with our frame sets and in 23" or 29" lengths.





Option 8: Casters

Sierra Locking Casters

Sierra Locking Casters

Features

  • Low profile locking casters 2" W x 1.5" H
  • Casters raise work centers by 1" versus installed adjustable glides
  • Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
  • Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters



The following Casters are available

  • 95234 - 4 casters for 2 leg tables
  • 95235 - 5 casters for 3 leg tables





Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.


Worksurfaces are pre-drilled with mounting location for frame sets or bases.


Joining kits are provided with all two piece worksurfaces.


Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.



Important Notes:

  • Workcenters ship unassembled and require simple hand tools to install.

  • If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

  • If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

  • All workcenters have adjustable glides providing 0.5" of adjustment.

  • Mobile pedestals may limit lower height range.

Model SCFHXL603630PL, SCFHXL723630PL, SCFHXL843630PL, SCFHXL603036PR, SCFHXL723036PR, SCFHXL843036PR
Manufacturer Workrite Ergonomics
Part Number SCFHXL603630PL, SCFHXL723630PL, SCFHXL843630PL, SCFHXL603036PR, SCFHXL723036PR, SCFHXL843036PR
Height Range 25"-42½" at 5.2 turns/inch
Lifting Capacity 225 lbs
Desk Type Crank
Desktop Shape Peninsula
