We are sorry but item below has been discontinued.

Workrite Sequoia (1-6) Monitor Stand Desk Mount

Bottom pole for Triple: 5-7⁄8" (min) to 14-1⁄8" (max). Top pole for Triple: 21-3⁄8" (min) to 28-¾" (max). Bottom pole for Double: 4-7⁄8" (min) to 12" (max). Top pole for Double: 19-1⁄8" (min) to 27-1⁄8" (max). Bottom pole for Single: 4-½" (min) to 13-½" (max). Top pole for Single: 18-5⁄8" (min) to 27-7⁄8" (max).
Be the first to review this product
Product ID: 17758
Options
List Price: $198.00
Our Price: $118.80
You Save: $79.20
Shipping: FREE SHIPPING *
Usually ships in 3 to 5 business days
* applies to Contiguous United States



Description

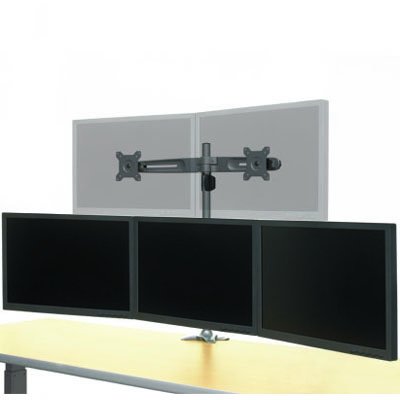

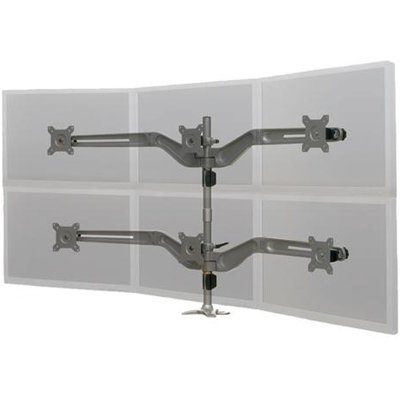

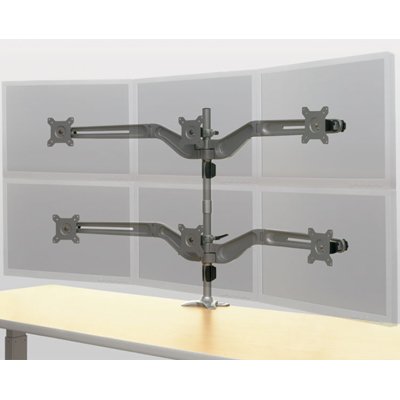

Array critical information, safety and securely. The Workrite Sequoia addresses the growing trend of multiple flat panel display use and provides the flexibility and strong support required by today’s information workers. Sequoia supports from 1 to 6 monitors, each of which can weigh up to 16 pounds. The wide arms accommodate displays up to 23" wide and 15" high. Place multiple Sequoias in a row and the number of monitors you can support is endless.

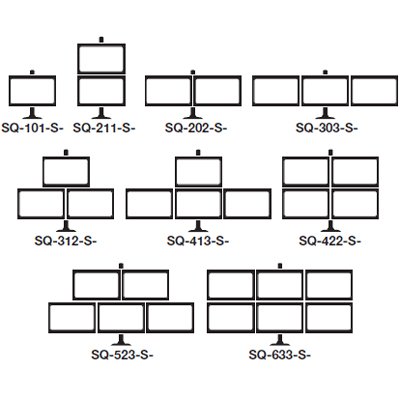

workrite sequoia monitor arm configuration

Configurations

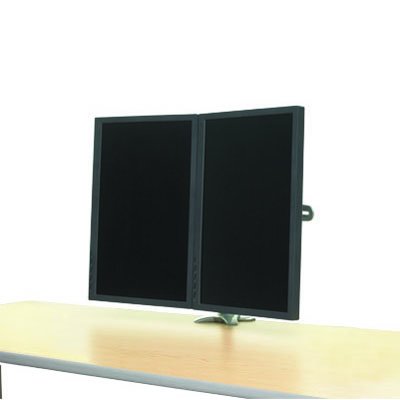

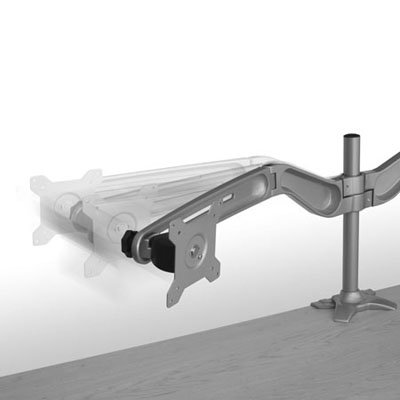

Users will enjoy the ability to arrange their displays in a parabolic arc for a comfortable viewing angle. Monitors can also be tilted for glare-free viewing angles and rotated from portrait to landscape orientation as needed.

Technical Drawing

Technical Drawing for WorkRite Sequoia (1 to 6) Monitors Stand Desk Stand

Features

  • Specify single, dual or triple mounts, mounted to short or tall pole for monitor arrays of one or two rows respectively.
  • Nine preconfigured models for most common monitor arrays of 1 to 6 monitors
  • Specify two-piece C-Clamp or Grommet Mount. Heavy duty two piece C-Clamp provided for arrays with 5 or 6 monitors
  • Dual and triple mount have independently adjustable right and left segments designed to move in tandem with each other or if needed, the angle and vertical position of the right and left segment can be independently adjusted
  • For parabolic viewing, dual mount segments pivot up to 15° and triple mount segments pivot up to 20°
  • Mounts and poles can be ordered separately for arrays with different sized monitors and for arrays with monitors mounted in both landscape and portrait orientation
  • Dual mount accommodates monitors up to 23" wide
  • Triple mount accommodates monitors up to 16" wide
  • For monitor height compatibility, see "Pole Height" chart below in Technical Drawing

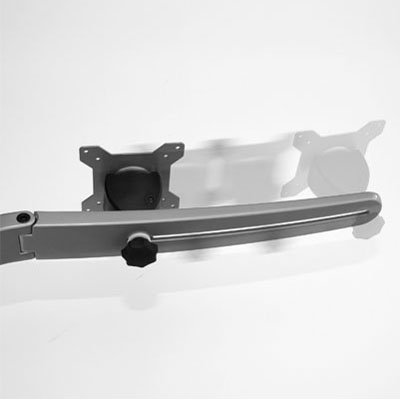

  • All mounts tilt +/- 20° and rotate 90° to change from landscape to portrait orientation
  • All mounts accommodate monitors weighing up to 16 lbs. each

Environmental Considerations

  • 92% recyclable at end of life
  • VOC free powder coat
  • LEED credit eligibility - Innovation in design, credit 1.1-1.4 (1-4 points)
  • Implementation of comprehensive ergonomic program
  • Materials & Resources, MR Credit 4.1–4.2 (1-2 points)
  • Recycled content: 20% (post-consumer + ½ pre-consumer)

Literature (Please open the following documents for more technical information)

Workrite Sequoia 1 to 6 Monitors Stand Desk Mount - Product Sheet

 - pdf



Model SQ-101-S-SC, SQ-101-S-SG, SQ-202-S-SC, SQ-202-S-SG, SQ-303-S-SC, SQ-303-S-SG, SQ-422-S-SC, SQ-422-S-SG, SQ-523-S-HC, SQ-523-S-HG, SQ-633-S-HC, SQ-633-S-HG
Manufacturer Workrite Ergonomics
Part Number SQ-101-S-SC, SQ-101-S-SG, SQ-202-S-SC, SQ-202-S-SG, SQ-303-S-SC, SQ-303-S-SG, SQ-422-S-SC, SQ-422-S-SG, SQ-523-S-HC, SQ-523-S-HG, SQ-633-S-HC, SQ-633-S-HG
Pivot Up to 15° for dual and up to 20° for triple
Monitor Size Up to 23" wide for dual and up to 16" for triple
Monitor Weight Up to 16 lbs each
Rotation 90 degree
Tilt +/- 20 degree
Mounting Options Desk
Monitor Arm Types 1 Monitor
Monitor Arm Types 2 Monitors
Monitor Arm Types 3 Monitors
Monitor Arm Types 4 Monitors
Monitor Arm Types 5 Monitors
Monitor Arm Types 6+ Monitors
Number of Monitors 6+ Monitors
Number of Monitors 5 Monitors
Number of Monitors 4 Monitors
Number of Monitors 3 Monitors
Number of Monitors 2 Monitors
Number of Monitors 1 Monitor
