We are sorry but item below has been discontinued.

Ergotron DM16-1003-1 Tablet Management Station 16

The Ergotron DM16-1003 has universal compatibility and charges and syncs up 16 Apple as well as Android devices.

Be the first to review this product
Product ID: 17772
Our Price: $587.71
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Ergotron DM16-1003-1 is an affordable, compact USB charging station for 16 tablets, featuring full syncing capability. It is easy to use right out of the box. Entire system is UL certified for safety. Universal compatibility for Apple and Android devices, such as iPad, Samsung Galaxy Tab 2, Google Nexus and Amazon Kindle.



Technical Drawing

Technical Drawing for Ergotron DM16-1003-1 Tablet Management Station 16



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 10.6"

Up to 2.4 lbs

1.1 kg

- - - - -



Product Information

Part Number

  • North America = DM16-1003-1
  • Europe = DM16-1003-2
  • United Kindom/Ireland = DM16-1003-3
  • Hong Kong/Malaysia/Singapore = DM16-1003-3
  • Australia/New Zealand = DM16-1003-4
  • China = DM16-1003-5
  • Japan = DM16-1003-6

Description

Tablet Management Station 16 (black, silver)

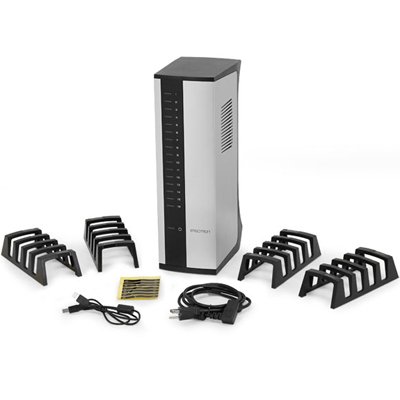

Includes

  • Tower
  • 4 4-slot storage racks
  • 6-foot (1.8m) power cord
  • 1 USB A to B sync cable

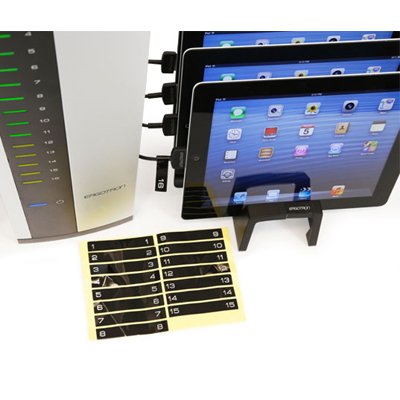

  • 16 cord identifier labels
  • 4 velcro straps for cable management

USB Cables

To connect from the station to the tablet are not included. Use the cable that comes with the tablet

Product Compatibility

iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2, iPad, iPod touch (5th generation), iPod touch (4th generation), iPod touch (3rd generation), iPhone 5, iPhone 4S, iPhone 4, Samsung Galaxy Tab 2 10.1", Amazon Kindle products, Barnes and Noble Nook products, Google Nexus 7, ViewSonic ViewPad 7, and other USB charged products that are compliant to the USB 1.2 charging standard. Also compatible with most phone models from Apple, Samsung, HTC, Nokia, Motorola, Blackberry, Sony and LG

Certification

  • UL 60950-1 Information Technology Equipment - Safety CAN/CSA C22.2 No. 60950 IEC 60950-1 worldwide safety standard
  • For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024
  • Complies with USB 2.0 standard

Tower Size

17"H x 5.5"W x 8.8"D (432 x 140 x 224 mm)

Tower Weight

11 lbs (5 kg)

Rack Size (each)

2.2"H x 3.5"W x 8.5"D (55 x 90 x 216 mm)

Rack Weight (each)

0.2 lbs (91 g)

Total Product Weight

12.2 lbs (5.5 kg)

Maximum Dimensions of Tablet (including cover)

10.2"W x 7.9"W x 0.9"D (26 x 20 x 2.3 cm)

Maximum Weight per Tablet

2.4 lbs (1.1 kg)

Power System

100-240V~, 2.0A, 50/60 Hz

Cooling/Ventilation

One 5V DC continuous operation fan

Temperature Range

Operating 0° to 30°C (32° to 86°F)

Storage -40° to 60°C (-40° to 140°F)

Relative Humidity (maximum)

  • Operating 10% to 90% (non-condensing)
  • Storage 5% - 95% (non-condensing)

Altitude (maximum)

2,000 m (6,562 ft)

Shipping Dimensions

23.5" x 13.0" x 7.8" (60 x 33 x 20 cm)

Shipping Weight

14.9 lbs (6.8 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits

  • Affordable, compact USB station provides capacity to charge and sync up to 16 tablets using wired USB connections
  • Easy-to-use right out of the box; plug in your tablets using the cables that come with your devices, set the tablets in the storage racks and you are ready to charge and sync
  • Universal compatibility with all Apple iPad, iPhone, and iPod touch models (30 pin and Lightning connector cables), Samsung Galaxy Tab 2, Amazon Kindle products, most e-readers, and other USB devices compatible with the USB 1.2 charging standard
  • Full 2.1A charging capability provided to all 16 ports simultaneously. Station automatically adjusts to provide the correct amount of power required by the tablet
  • Space saving tower style design is easy to move when needed, and easy to store out of the way when not in use
  • Individual Status Indicator (ISI) LEDs provide charging status for all tablets at one easy glance. An amber light indicates the tablet is charging while green indicates the tablet is fully charged
  • Use with Apple iTunes, Apple Configurator, or other third party mobile device management software programs to prepare and sync up to 16 products at one time. Master laptop connects to station using included USB A to B cable
  • Entire system fully certified to UL 60950-1 standard
Model DM16-1003-1
Manufacturer Ergotron
Part Number DM16-1003-1
UPC 698833039382
Color Black, silver
Weight Capacity 2.4 lbs (1.1 kg) per tablet
Tablet Size 10.2"W x 7.9"W x 0.9"D (26 x 20 x 2.3 cm) - including cover
Size Tower Size: 17"H x 5.5"W x 8.8"D (432 x 140 x 224 mm). Rack Size (each): 2.2"H x 3.5"W x 8.5"D (55 x 90 x 216 mm).
Weight Tower Weight: 11 lbs (5 kg). Rack Weight (each): 0.2 lbs (91 g). Total Product Weight: 12.2 lbs (5.5 kg)
Power 100-240V~, 2.0A, 50/60 Hz
Temperature Operating: 0° to 30°C (32° to 86°F). Storage: -40° to 60°C (-40° to 140°F)
Humidity Operating: 10% to 90% (non-condensing). Storage: 5% - 95% (non-condensing)
Altitude (maximum) 2,000 m (6,562 ft)
Shipping Dimensions 23.5" x 13.0" x 7.8" (60 x 33 x 20 cm)
Shipping Weight 14.9 lbs (6.8 kg)
Warranty Five (5) years, two (2) years for power module, one (1) year for other electrical components
