Ergotron SV41-53E0-1 StyleView Telepresence Cart, Single Monitor

Be the first to review this product
Product ID: 17792
Recommended Accessories
Our Price: $2,449.10
Shipping: $199.95 * Oversized box 136 pounds. Shipping cost subject to change based on destination
Usually ships in 2 to 3 business days
* applies to Contiguous United States





Description

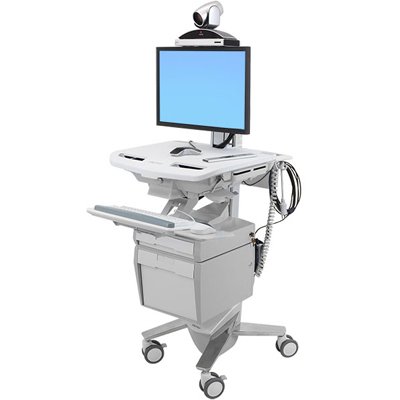

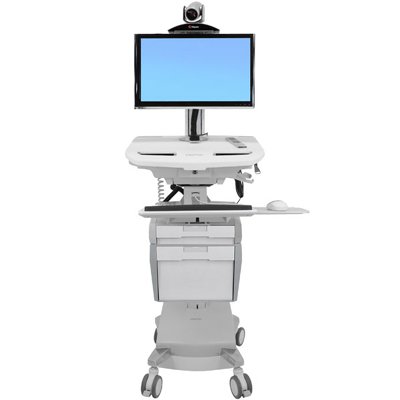

Ergotron SV41-53E0-1 expands healthcare access through telepresence with this easy and affordable mobile solution, which combines the power of videoconferencing with the benefits of a StyleView medical cart. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.



Technical Drawing

Technical Drawing for Ergotron SV41-53E0-1 StyleView Telepresence Cart, Single Monitor



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

Up to 39 lbs

17.7 kg

17"

43 cm

25° 24° 90° P/L MIS-D



Product Information

Part Number

SV41-53E0-1

Description

StyleView Telepresence Cart, Single Monitor, non-powered (white, grey and polished aluminum)

Includes

  • LCD pivot
  • Primary top drawer
  • Drawer dividers
  • Large lower drawer
  • Worksurface
  • Camera shelf

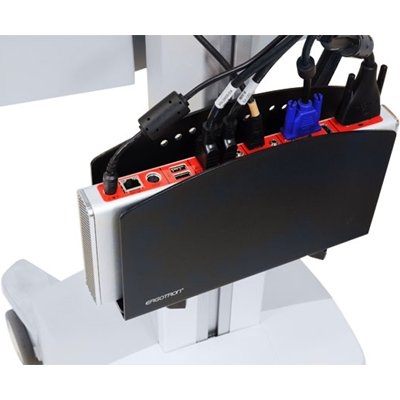

  • Codec/CPU holder

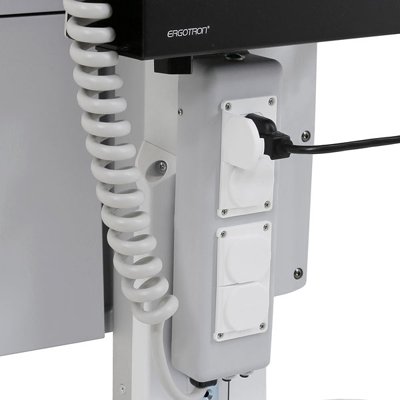

  • Medical-grade power strip
  • CPU lock
  • Secure CPU compartment
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)

Not Included

Video camera, monitors, codec, and telepresence and computing equipment

Weight Capacity

Total maximum load on height-adjustment assembly = 39 lbs (17.7 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers. When calculating load on pivot, also include weight of camera. Combined weight of LCD and camera should not exceed 20 lbs (9.1 kg). Combined weight of LCD, camera and CPU should not exceed 27 lbs (12.3 kg)

LCD and Worksurface

Adjust 12" (30 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 17" (43 cm)

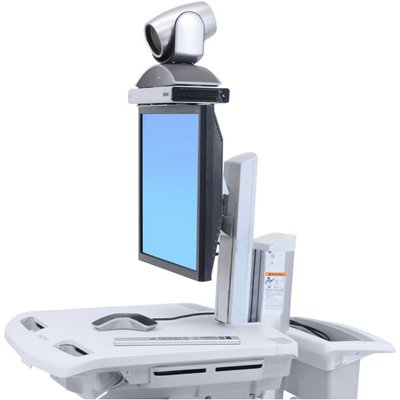

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

True Ergonomics

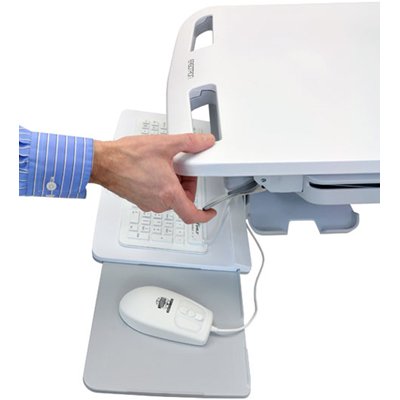

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

  • UL certification of the full cart is pending; FCC Part 15 Class A specifications for enhanced patient safety
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • Large, smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • Front-locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

Covered by Global Service Program - 24/7 coverage

All the Details Covered

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface
  • Rear basket keeps task-related items where they can be quickly accessed
  • A unique cable management system conceals and organizes cords, making cleaning easy
  • Ships fully assembled and is easily accessible from container
  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Optional security cable in compartment deters CPU theft
  • Four-port USB hub
  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions

  • Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); computers can also attach to rear of cart in the codec/CPU holder
  • Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Dimensions

24.5" x 34" x 56" (62 x 87 x 142 cm)

Shipping Weight

136 lbs (61.7 kg); actual cart weight = 101 lbs (45.8 kg)

Warranty

Five (5) years



Benefits

  • Enables remote delivery of specialized care and timely diagnostics

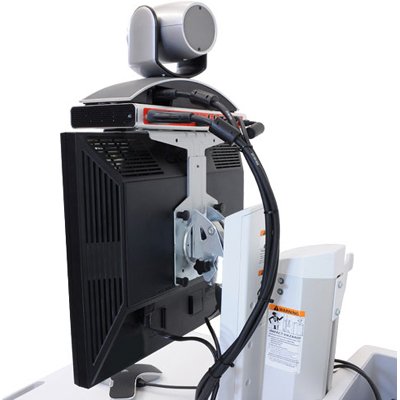

  • Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
  • Configured to accommodate all your telepresence equipment; large lower drawer is perfect for storage of critical diagnostic appliances
  • Open architecture allows for the integration of most standard computer and mobile communications equipment
  • Low configuration cost; ships fully assembled
  • Auto-locking drawers: Security system stores PINs for up to 10 users to allow electronically controlled access
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
  • Keyboard pans fully side-to-side for closer access while interacting with clients
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Model SV41-53E0-1
Manufacturer Ergotron
Part Number SV41-53E0-1
Color White, grey and polished aluminum
Monitor Size Up to 22"
Weight Capacity Up to 39 lbs (17.7 kg)
Lift (43 cm) 17 in
Tilt 25 degree
Pan 24 degree
Rotation (P/L) 90 degree
Dimensions Internal: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Dimensions 24.5" x 34" x 56" (62 x 87 x 142 cm)
Shipping Weight 136 lbs (61.7 kg); actual cart weight = 101 lbs (45.8 kg)
Warranty Five (5) years
Product Type LCD Monitor
Product Type Laptop
Product Type Tablet
