We are sorry but item below has been discontinued.

Ergotron 97-808 StyleView Hot Swap Battery Charger

Be the first to review this product
Product ID: 17803
Our Price: $999.00
Shipping: $19.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

Part of the SV Hot Swap DC Power System, for adding power to a non-powered cart. Charge two batteries at a time with the ergotron 97-808 SV Hot Swap Battery Charger, ready to swap out with batteries on the cart without interrupting workflow.

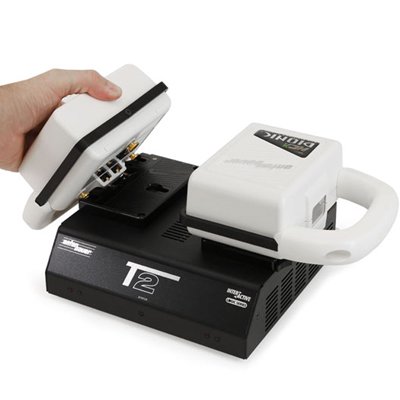

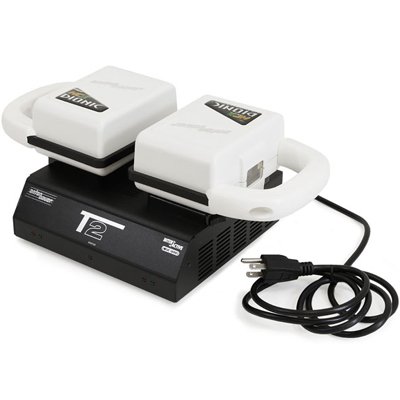

This two-position, simultaneous charger has a small footprint, making it easy to place inconspicuously on a desk or counter. For a complete power system, also order the SV Hot Swap Docking Station and SV Hot Swap 120Wh Li-Ion Batteries.



Product Information

Part Number

97-808

Description

SV Hot Swap Battery Charger (black)

Includes

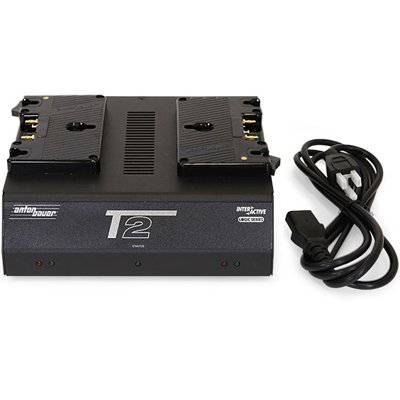

  • charger and power cord

Complete SV Hot Swap DC Power System

For complete SV Hot Swap DC Power System, order the following components: 97-806 SV Hot Swap Docking Station (1 per cart); 97-807 SV Hot Swap 120Wh Li-Ion Battery (4 per cart); 97-808 SV Hot Swap Battery Charger (1 per cart)

System Compatibility

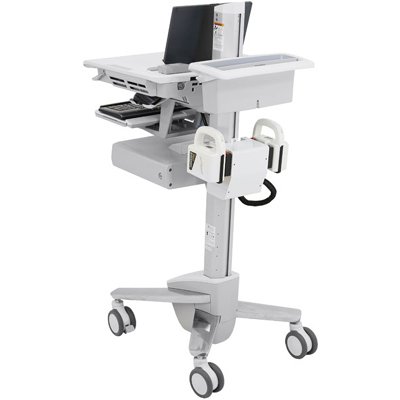

  • Optimized for attachment to SV41-series StyleView non-powered carts
  • Neo-Flex WideView Carts (24-189-055 & 24-194-055) and WorkFit-C Carts (24-198-055) with dual t-slot channels are supported. The system will be mounted off-center when attached using provided mounting hardware. If system is to be center mounted, also purchase two 60-587 brackets with the system
  • Neo-Flex Carts (24-205-214 & 24-206-214) that do not include a t-slot channel are supported by purchasing a 97-818-214 bracket (contact Ergotron for details)

Estimated runtimes based on power consumption

  • 15w load = 12.8 hours runtime
  • 20w load = 9.6 hours runtime
  • 30w load = 6.4 hours runtime
  • 40w load = 4.8 hours runtime
  • 50w load = 3.8 hours runtime
  • 60w load = 3.2 hours runtime
  • Not recommended for average loads of more than 60 watts as charge time will exceed runtime

Charger Size

7.75" x 3.2" x 8.5" (19.7 x 8.1 x 21.6 cm)

AC Input

100-240 VAC, 50/60 Hz. Wide Range Input

Cord

Length = 6 feet (1.8 m); North American NEMA 5-15 grounded plug

Charge Time

3 hours to 85%, 3.5 hours to 100%

Battery

Has sleep feature/motion detection for extended storage

DC Adapters

DC power output only: System may require DC adapters to support computer equipment’s current and voltage levels. DC adapters purchased separately - not provided with system.

AC Power Conversion

For your equipment requires an inverter. Inverters purchased separately - not provided with system

Docking Station, Batteries and Charger

Can all be cleaned following Ergotron’s recommended cleaning steps for carts

SV Hot Swap DC Power System

Can be integrated on your cart along with your computer equipment by ordering service SKU SRVC-PI-02 (10 cart minimum)

REACH compliant

Not fully RoHS, WEEE, or REACH compliant

Shipping Dimensions

14.5" x 11.5" x 3.5" (36.8 x 29.2 x 8.9 cm)

Shipping Weight

4 lbs (1.8 kg)

Warranty

Three (3) years



Benefits

  • Provides dependable DC power to support your DC-powered computer hardware

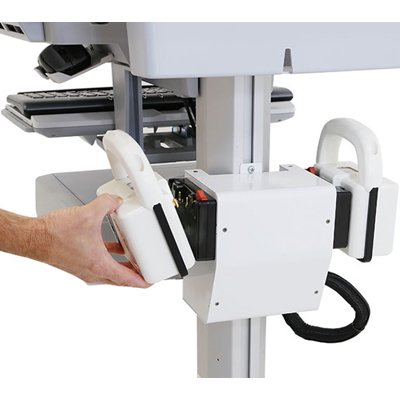

  • Accommodates uninterrupted workflow, allowing battery changes without powering down
  • Long runtime potential - “Hot Swap” the fully charged batteries at the beginning of a shift and forget about it
  • Gold Mount design locks batteries securely into place. Features gold-plated, self-cleaning, solid mechanical connections
  • Batteries are easily switched and weigh only 2.4 lbs (1.1 kg) each
Model 97-808
Manufacturer Ergotron
Part Number 97-808
Color Black
Charger Size 7.75" x 3.2" x 8.5" (19.7 x 8.1 x 21.6 cm)
AC Input 100-240 VAC, 50/60 Hz
Power Cord 6 feet (1.8 m), North American NEMA 5-15 grounded plug
Charge Time 3 hours to 85%, 3.5 hours to 100%
Shipping Dimensions 14.5" x 11.5" x 3.5" (36.8 x 29.2 x 8.9 cm)
Shipping Weight 4 lbs (1.8 kg)
Warranty Three (3) years
