$526.00

Innovative 7000-Switch Dual Monitor Arm with Switch Bracket

Monitors up to 24" widescreen

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 17832
Innovative 7000-Switch Dual Monitor Arm with Switch Bracket
White Finish 7000-SWITCH-1000-248
Black Finish 7000-SWITCH-1000-104
Monitors pivot independently for landscape or portrait viewing
Innovative FLEXmount
Cable management routes cables underneath the dual monitor arm
Horizontal/vertical positioning
Innovative 7000-Switch Dual Monitor Arm with Switch Bracket
Innovative 7000-Switch Dual Monitor Arm with Switch Bracket
White Finish 7000-SWITCH-1000-248
Black Finish 7000-SWITCH-1000-104
Monitors pivot independently for landscape or portrait viewing
Innovative FLEXmount
Cable management routes cables underneath the dual monitor arm
Horizontal/vertical positioning
Innovative 7000-Switch Dual Monitor Arm with Switch Bracket

Description

Save valuable desk space by mounting two monitors to a single mount. With Innovative 7000-Switch, both monitors will float above your desktop, allowing you to quickly and easily adjust monitor height and position. Monitors can be positioned either side-by-side or one above the other.

Our adjustable wing bracket allows you to adjust monitors, and also allows rotation. The 7000-Switch incorporates cable management, keeping your work space clean and organized.

A member of the best-selling 7000 monitor arm family, this dual monitor arm suspends two monitors above desk. Easily adjust both monitors with one hand for ergonomic comfort.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter

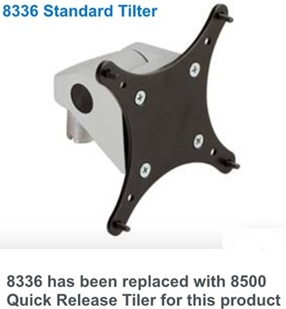

Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount

Innovative 8524 Top Down Mount



Innovative FLEXmount

Technical Drawing

Technical Drawing for Innovative 7000-Switch Dual Monitor Arm with Switch Bracket

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Screen Size Up to 24"
Height Adjustment 16"
Extension Range 22"
Monitor Pivot Landscape / Portrait
Monitor Rotation 360 degrees at three joints
Monitor Tilt 200 degrees
VESA Compatibility100mm quick-release adapter included
Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Cable Management Cables are concealed in arm
Weight Capacity 3.5 - 13 lbs (1.6 - 5.9 kg) per monitor
Warranty 10 years

Features

  • Gas arm "floats" dual flat panel monitors above the desktop for instant height adjustment

  • Monitors can be positioned horizontally (side-by-side) or vertically (stacked one over another)

  • FLEXmount, featuring six mounting options is available

  • Quick-install/quick-release mechanism instantly and securely snaps monitors into position

  • VESA-monitor compatible - 100mm VESA adapter included please call for non-VESA options

  • Cable management routes cables underneath the dual monitor arm

  • Accommodates flat panel monitors up to 24" widescreen (monitor widths may vary)

Model 7000-Switch-1000
Manufacturer Innovative LCD Arms
Part Number 7000-Switch-1000
Monitor Size Up to 24
Color 104 - Vista Black, 124 - Silver
Vertical Range +/- 8
Horizontal Range 24
Rotation At three joints 360 degree
Tilt 200 degree
Pivot Landscape/Portrait
Mounting Pattern VESA 75mm, 100mm
Monitor Weight 3.5 -13 lbs (1.6 - 5.9 kg) per monitor
Mounting Options Desk
Mounting Options Wall
Mounting Options Slatwall
Mounting Options Pole
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Warranty 10 Years
Maximum Monitor Size 24
Monitor Placement Side-by-Side
