We are sorry but item below has been discontinued.

Ergotron DM10-1006-1 Tablet Management Wall Mount, 10 Devices

10 device capacity, pre-installed 30-pin cables
Be the first to review this product
Product ID: 17889
Recommended Accessories
List Price: $1,335.00
Our Price: $905.25
You Save: $429.75
Shipping: $69.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Description

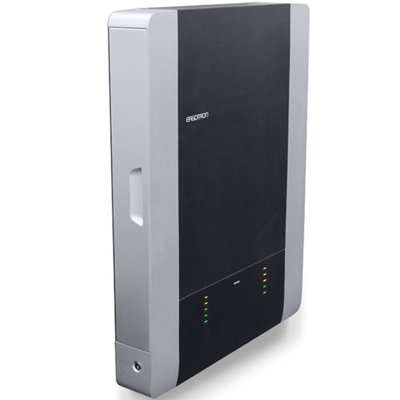

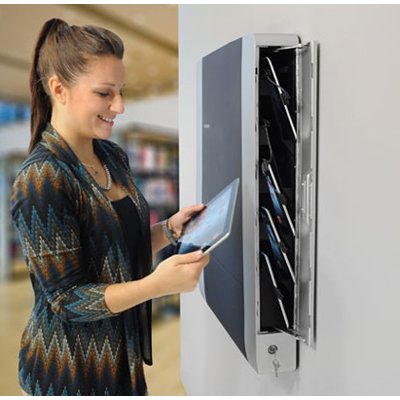

Ergotron DM10-1006-1 has sleek, low-profile cabinet design that accommodates 30-pin-cable versions of the Apple iPad. Durable steel doors with robust six-point lock and key assembly secures tablets and provide strong theft deterrence. Charges at up to a full 2.4A per device. Tested and certified to UL 60950-1 standard.



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 10.1"

Up to 2.4 lbs

1.1 kg

- - - - -



Product Information

Part Number

  • North America = DM10-1006-1
  • Europe = DM10-1006-2
  • United Kindom/Ireland = DM10-1006-3
  • Hong Kong/Malaysia/Singapore = DM10-1006-3
  • Australia/New Zealand = DM10-1006-4
  • China = DM10-1006-5
  • Japan = DM10-1006-6

Description

Tablet Management Wall Mount, 10 device capacity, pre-installed 30-pin cables (black)

Includes
  • Wall-mount cabinet
  • 6-foot (1.5 m) power cord
  • 10 charging cables (30-pin)
  • External USB 2.0B port (for connecting laptop)
  • Power cord cover
  • 2 wall-mount brackets
  • Mounting hardware
  • Installation template
  • Security-screw driver
  • 90-degree Phillips driver

Maximum Dimensions of Tablet (including cover)

10.2" x 7.9" x 0.9" (25.9 x 20.1 x 2.3 cm)

Weight Capacity

Individual tablets up to 2.4 lbs (1.1 kg)

Easy Installation

1. Mount two brackets on the wall using installation template;

2. Hang wall mount unit;

3. Secure to wall with security screws;

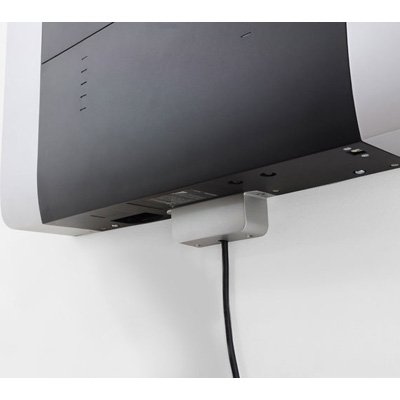

4. Install power cord cover;

5. Plug iPad devices into unit;

6. Plug Tablet Management Wall Mount into the wall outlet

Certification

  • Entire system certified to UL 60950-1. Complies with FCC Part 15 Class A requirements
  • Complies with USB 2.0 standard
  • Certified “Made for iPad”

Compatible Devices

  • iPad (3rd generation)
  • iPad 2
  • iPad

Tablet Case Compatibility

The following cases have been tested and confirmed to work with the Tablet Management Wall Mount 10 product. This is not a comprehensive list. If your cover fits within the maximum dimensions of 10.2"H x 7.9"W x 0.9"D (25.9 x 20.1 x 2.3 cm) with the cable plugged in, it should also fit ...
  • iPad/iPad 2/iPad (3rd generation) cases: Apple iPad Smart Case, Belkin Protective Case with Stand, Belkin Tri-Fold Folio, Belkin Snap Shield, Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Survivor, Griffin Intellicase, Gumdrop Drop Tech, Hard Candy Street Skin, Logiix Roadster II, Otterbox Defender Series (without separate top cover), Otterbox Reflex Series, Speck FitFolio, STM Skinny 3, STM Grip, Targus SafePort Rugged and Rugged Max Pro, Targus Slim Case, Targus Versavu, Trident Aegis, Trident Kraken AMS

Cooling/Ventilation

One 12V DC continuous operation fan

Power System

Input: 100-240V~, 2.0A, 50/60 Hz

Temperature Range

Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F)

Relative Humidity (maximum)

Operating 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)

Altitude (maximum)

2000 m (6,562 ft)

Environmentally Clean

RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

Product Cord

6' (1.8 m) long

Product Dimensions

23.2"W x 31.8"H x 4.0"D (59 x 80.9 x 10.2 cm)

Product Weight

34.5 lbs (15.7 kg)

Shipping Dimensions

36.5" x 26.4" x 7.0" (92.6 x 67 x 17.7 cm)

Shipping Weight

39.5 lbs (17.9 kg)

Warranty

Five (5) years; two (2) years for power module; one (1) year for other electrical components



Benefits

Safe and Secure
  • Tested and certified to UL 60950-1 standard, FCC requirements and all applicable country-specific regulation

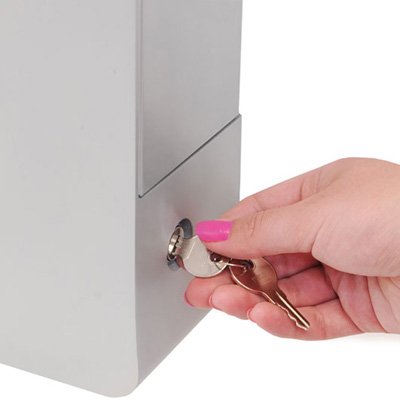

  • Six-point lock assembly provides strong theft deterrence; includes security screws to attach product to the wall

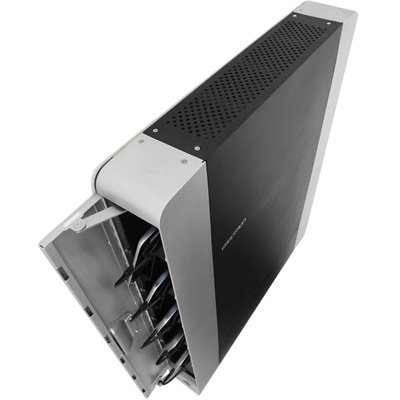

  • Fan and ventilation system maintains safe operating temperatures
  • Ergotron not only uses UL-certified components, but goes a step further to have UL certify the entire system to guarantee safe use within the classroom, healthcare or enterprise setting

Top-Rated Sync & Charge

  • Improved charging system provides a full 2.4A charging current per device - charging an iPad Air up to 30% faster than 2.1A systems

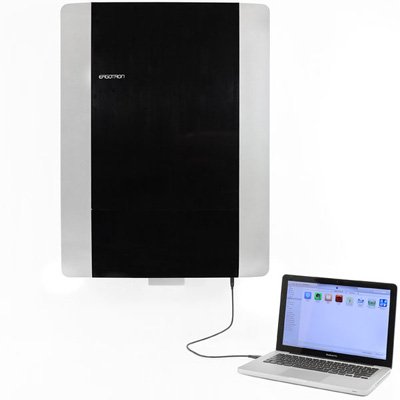

  • Built-in syncing capability; simultaneously sync up to 10 devices by connecting your laptop via the cabinet’s USB port
  • Certified "Made for iPad"

Slim and Open Design

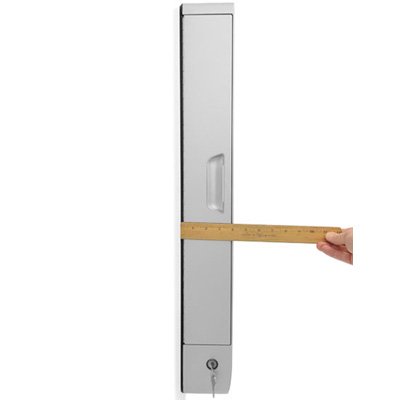

  • Fits most anywhere: very low profile - only 4 inches (10 cm) deep, even with access doors open
  • Accommodates most iPad cases, including the popular Otterbox Defender and Griffin Survivor

Easy Set-Up and Operation

  • Pre-installed 30-pin cables
  • Quick, simple installation includes mounting template

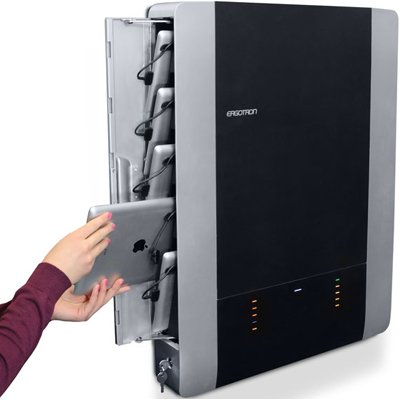

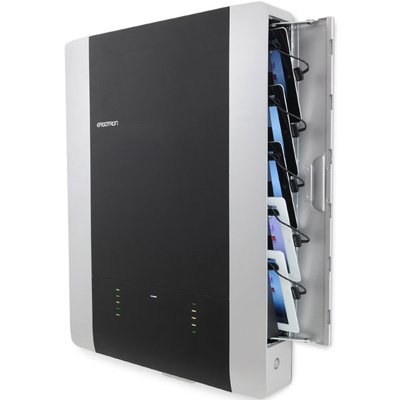

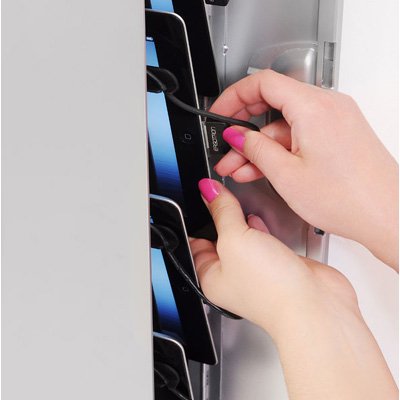

  • Patent-pending Show & Stow technology: extends iPad devices to the user when the door is opened for easy storage and removal
  • Easy to clean; sleek and smart design hides device and cord clutter

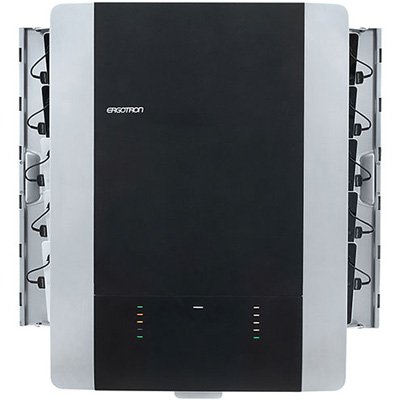

  • ISI (Individual Status Indicator) LEDs provide power and charging status of each individual device at a glance
Model DM10-1006-1
Manufacturer Ergotron
Part Number DM10-1006-1
UPC 698833041828
Color Black
Screen Size Up to 10.1 in
Weight Capacity Individual tablets up to 2.4 lbs (1.1 kg)
Dimensions Maximum dimensions of tablet (including cover) = 10.2" x 7.9" x 0.9" (25.9 x 20.1 x 2.3 cm)
Power Input: 100-240V~, 2.0A, 50/60 Hz
Temperature Operating 0° to 30°C (32° to 86°F); Storage -40°C to 60°C (-40° to 140°F)
Humidity (Maximum): Operating 10%-90% (non-condensing); Storage 5%-95% (non-condensing)
Altitude (Maximum): 2000 m (6,562 ft)
Power Cord 6' (1.8 m) long
Dimensions 23.2"W x 31.8"H x 4.0"D (59 x 80.9 x 10.2 cm)
Shipping Dimensions 36.5" x 26.4" x 7.0" (92.6 x 67 x 17.7 cm)
Shipping Weight 39.5 lbs (17.9 kg)
Warranty Five (5) years; two (2) years for power module; one (1) year for other electrical components
Compatible iPad (3rd generation), iPad 2 and iPad
