Ergotron 97-905 WorkFit Single LD Monitor Kit

Be the first to review this product
Product ID: 18125
Highlights
  • Designed for use with WorkFit-T and WorkFit-PD
  • Add this monitor kit to hold a monitor up to 24" in size
  • Weight capacity: 6 - 16 lbs
  • Vertical adjustment: 5"
  • Tilt: 30 degree
  • For a heavier monitor kit, please see  97-906
  • For a dual monitor version of this monitor kit, click here
List Price: $170.00
Our Price: $99.00
You Save: $71.00
Shipping: $9.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Upgrade your WorkFit to hold an LCD above the desktop. Ergotron 97-905 offers 5" (13 cm) of height adjustment and tilt. Easily lift and tilt the screen to proper height for unsurpassed ergonomic comfort. For use with WorkFit-T and WorkFit-PD products.

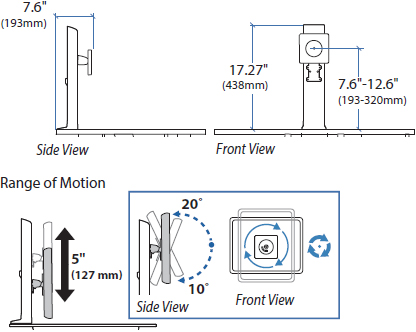

Technical Drawing

Technical drawing for Ergotron 97-905 WorkFit Single LD Monitor Kit



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

6 - 16 lbs

2.7 - 7.3 kg

5"

13 cm

30° - 360° MIS-D



Product Information

Part Number

97-905 (replaces 97-664)

Description

WorkFit Single LD Monitor Kit (black)

Includes

  • 5" lift engine
  • One (1) LD monitor pivot
  • Cable management tube and ties
  • Attachment hardware

Compatible

With WorkFit-T and WorkFit-PD products

Weight Capacity

6 - 16 lbs (2.7 - 7.3 kg). When added to WorkFit-T, overall capacity of the WorkFit-T decreases from 35 lbs (15.9 kg) to 28.4 lbs (12.9 kg)

Mounting Patterns

VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)

Product Weight

6.6 lbs (3.6 kg)

Shipping Dimensions

25.2" x 5" x 6.9" (64 x 13 x 17 cm)

Shipping Weight

7.9 lbs (3.6 kg)

Warranty

Five (5) years



Benefits

  • Holds display above worksurface, freeing up space
  • Cost-effective height-adjustable mounting solution
  • Simple installation and effortless operation
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Increase viewing comfort by reducing eye, back and neck strain
  • Add an accessory Notebook Tray to use with a laptop computer and external keyboard

Frequently Asked Questions

Question: What is the difference between the 97-905 and 97-906 Workfit single LD Monitor Kit? Answer: The 97-905 WorkFit LD Single Monitor kit is designed for lighter monitors with 6-16 lbs of weight capacity and monitors with 24" in size. It provides 5" height adjustment with 30 degree of tilt to the monitors. The 97-906 WorkFit HD Single Monitor kit is designed for heavier monitors 16-28 lbs of weight capacity and monitors up to 30" in size. It provides 5" of height adjustment and 30 degrees of tilt to the monitors too. In terms of functionality they both work the same way.
Model 97-905
Manufacturer Ergotron
Part Number 97-905
UPC 698833048971
Color Black
Monitor Size Up to 30"
Weight Capacity 16–28 lbs (7.3–12.7 kg)
Lift (13 cm) 5 in
Tilt 30 degree
Rotation 90 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm)
Weight 6.6 lbs (3 kg)
Shipping Dimensions 25.2" X 5.0" x 6.9" (64 x 13 x 17 cm)
Shipping Weight 9 lbs (4.1 kg)
Warranty Five (5) years
