Ergotron 97-904 WorkFit Dual Monitor Kit

Be the first to review this product
Product ID: 18127
Highlights
  • Designed for use with Workfit-T and WorkFit-PD Sit-Stand Models
  • Add this dual monitor kit to hold monitors up to 24" in size
  • Maximum outside width of monitors to be installed on this kit:  24.5" with 2" thick monitors
  • Weight capacity:  6 -14 lbs per monitor
  • Vertical adjustment:  5"
  • For dual monitor kit in color white, please see 97-934-062
List Price: $255.00
Our Price: $149.00
You Save: $106.00
Shipping: $14.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States
Add to Cart

Description

Upgrade your WorkFit to hold two LCDs above the desktop. Ergotron 97-904 offers 5" (13 cm) of height adjustment. Easily lift LCD screens to proper height for ergonomic comfort. For use with WorkFit-T and WorkFit-PD products.

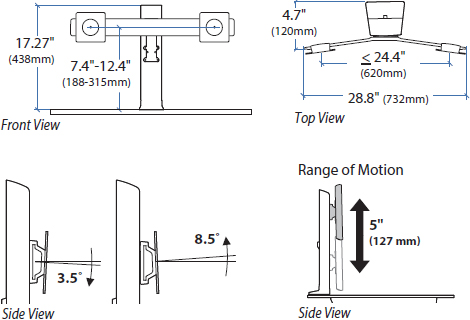

Technical Drawing

Technical drawing for Ergotron 97-904 WorkFit Dual Monitor Kit



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

12 - 28 lbs

5.4 - 12.7 kg

5"

13 cm

- - 360° MIS-D



Product Information

Part Number

97-904 (replaces 97-663)

Description

WorkFit Dual Monitor Kit (black)

Includes

  • 5" lift engine
  • Two (2) monitor pivots
  • Dual bow
  • Cable management tube and ties
  • Attachment hardware

Compatible

With WorkFit-T and WorkFit-PD products

Display Size

Maximum outside width of display is 24.5" (62 cm) when displays are 2" (5 cm) thick. Accommodates most displays with screen-size up to 24" as well as some displays with screens as large as 26". Actual allowable width of displays will vary slightly depending on display thickness

Weight Capacity

LCD mount capacity = 6 - 14 lbs (2.7 - 6.3 kg) each, 12 - 28 lbs (5.5 - 12.7 kg) total. When added to WorkFit-T, overall capacity of the WorkFit-T decreases from 35 lbs (15.9 kg) to 25.3 lbs (11.5 kg)

Note

33% fewer errors reported when using multi-screen configurations; 24% of workers feel more comfortable when using multiple monitors. Source: NEC Display Solutions, University of Utah, ATI Technologies 2003 study, “Productivity and Multi-Screen Displays”

Product Weight

9.7 lbs (4.4 kg)

Shipping Dimensions

30.5" x 9.6" x 5.2" (77.5 x 24 x 13 cm)

Shipping Weight

11.4 lbs (5.2 kg)

Warranty

Five (5) years



Benefits

  • Holds displays above worksurface, freeing up space
  • Cost-effective height-adjustable mounting solution
  • Simple installation and effortless operation
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Increase viewing comfort by reducing eye, back and neck strain
  • Increase productivity and reduce errors - conclusion of scientific study of multi-monitor workstations
Model 97-904
Manufacturer Ergotron
Part Number 97-904
UPC 698833048964
Color Black
Monitor Size Up to 24"
Weight Capacity 12–28 lbs (5.4–12.7 kg)
Lift (13 cm) 5 in
Rotation 360 degree
Compatible With WorkFit-T and WorkFit-PD products
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
Weight 9.7 lbs (4.4 kg)
Shipping Dimensions 30.5" x 9.6" x 5.2" (77.5 x 24 x 13 cm)
Shipping Weight 11.4 lbs (5.2 kg)
Warranty Five (5) years
