We are sorry but item below has been discontinued.

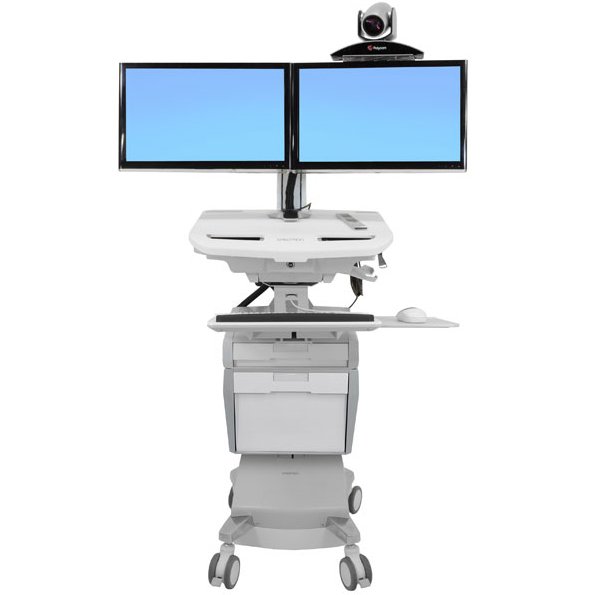

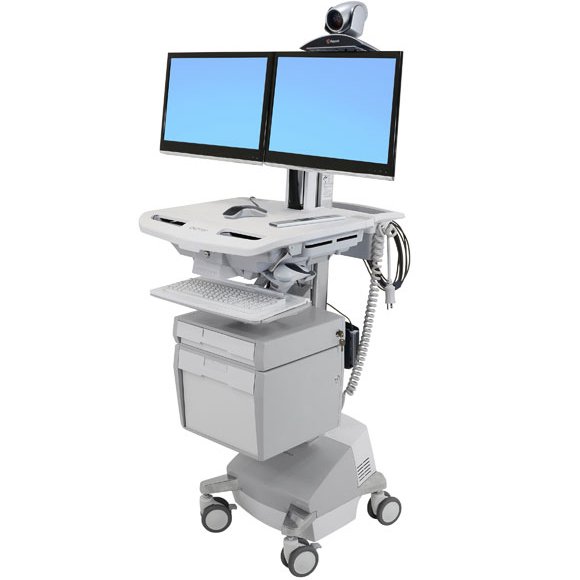

Ergotron SV44-56E1-1 SV Telepresence Cart, Dual Monitor, Powered

Be the first to review this product
Product ID: 18203
Recommended Accessories
List Price: $7,310.00
Our Price: $4,699.00
You Save: $2611.00
Shipping: $379.95 * Oversized box 217 pounds. Shipping cost subject to change based on destination
Usually ships in 15 to 20 business days
* applies to Contiguous United States

Description

Expand healthcare access through telepresence with this easy and affordable mobile solution, which combines the power of videoconferencing with the benefits of a StyleView medical cart. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.
Made in the USA by Ergotron.



Technical Drawing

Technical Drawing for Ergotron SV44-56E1-1 SV Telepresence Cart, Dual Monitor, Powered



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

Up to 45 lbs

20.4 kg

12"

30 cm

- 180° 360° MIS-D



Product Information

Part Numbers

SV44-56E1-1

Description

StyleView Telepresence Cart, Dual Monitor, SLA Powered (white, grey and polished aluminum)

Includes

  • Dual display bow
  • Auto-locking drawer system (ADS)
  • Primary top drawer
  • Drawer dividers
  • Large lower drawer
  • Worksurface
  • Camera shelf

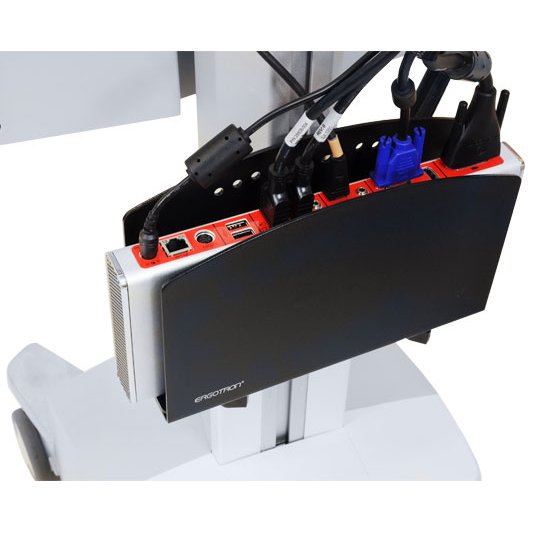

  • Codec/CPU holder
  • Medical-grade power strip
  • CPU lock
  • Secure CPU compartment
  • Four-port USB hub
  • Scanner holder bracket
  • Mouse holder
  • Wrist rest

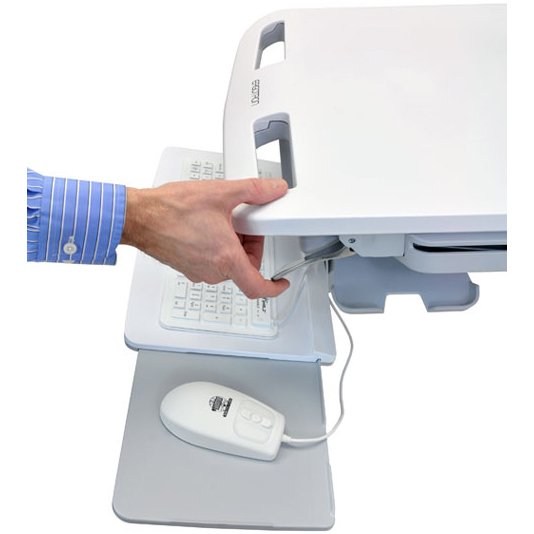

  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage
  • Four casters (two locking)
  • Two-battery 66 Ah power system
  • 10-foot (3 m) coiled cord
  • Three AC outlets
  • Power system user interface
  • StyleLink software

Not Included

Video camera, monitors, codec, and telepresence and computing equipment not included

Total Maximum Load on Height-Adjustment Assembly

45 lbs (20.4 kg). This is the sum of the following components: dual LCD bow ≤ 18 lbs (8.2 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

When calculating load on dual LCD bow, also include weight of camera. Combined weight of LCDs and camera should not exceed 18 lbs (8.2 kg). Combined weight of LCDs, camera and CPU should not exceed 27 lbs (12.3 kg)

Pan

180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

PINs

PINs managed by StyleLink software are limited to 5-digit length and 100 per cart

True Ergonomics

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe

  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL and CAN/CSA-C22.2 No. 60601-1:08. Complies with EMI limits of FCC Part 15 Class A
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
  • Large, smooth worksurface; easy-to-clean design promotes infection control
  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
  • Locking casters
  • CPU lock provided inside the storage compartment for additional security
  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service

  • Includes FREE StyleLink with enterprise capabilities: Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN
  • Covered by Global Service Program - 24/7 coverage

All the Details Covered

  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
  • Button for LED lights is located conveniently on worksurface

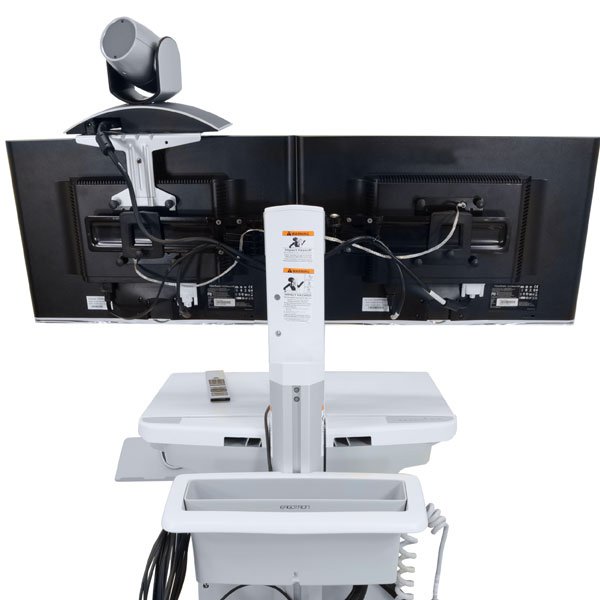

  • Rear basket keeps task-related items where they can be quickly accessed
  • Ships fully assembled
  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
  • Four-port USB hub
  • TAA (Trade Agreements Act) compliant
  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
  • Pre-routed cables provide quicker integration with equipment
  • Three-outlet power strip located in the CPU storage compartment

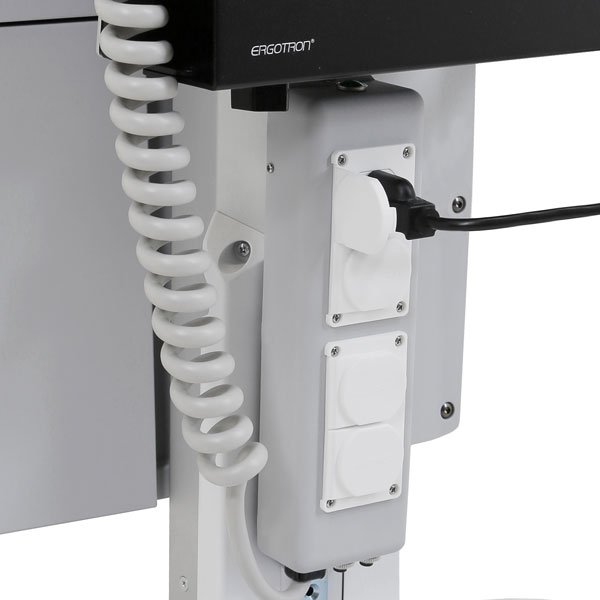

  • External four-outlet power strip located on back of cart
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions

  • Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • VAC: 120V/60Hz
  • Grounded Plug: NEMA 5-15P Hospital Grade
  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics
  • It is recommended that a discharge test be conducted when cart is first purchased to determine runtime with computer equipment configured on the cart. Change batteries when instructed by StyleLink battery management software. If StyleLink is not used, it is strongly recommended a monthly discharge test be conducted to determine runtime loss. If runtime is less than 50% of original, batteries must be changed

Shipping Dimensions

24.5"W x 34"D x 56"H (62 x 87 x 142 cm)

Shipping Weight

217 lbs (98.4 kg); actual cart weight = 182 lbs (82.6 kg)

Warranty

Five (5) years for cart’s mechanical components, two (2) years on power module. See complete warranty for details



Benefits

  • Open architecture allows for the integration of most standard computer and mobile communications equipment
  • Enables remote delivery of specialized care and timely diagnostics

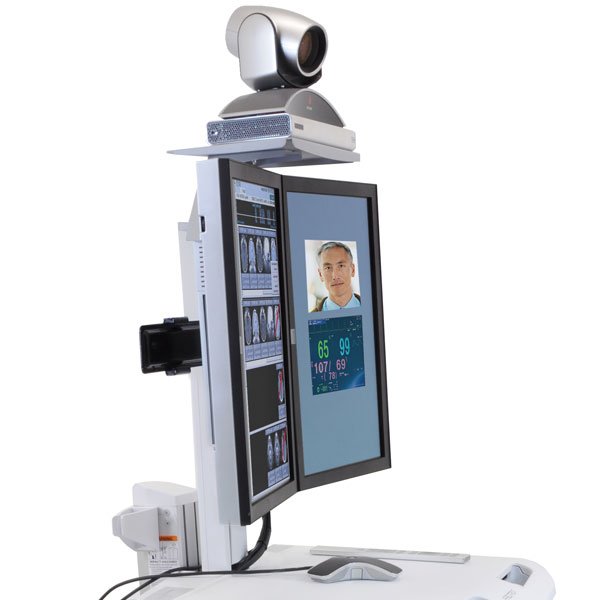

  • Dual monitor configuration provides convenient side-to-side pivoting of one display for shared viewing of screen; expanded screen area of two displays increases productivity

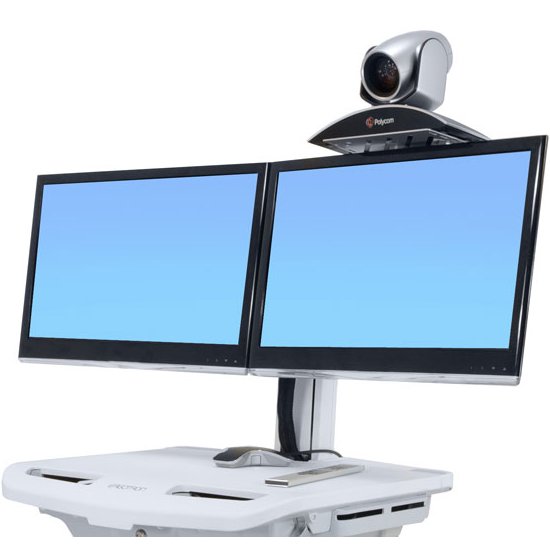

  • Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
  • Configured to accommodate all your telepresence equipment; large lower drawer is perfect for storage of critical diagnostic appliances
  • Low configuration cost; ships fully assembled
  • Auto-locking drawers: Cart stores variable-length PINs for up to 1,000 users to allow electronically controlled access
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
  • Keyboard pans fully side-to-side for closer access while interacting with clients
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the entire power system and the FULL cart are certified to UL 60601-1
  • Low operating cost - autonomous rechargeable AC electrical source delivers safe, inexpensive and dependable power
Model SV44-56E1-1
Manufacturer Ergotron
Part Number SV44-56E1-1
UPC 698833046106
Color White, grey and polished aluminum
Monitor Size Up to 24"
Weight Capacity Up to 45 lbs (20.4 kg)
Lift (30 cm) 12 in
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 217 lbs (98.4 kg)
Cart Weight 182 lbs (82.6 kg)
Warranty Five (5) years
