We are sorry but item below has been discontinued.

Ergotron 97-871 Telepresence Kit, Dual Monitor, for SV43/44 Cart

Recommended for use with SV43-1310-0, SV44-1311-1 or SV44-1312-1

Be the first to review this product
Product ID: 18207
List Price: $1,190.00
Our Price: $657.06
You Save: $532.94
Shipping: $49.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

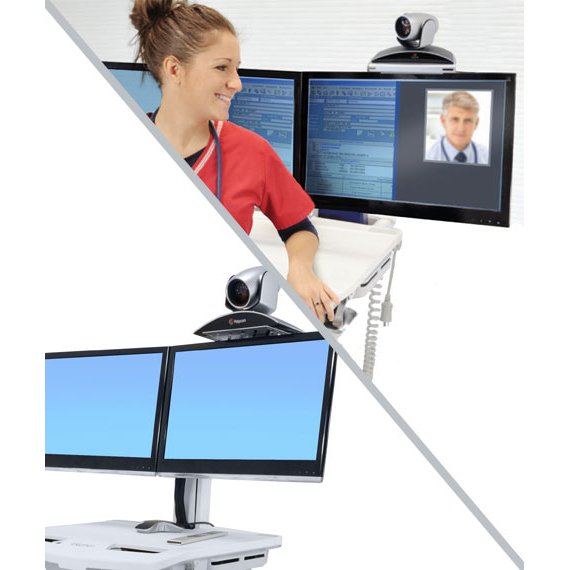

Ergotron 97-871 kit converts a cart for use in telepresence applications, combining the power of videoconferencing with the benefits of StyleView. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Screen

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 24"

Up to 44 lbs

20 kg

12"

20 cm

- 180° 360° MIS-D



Product Information

Part Number

97-871

Description

SV Telepresence Kit, Dual Monitor, for SV43/44 cart

Includes

  • Dual display bow
  • Large lower drawer
  • Camera shelf
  • Codec/CPU holder
  • Travel stop
  • Mounting hardware

Not Included

Video camera, monitors, codec, and telepresence and computing equipment not included

Total Maximum Load on Height-Adjustment Assembly

44 lbs (20 kg). This is the sum of the following components: dual LCD bow ≤ 18 lbs (8.2 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)

Note

When calculating load on dual LCD bow, also include weight of camera. Combined weight of LCDs and camera should not exceed 18 lbs (8.2 kg). Combined weight of LCDs, camera and CPU should not exceed 27 lbs (12.3 kg)

Pan

180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)

Tip Hazard

To avoid tip hazard, cart should not be relocated when monitor is panned. Always keep monitors aligned side by side when moving the cart

Portrait Screen Orientation

May be incompatible with widescreen displays > 19"

Internal Dimensions

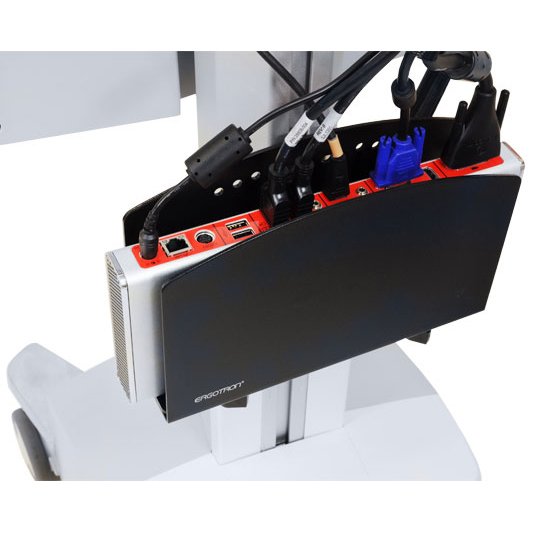

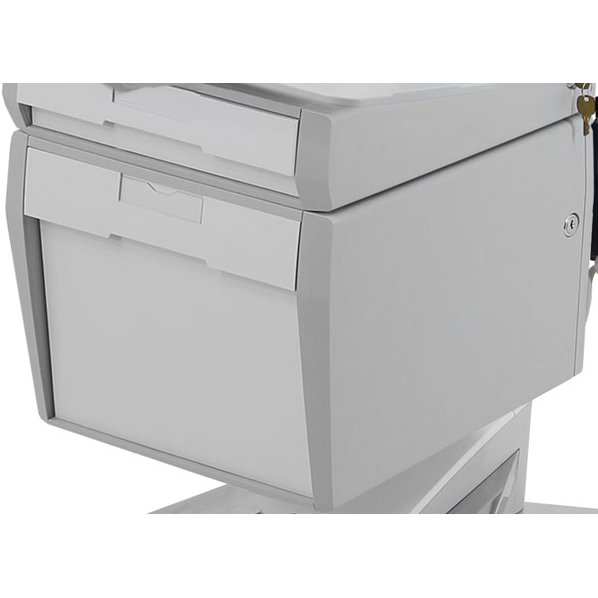

Large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Shipping Weight

29 lbs (13.2 kg)

Warranty

Five (5) years



Benefits

  • Enables remote delivery of specialized care and timely diagnostics
  • Includes components that, when added to a StyleView cart, allow accommodation of all your telepresence equipment

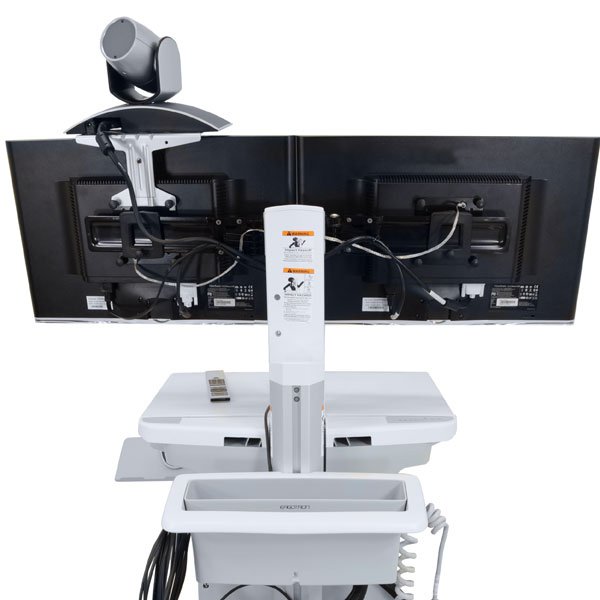

  • Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion
  • Low configuration costs
  • Works with cart’s auto-locking drawers for electronically controlled access to your equipment
  • Open architecture allows for the integration of most standard computer and mobile communications equipment

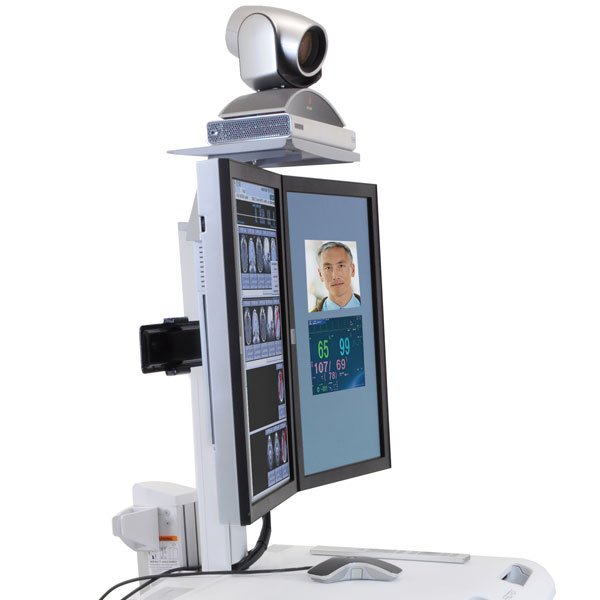

  • Dual monitor configuration provides convenient side-to-side pivoting of one display for shared viewing of screen; expanded screen area of two displays increases productivity
Model 97-871
Manufacturer Ergotron
Part Number 97-871
UPC 698833047240
Monitor Size Up to 24"
Weight Capacity Up to 44 lbs (20 kg)
Lift (20 cm) 12 in
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Dimensions Internal: large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec/CPU holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
Shipping Weight 29 lbs (13.2 kg)
Warranty Five (5) years
