The below item has been discontinued.

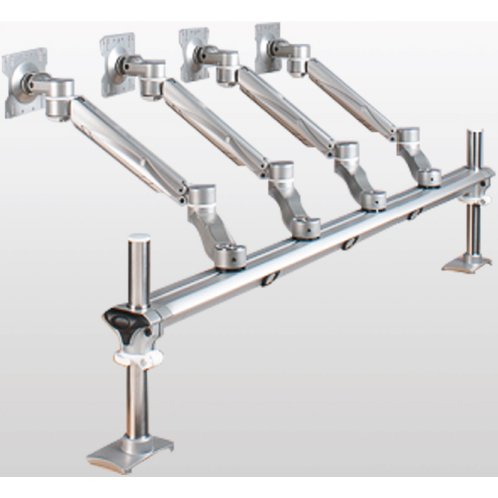

ISE MA4000 Height Adjustable Quad Monitor Arm - Beam Mount
Description
Monitor arms are an essential part of the ergonomic office. Dynamic arms allow the user to adjust the height position of the monitor easily throughout the day. As height adjustable tables become the office standard, a monitor arm is essential to adjust monitor position when sitting or standing.
Many end users working in financial, technical or engineering firms require multiple monitors. The MA 4000 Multiple Monitor Arm mounts up to 4 monitors on a beam. Each monitor height can be independently adjusted through the dynamic counterbalance arms, while the entire beam height can also be adjusted on the pole.
The MA4000 series offers the exceptional versatility of dual height adjustments that provides for dynamic height adjustment of the monitor and static height adjustment of the arm on the pole.
Specifications
Color |
Black or Silver |
Beam Length |
52" long extruded aluminum beam (other lengths available) |
Arm Reach |
24" |
Pole Height |
16.5" high stainless steel poles (other heights available) |
Dynamic Height Adjustment |
13" front arm segment dynamic height adjustment |
Weight Limit |
20 lbs per arm |
Mounting Options |
Clamp (2-5/8") or grommet (3-1/2") mount |
Warranty |
Limited lifetime |
Features
- Pole mounted
- Beam mounted monitor arm for quad monitors
- Fits up to four 27" monitors
- Counterbalance spring mechanism allows users to independently adjust each monitor height without tools throughout the day
- Beam height position is adjustable on the pole using a supplied Allen key
- Beam uses two poles to provide additional support - for example, when using monitors of various weights
- Monitors can be positioned at any location along the beam
- Quick connect bracket for easy monitor mounting (75/100mm VESA mount)
- Integrated cable manager keeps all cables hidden
- Choice of desk clamp or grommet mounts
Mounting Options
MA4000 Clamp Mount
|
MA4000 Grommet/Bolt-Through Mount
|
Model | MA4000-4-AH-C-2PBM4, MA4000-4-AH-G-2PBM4 |
Manufacturer | ISE Ergonomics |
Part Number | MA4000-4-AH-C-2PBM4, MA4000-4-AH-G-2PBM4 |
Color | Black, Silver |
Mounting Options | Desk |
Arm Reach | 24" |
Pole Length | 16.5" |
Beam Length | 52" |
Dynamic Height Adjustment | 13" |
Weight Capacity | 20 lbs per arm |
Monitor Size | Up to four 27" |
Warranty | Limited lifetime |
Number of Monitors | 4 Monitors |
