Chief XPAUB or XPAUS Height Adjustable AV Cart (55"-100"+)

Be the first to review this product
Product ID: 18526
Options
List Price: $1,999.00
Our Price: $1,439.20
You Save: $559.80
Shipping: FREE SHIPPING *
* applies to Contiguous United States
Add to Cart

Description

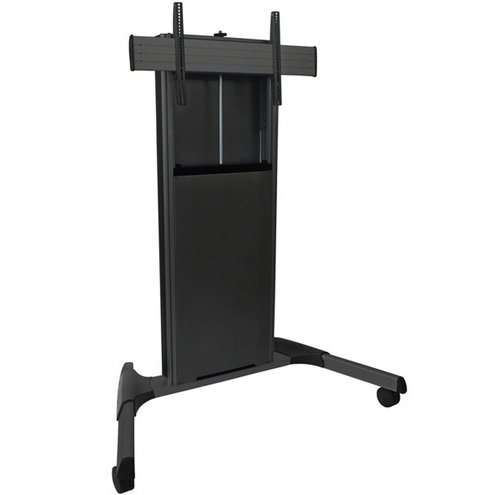

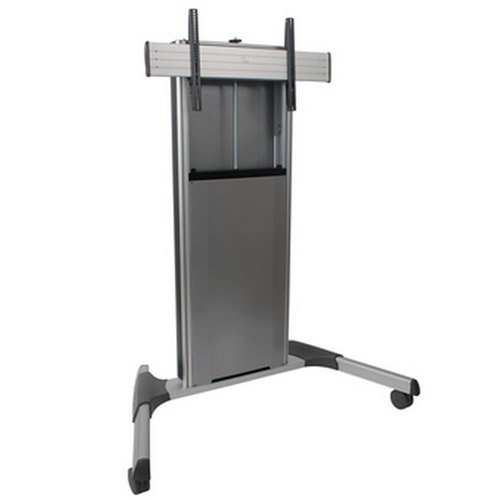

Chief XPAUB mobile Fusion AV cart incorporates rounded edges and sleek features to give the cart a softer professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via a 1/2" hex bit on a power drill without removing the screen.

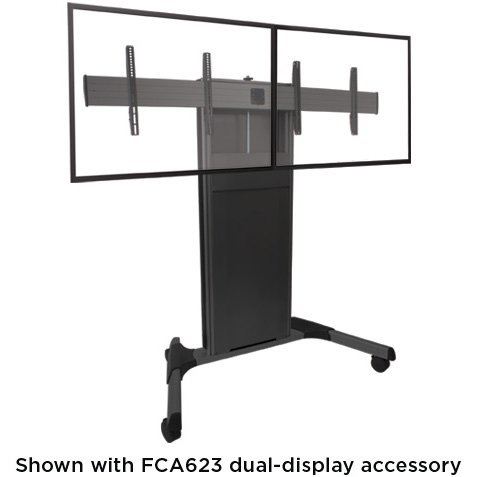

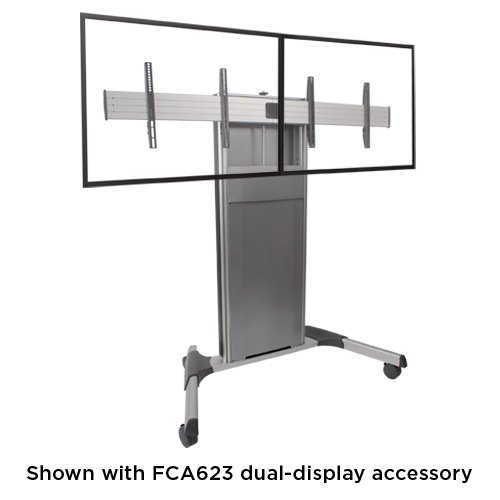

Chief XPAUS is perfect for XL and touch panel displays as well as dual monitor video conferencing using the FCA623 accessory.



Technical Drawing

Technical drawing for Chief XPAUB or XPAUS X-Large Height Adjustable Mobile AV Cart



Specifications

Center of Display to Floor/Table Range

48 - 65" (1220 - 1650 mm)

Certifications

UL Listed, TAA compliant

Color

Black and Silver

Mounting Pattern Compatibility (Universal Versions)

200 x 200 - 800 x 400 mm

Number of Monitors

1

Orientation

Landscape (Portrait screen orientation if screen is at least 34" tall and has a 400 x 400mm mounting pattern or smaller)

Overall Dimensions (H x W x D)

73.9" x 58.0" x 34.5" (1877 x 1472 x 878 mm)

Shipping Weight

185 lbs (83.91 kg)

Solution Type

Universal

Typical Screen Sizes

55" - 100"+

Weight Capacity

300 lbs (136.1 kg)



Features

  • Sleek look suitable for multiple environments including education, corporate and digital signage

  • Turn knob allows single user to easily adjust the screen height using a 1/2" hex drill bit to any height between 48 and 65 inches (122 - 165 cm)

  • Flexible cable covers for lay in access down either side of the column to connect to external AV equipment

  • Internal storage rack mountable and non-rack mountable AV components

  • Includes hardware to vertically mount 2 RUs of AV gear (inside dimension H x W x D: 38.0 x 18.4 x 4.3" (96.5 x 46.7 x 10.9 cm)

  • Removable front and back covers allow for easy cable routing to AV components stored inside the cart

  • Includes cable wrap hardware for cable management inside and outside of cart

  • Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller

  • Ships with pre-assembled heavy-duty casters (front two casters are lockable)

  • TAA compliant



Model XPAUB, XPAUS
Manufacturer Chief Mounts
Part Number XPAUB, XPAUS
UPC 841872159447
Color Black and Silver
Center of Display to Floor/Table Range 48 - 65" (1220 - 1650 mm)
Mounting Pattern 200 x 200mm - 800 x 400mm
Overall Dimensions (H x W x D) 73.9" x 58.0" x 34.5" (1877 x 1472 x 878 mm)
Shipping Weight 185.00 lbs
Monitor Size 55" - 100"+
Weight Capacity 300 lbs (136 kg)
