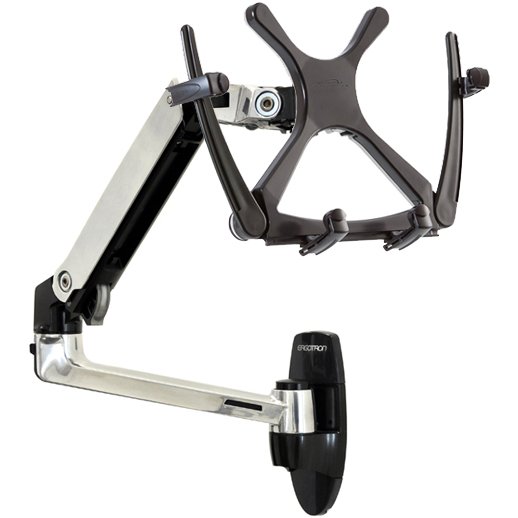

The ED-LXR-55 is a unique product. It is a wall mounting arm for a laptop with a height adjustability of 13" and horizontal reach of 25" that meets the ergonomic needs of more than nine out of ten adults. It is made up of two parts - the arm provides up, down, forward, and back flexibility and the laptop holder provides a safe resting place for the laptop. With four adjustable clasps and an open back, this holder, which attaches to the arm directly, allows for air circulation and prevents overheating of the laptop.


Technical Drawing

LX Wall Mount Arm

Technical Drawing for Ergotron 45-243-026 LX Wall Mount LCD Arm


Laptop Holder

Technical Drawing for Innovative EVO-5501 Tablet PC or Notebook Holder


Technical Specifications

LX Wall Mount Arm













5-25 lbs

2.3-11.3 kg


33 cm






Notebook Holder

Minimum Width

10.5" (26.7 cm)


9.1" (23.1 cm)

Length with Clips

  • 0.6" (1.5 cm)
  • 0.9" (2.3 cm) Minimum
  • 1.8" (4.6 cm)
  • 2.1" (5.3 cm) Maximum


Tablet PCs and Laptops


Product Information


LX Wall Mount LCD Monitor Arm (polished aluminum)


  • LX arm

  • Extension

  • Wall-mount base

Quality Tested

10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Weight Capacity

5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)

Monitor Tilts

70° up and 5° down

Improved LX Arm Features & Benefits

  • Polished aluminum construction offers greater durability and enhanced aesthetics

  • Arm folds back over the base into a compact retracted position

  • Snap-fit cap secures interface of arm to extension for greater stability

Mounting Options

Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately)

Mounting Standards

VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)


Includes theft deterrent anchor holes for cable locks

Product Weight

5.4 lbs (2.5 kg)

Shipping Dimensions

17.5"H x 7.7"W x 6.9"D (44.5 x 19.5 x 17.5 cm)

Shipping Weight

6.2 lbs (2.8 kg)


Ten (10) years



  • Increase viewing comfort - help reduce eye, back and neck strain

  • Upgrade LCD monitors and TVs with improved ergonomic adjustment

  • Patented CF motion technology provides premium ease-of-use display adjustment

  • Cable management feature routes cables under the arm, out of the way

  • Extends LCD up to 25" (64 cm); push your display out of the way when not in use

  • 13" (33 cm) height range meets the ergonomic needs of more than nine out of ten adults

  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment



  • Adapts to support both tablet PCs and laptops

  • Securely grips tablet or laptop, with quick attach and release

  • Adjustable clasps allow free access to jacks and ports

  • When used with tablet PCs, enables one-handed use of the tablet

  • Allows tablet to be used in portrait or landscape position

  • Mounting arm floats computer above desk - simply grab and move to desired position

  • Arm extends up to 18", with vertical adjustment of +/- 5" from horizontal

  • Integrated cable management keeps cords off the desk

  • Mount clamps to desk or through grommet with integrated handle (may also combine with slatwall, slat rail or wall mount)



Model ED-LXR-55
Manufacturer Ergodirect
Part Number ED-LXR-55
Color Arm: Polished aluminum, Laptop: Black
Weight Capacity 5-25 lbs
Vertical Range 13" (33 cm)
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Horizontal Range 25"
Monitor Arm Types Laptop/Notebook
Mounting Options Wall
