$1,040.00

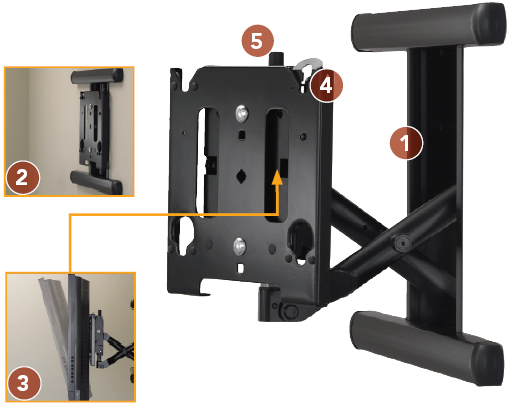

Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension

In-Wall Mount for 30" to 50" Displays

Product ID 16516
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension
Chief MIWRFUB Medium In-Wall Swing Arm Mount - 10" Extension

Description

Chief MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.

  • Get perfect TV centering without cutting studs

  • Ultra low-profile mounting solution



Technical Drawing

Technical Drawing for Chief MIWRFUB Universal In-Wall Swing Arm Mount for 30" to 50 " Displays



Specifications

Color

Black

Lateral Shift

5" (127.mm)

Manual Height Adjustment

1"

Maximum Extension

9.9" (251.5mm)

Minimum Depth

1.7" (43.2mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm - 709 x 431mm

Notes

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

17.2" x 20.3" x 5.6" (437 x 517 x 142mm)

Pivot (numerical value)

+/- 37.5° (depending on screen width)

Post-Installation Leveling (Roll)

Yes

Shipping Weight

49.50 lbs

Solution Type

Universal

Tilt

+ 2°, - 15°

Typical Screen Sizes

30 - 55"

Wall Stud Compatibility (inches)

16"

Weight Capacity

125 lbs (56.7kg)



Features

  • Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
  • Low-profile design hides the mount behind the display
  • Centris Technology provides smooth, fingertip tilt
  • Provides post-installation height adjustment
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management
  • Ships as complete in-wall swing arm - zero assembly required
Model MIWRFUB
Manufacturer Chief Mounts
Part Number MIWRFUB
UPC 841872110646
Mounting Options In-Wall
Color Black
Lateral Shift 5" (127.mm)
Manual Height Adjustment 1"
Maximum Extension 9.9" (251.5mm)
Minimum Depth 1.7" (43.2mm)
Mounting Pattern 100 x 100mm - 709 x 431mm
Overall Dimensions 17.2" x 20.3" x 5.6" (437 x 517 x 142mm)
Pivot +/- 37.5° (depending on screen width)
Shipping Weight 49.50 lbs
Tilt + 2, - 15 degree
Monitor Size 30 - 55"
Wall Stud 16"
Weight Capacity 125 lbs (56.7kg)

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
