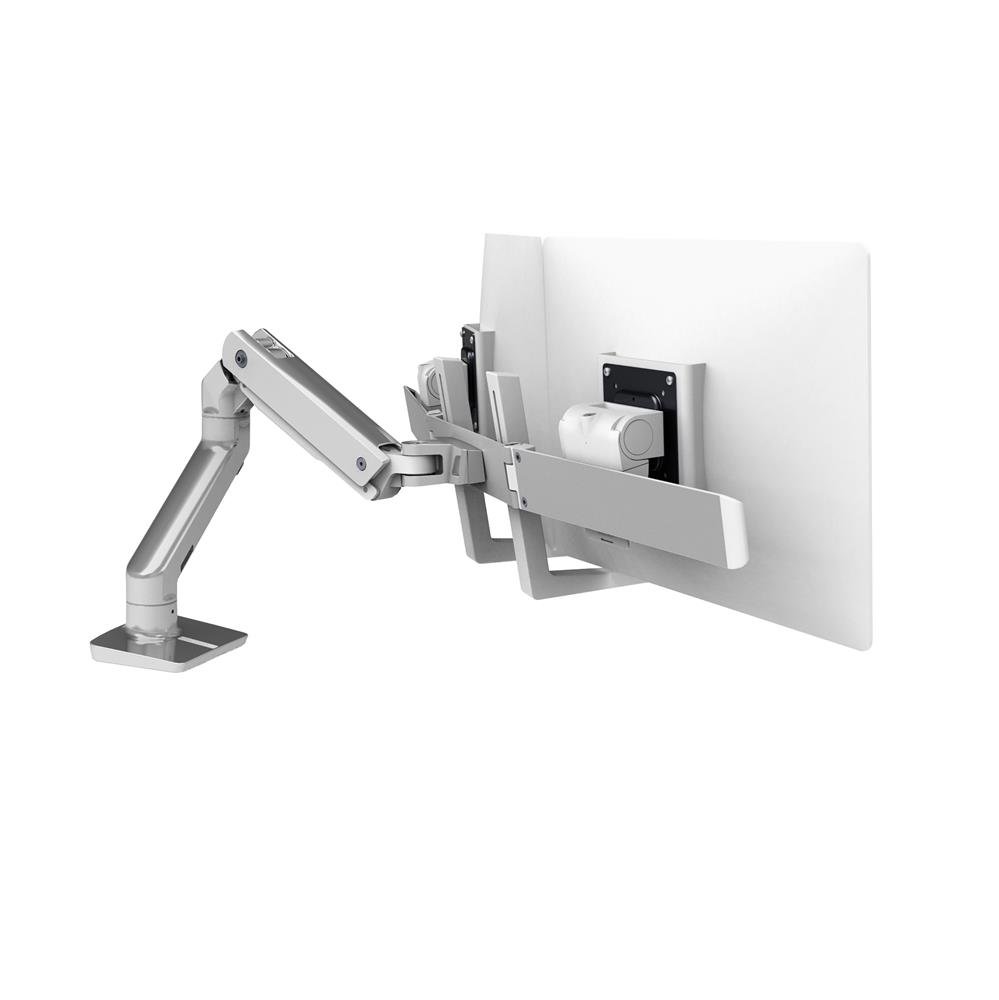

Returned Product: Ergotron 45-476-026 HX Desk Mount Dual Monitor Arm (polished aluminum)
Description
Mount two heavy monitors on Ergotron 45-476-026 HX Desk Mount arm up
to 32" in size and 17.5 lbs in weight and free up valuable desk space.
This arm's 11.5 vertical adjustment and 23.9" reach not only allows you
to position your display to suit your preference but also lets you fold
the arm in space constrained areas. Both the monitors are installed on
the hinged bow with pivots letting monitors pan and tilt independently
so that working with colleagues becomes easier.
Higher weight capacity of this arm makes it suitable for healthcare,
hospital diagnostic/treatment rooms like radiation, graphic designing
and surveillance needs that demand heavy monitors. Modular ability to
increase from dual monitor setup to triple monitor setup (with a HX
Triple Bow Kit sold separately) is a big attraction for these industries
too. Available in white and polished aluminum, this arm looks slick and
chic and comes with a ten year warranty.
The HX Dual Monitor Arm is the perfect accessory to add
flexibility and superior ergonomics to your monitor or TV. The sleek new
post design combined with the dual hinge bow works with two 32" monitors
and includes a handle for easy positioning. Extension/retraction motion
and integrated height adjustment capability promote user comfort.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 32" |
5 - 17.5 lbs 2.3 - 7.9 kg |
11.5" 29.2 cm |
75° | 180° | 360° | MIS-D |
Product Information
| Part Number | 45-476-026 |
| Description | HX Desk Dual Monitor Arm (polished aluminum) |
| Includes |
|
| Clamp Base | Clamp base ensures greater stability of display and arm |
| Desk Clamp | Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick |
| Grommet Mount | Grommet Mount (included) attaches through surface holes |
| Arm | Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas |
| Portrait or Landscape | Portrait/landscape rotation with lockout |
| Cable Management | Streamline cable management that routes cables under arm and within extension |
| Mounting Standards | VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm |
| Weight Capacity | Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg) |
| Monitor | Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base |
| Hinge Bow | Pivots 40° inward and 90° outward |
| Tilt Range | 70° backward, 5° forward |
| Pivots | Feature quick install and release and feature effortless portrait to landscape 6° pan and tilt |
| Extended Reach | Up to 24.5" (60 cm) extended reach |
| Vertical Height Adjustment | 11.5" (29.2 cm) vertical height adjustment |
| Shipping Dimensions | 16.0" x 18.8" x 7.5" (48 x 41 x 19 cm) |
| Shipping Weight | 26.9 lbs (12.2 kg) |
| Warranty | Ten (10) years |
Benefits
Increases viewing comfort: Helps reduce eye, back and neck strain
Sleek new post design
The hinged bow allows monitors to pan from left to right independently with ease, ideal for sharing screens and optimal monitor alignment
Additionally, the hinged bow optimizes the viewing range for enhanced ergonomic comfort
Independent, quick release monitor pivots with effortless rotation, pan and tilt for custom positioning of each monitor
Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
Patented CF motion technology provides premium ease-of-use display adjustment
Cable management feature routes cables tightly under the arm and through the extension, out of the way
Eliminates scrolling: Rotate screens for portrait viewing of photos and documents
Folding arm frees up space in constrained areas
Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Product Options/Accessories
| Model | 45-476-026 |
| Manufacturer | Ergotron |
| Part Number | 45-476-026 |
| UPC | 698833060966 |
