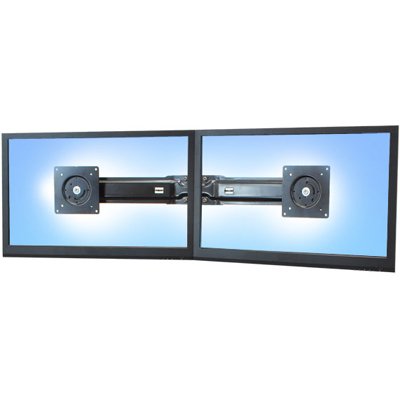

Open box Ergotron 97-783 Dual Monitor and Handle Kit

Product ID 19708
HIGHLIGHTS

Highlights

  • Open box: Never Installed
    • Product quality: Never used; Re-certified
    • Box quality: Good
  • A dual monitor and handle kit to convert a single monitor workstation to a dual monitor workstation
  • For screen sizes 17" to 24"
  • Outside width of monitors: 14" to 24.5"
  • Total weight capacity: Holds monitor/monitors weighing up to 36 lbs
  • Weight Capacity: this dual monitor kit weighs 6 lbs. Please note that it reduces the total weight capacity of the workstation by 6 lbs.

Description

Ergotron 97-783 converts a single-monitor mount so it holds two displays, or increase the size of compatible displays for your current dual-monitor solution. A handle is included to make repositioning of the screens easy.

Technical Drawing

Technical Drawing for Ergotron 97-783 Dual Monitor and Handle Kit

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
17"-26"

Up to 36 lbs

16.4 kg

- - - 360° MIS-D

Product Information

Part Number 97-783
Description Dual Monitor & Handle Kit (black)
Includes
  • Bow
  • Two mounting brackets
  • Handle
  • Mounting hardware
Display Size Outside width of monitor should be 14" to 24.5" (35 to 62 cm). This range accommodates most 17" to 24" displays as well as some displays as large as 26". If the outside width is less than 14" (35 cm), a small gap will be present between the two displays. Displays with an outside width greater than 24.5" (62 cm) are not compatible.
Weight Capacity Combined weight of displays can be no more than 36 lbs (16.4 kg). This kit adds an additional 6 lbs (2.7 kg) to your mounting solution. Your mounting solution’s weight capacity must be reduced by 6 lbs (2.7 kg) when using standard monitors less than or equal to 2.5" (64 mm) thick. Additional reduction may be required if monitors are greater than 2.5" (64 mm) thick. Exception: When used as a replacement bow on WorkFit Dual products, there is no reduction in capacity
Attaches To mounts with four-hole interface of 50 x 50 mm or 100 x 100 mm
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Installed & Used This kit can be installed and used without the included handle
Product Dimensions 4"H x 29.1"W x 1.5"D (10 x 74 x 38 cm)
Shipping Dimensions 31" x 13.5" x 7" (79 x 34 x 17.5 cm)
Shipping Weight 8.4 lbs (3.8 kg)
Warranty Five (5) years

Benefits

  • Perfect dual-mounting solution for monitors with screen sizes of 17" to 24"
  • Attaches to wide variety of mounts using a 50 x 50 mm or 100 x 100 mm hole pattern
  • Robust design ensures many years of service
  • Conceal and organize cables: Display cables can be neatly routed behind displays

Product Options/Accessories

Model 97-783
Manufacturer Ergotron
Part Number 97-783
UPC 698833039566
