Dimensional Diagram for Peerless PRG-EXB Projector Ceiling or Wall Mount

PRG Series Adjustable Projector Ceiling or Wall Mount:

Peerless has packaged flexibility and ease together in one box with these ceiling/wall mounting kits, which enable the installation of a projector from either the ceiling or the wall. This all-in-one kit includes the industry’s first precision gear projector mount that delivers precision image alignment with a simple turn of a knob. These comprehensive projector mounting kits also include an adjustable length column that provides ideal height positioning for the perfect projector installation. Concealed within the column is a cable-management channel, assuring a clean and clutter-free appearance.

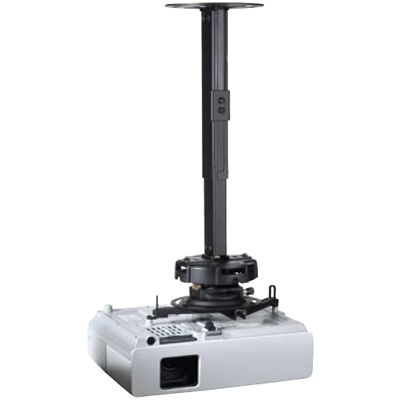

PRG EXB Description:

This kit combines the precision adjustment capabilities of the PRG projector mount line with a convenient variable-adjustable square column extension kit. Each kit includes the ceiling/mount, extension column and mounting hardware for either ceiling or wall applications. You also get color-coordinated wire slot covers for neat and clean installations.

Features:

• Continuous channel design for uninterrupted drop length or wall extension adjustments

• Three adjustable extension lengths:

  PRG-EXA models: 8.7"-12.8" (ceiling), 9.72" - 13.86" (wall),

  PRG-EXB models: 12.68"-20.67" (ceiling), 13.74"-21.73" (wall),

  PRG-EXC models: 19.13"-32.91" (ceiling only)

• Safety catch designed into extension to ensure user and equipment safety

• Internal cable management channels for clean, clutter-free appearance

• Mounts to ceiling or wall with included wall mount interface (PRG-EXA and PRG-EXB models only. PRG-EXC is not wall mountable due to its extensive reach)

• Includes PRG Series projector mount with Precision Gear Alignment ImageLock for precise image alignment: Tilt ±20° Swivel 360° (±15° at projector mount) Roll ±10°

• Two adjustment knobs control tilt and roll image alignment. Engage using a Phillips screwdriver or extend knobs to align by hand

• Includes Spider Universal Adapter Plate which extends from 7.1" to 16.55" to fit most projectors

• Works with standard 4" loops for use with round, square, rectangular or I-Beam truss up to 3" wide x 3 1/2" wide
