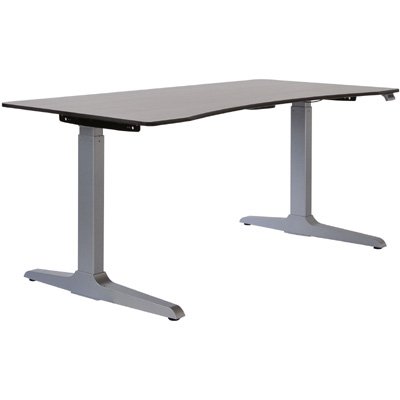

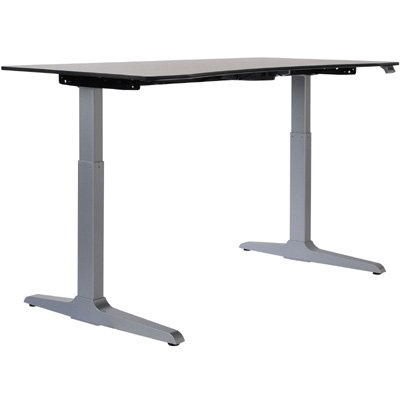

WorkRite Sierra HXL Electric Rectangular Concave Front 2 Leg Height Adjustable Workcenter

Description of Workrite Sierra HXL Desk:

Outfitting your office with sit-to-stand workcenters is now within reach. Recent research has documented the dramatic positive health benefits of alternating between standing and seated positions throughout the workday. Sierra HXL is Workrite's answer to companies who are seeking an entry level sit to stand workcenter that can provide your employees with the ability to reduce stress, improve blood flow and alertness and maximize personal comfort.

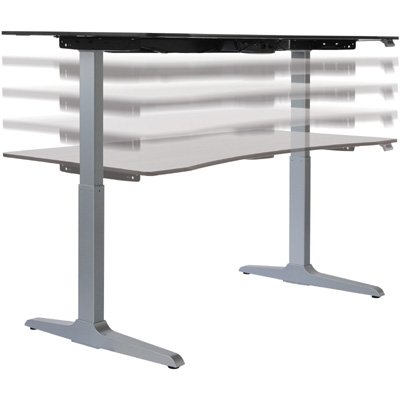

Moving to a more comfortable position is just a fingertip adjustment away. The HXL motor quickly and quietly repositions the worksurface to just the right height. All your tools move with you as the HXL can support up to 225 lbs of material on the worksurface. The HXL features a sturdy open frame design with no visible crossbar so you have the maximum open space below desk for your ped, processor or personal property.

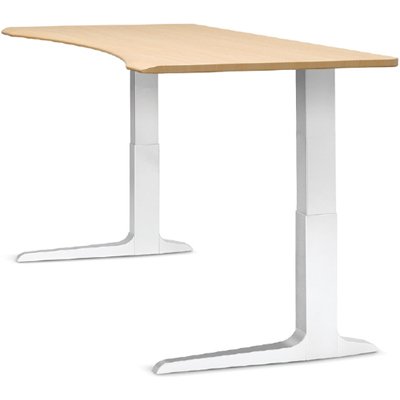

For an even more stylish configuration, top off your workcenter with a Silhouette top. Whisper thin yet sturdy as a redwood, Silhouette worksurfaces are available in 8 colors and 3 edge trim options.

Features of Workrite Sierra HXL Table:

• Hidden crossbar design provides optimum knee clearance and under worksurface access.

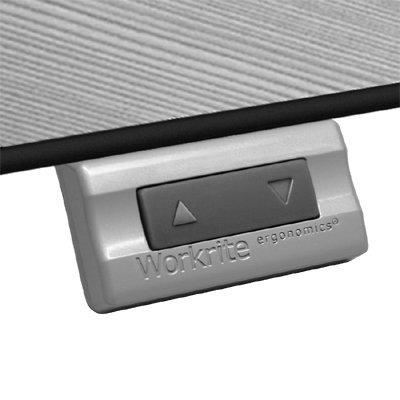

• Electric control with up/down switch.

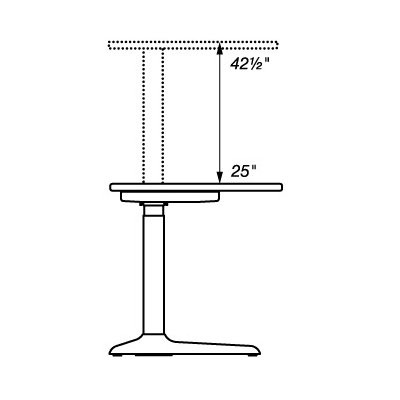

• Height range: 25"– 42½" at 1.6" per second.

• Lifting capacity: 2 leg: 225 lbs

• Available in 24 worksurface styles in over 60 laminate options.

• Available in Sierra silver or charcoal finish.

• Base only or full workcenter.

• Compatible with full line of tool bar and rally system accessories.

Environmental Considerations:

• LEED credit eligibility
• Materials & Resources, MR Credit 4.2.
• Recycled content: 20% (post-consumer + ½ pre-consumer)(2 points).
• Indoor Environmental Quality, EQ Credits 8.1–8.3.
• Day light & views 75–90% of spaces (1 point).
• Use of Workrite tool bar and rail system in lieu of tall panel dividers.
• Innovation & Design, ID Credits 1.1–1.4.
• Implementation of comprehensive ergonomic program (1-4 points).
• Standby power is 0.1 W.
• Values shown for LEED range are for laminate versions; all base-only models contain at least 25% LEED recycled content.
• Silhouette worksurface made from GREENGUARD certified material.

Option 1 : Choose your Surface Dimensions

Model SEHXL4830C : 48" W x 30" D Surface Dimensions

Model SEHXL6030C : 60" W x 30" D Surface Dimensions

Model SEHXL7230C : 72" W x 30" D Surface Dimensions

Option 2 : Switch Position

Option 3 : Choose your Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Sierra Silver (S)

Charcoal (C)

Option 4 : Choose your Laminate Top Colors

Classic Collection Laminates:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Folkstone Gray

SG241

Opti Gray

SG213

Black

SE101

Ice Fishin

WF181

White Spectrum

AW785

Gateway To the Future AV100

Cavalcade South

AT650

Tropical Gateway

AV110

Summer Heat Wave AO360

IL Palio Papel

AV981

Coriander Fiber

AT981

Leave Likatre

WP120

Looks Likatre

WP110

Appears Likatre

WP115

Seems Likatre

WP125

Hardrock Maple

WM791

Pearwood

WX031

Shaker Cherry

WC521

Oiled Cherry

WC421

Jewel Mahagony

WY351

Black Ashwood

SZ101

Designer Collection Laminates:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Spa White

S740T

Almond

ST655

Putty Gray

SG209

Taupe

ST606

Sage

SV720

Cubicle Papel

AG561

Gray Santos

AG291

Negotiating In Geneva PFA60

Beige Crepe

AT251

Opti gray Crepe

AG341

Vanilla Fiber

AW871

Wheat Fiber

AT991

Oatmeal Fiber

AT101

Thyme Fiber

AV721

Shipping Seattle Java PFA48

Pepper Fiber

AG581

Manila Linen

AT231

Gridlock In LA

PFA51

Travelin Light

AT680

Gold Pannin

AT710

Passin Through

AV250

Blue Sandstone

AB191

Caramel Crepe

AT111

Amber Raffia II

AO355

Brick by Brick

AR350

Anigre

WX041

Millwork Cherry

WC431

Honey Maple

WM951

Yorkshire Cherry

WC411

Moroccan Fresco

AT121

Silhouette Collection Laminates:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Folkstone Gray with Black Core SG241

White Spectrum with Black Core AW785

Hardrock Maple with Brown Core WM791

Looks Likatre with Black Core WP110

Appears Likatre with Brown Core WP115

Seems Likatre with Brown Core WP125

Oiled Cherry with Brown Core WC421

Black with Black Core

SE101

Option 5 : Choose your Edge Treatments

Edge Treatments for Laminated Surfaces:

Standard

Colors 01 - 05

Wedge

Black only - 06

Ripple

Black only - 07

Standard Edge Colors:

Colors and patterns are representative only. Actual colors and patterns may vary slightly.

Folkstone - 01

Black - 02

Opti Gray - 03

Almond - 04

HW Brown - 05

Soft White - 53

Edge Treatments for Silhouette Surfaces:

Ergo - S1

Block - S2

Craft - S3

Option 6 : Choose your Casters

Sierra Locking Casters

Features:

• Low profile locking casters 2" W x 1.5" H.

• Casters raise work centers by 1" versus installed adjustable glides.

• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters.

• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters.

The Following casters are available:

• 95234: 4 casters for 2 leg Tables

• 95235: 5 casters for 3 leg Tables

Option 7 : Pinch Points

Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1". For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Option 8 : HX Spacer

HX Accessory Spacers

Attach the spacer to the leg motor with the #M6x12 mm Button Cap Screws

Secure the support angle to the table top with the #12x3/4" Pan Head Hex Sheet Metal Screws

Features:

• Provides 3" or 5" of additional mounting depth under worksurface for accessories including keyboard platforms.

• 3" spacer can mount to either 24"D or 30"D workcenters; 5" spacer can only be used on 30"D workcenters.

• For 3 leg dual depth workcenters, order spacer for narrowest side.

• Quantity 2 spacers provided.

The following Spacers are available:

• SHX-24SPCR: 3" depth spacer, weight 4 lbs

• SHX-30SPCR: 5" depth spacer, weight 7 lbs

Workcenter Ordering Information

1. Classic Collection Laminates: 10 working days for quantity 20 or less

Silhouette Collection Laminates: 10 working days for quantity 10 or less

Designer Collection Laminates: 20 working days for quantity 10 or less.

Note: Dimensions provided above are nominal. Actual widths of all tables are reduced by 2" and depths by 1".

For example, a nominal 42" × 42" × 24" corner table has an actual dimension of 40" × 40" × 23", and a 72" × 30" rectangular table has an actual dimension of 70" × 29".

Modular, high strength steel frame mounts to worksurface; exceeds ergonomic knee clearance requirements.

All tables have adjustable glides providing ½" adjustment. Table surfaces are predrilled with mounting location for bases. Silhouette surfaces include screws to mount accessory items under the worksurface.

Special drill bit required, can be ordered separately.

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.

Sierra HXL Electric legs rated at 175 lbs maximum force per leg.

Control box powered by 120V / 60Hz. May draw 2.9 amps maximum under full load. Standby power is 0.1W. 10' power cord with IEC type connection at control box provided.

Cable management spool provided to manage excess control cables; optional cable mount accessories are available.
